Transmission Fluid Temperature Sensor Removal and Installation: Removal

Disconnect negative cable at battery.
Disconnect transmission fluid temperature sensor connector (1).

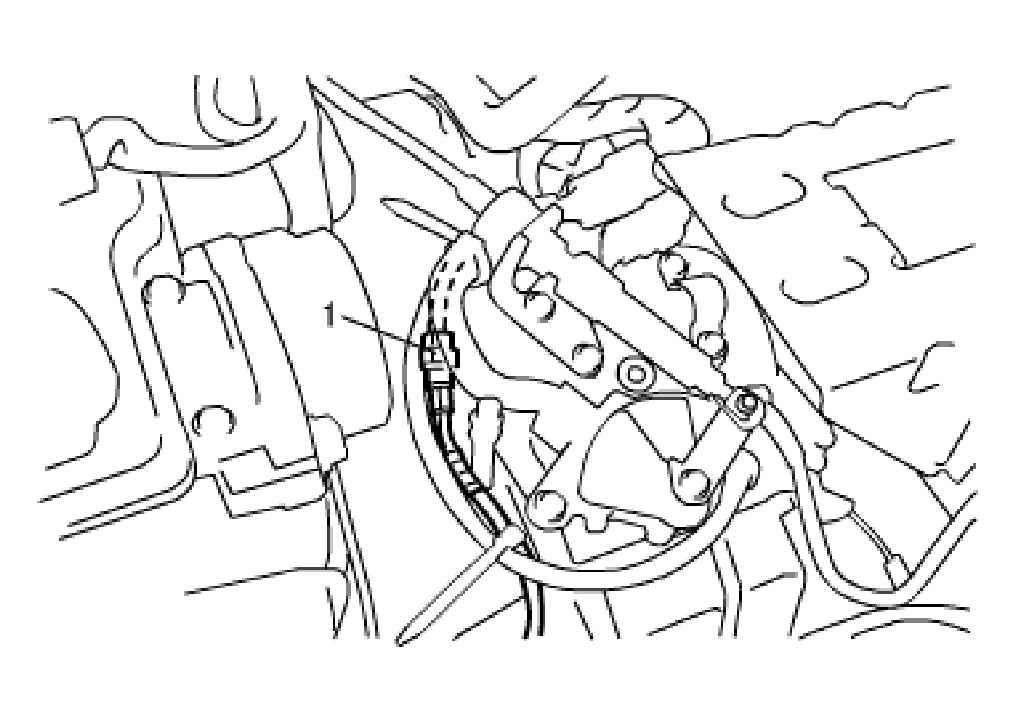

Fig 1: Disconnecting Transmission Fluid Temperature Sensor Connector
Courtesy of SUZUKI OF AMERICA CORP.
Lift up vehicle.
With engine is cool, drain A/T fluid referring to A/T FLUID CHANGE .
Remove transmission fluid temperature sensor (1) with O-ring.

Fig 2: Removing Transmission Fluid Temperature Sensor
Courtesy of SUZUKI OF AMERICA CORP.
