Transmission Fluid Temperature Sensor Removal and Installation: Installation

Reference: TRANSMISSION FLUID TEMPERATURE SENSOR INSPECTION

1. Apply A/T fluid to new O-ring.
2. Install new O-ring to transmission fluid temperature sensor.
3. Install transmission fluid temperature sensor (1), and tighten A/T fluid temperature sensor to specified torque.

   Tightening torque

   Transmission fluid temperature sensor: 10 N.m (1.0 kg-m, 7.5 lb-ft)

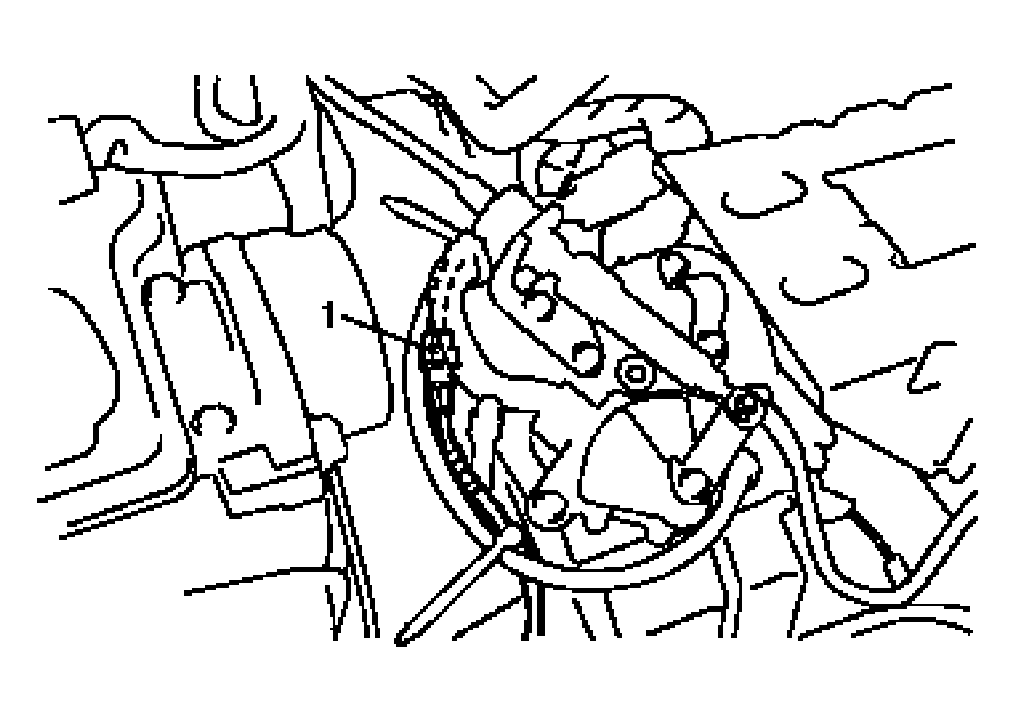

   Fig 1: Installing Transmission Fluid Temperature Sensor

   Courtesy of SUZUKI OF AMERICA CORP.
4. Pour A/T fluid referring to A/T FLUID CHANGE .
5. Connect transmission fluid temperature sensor connector (1).

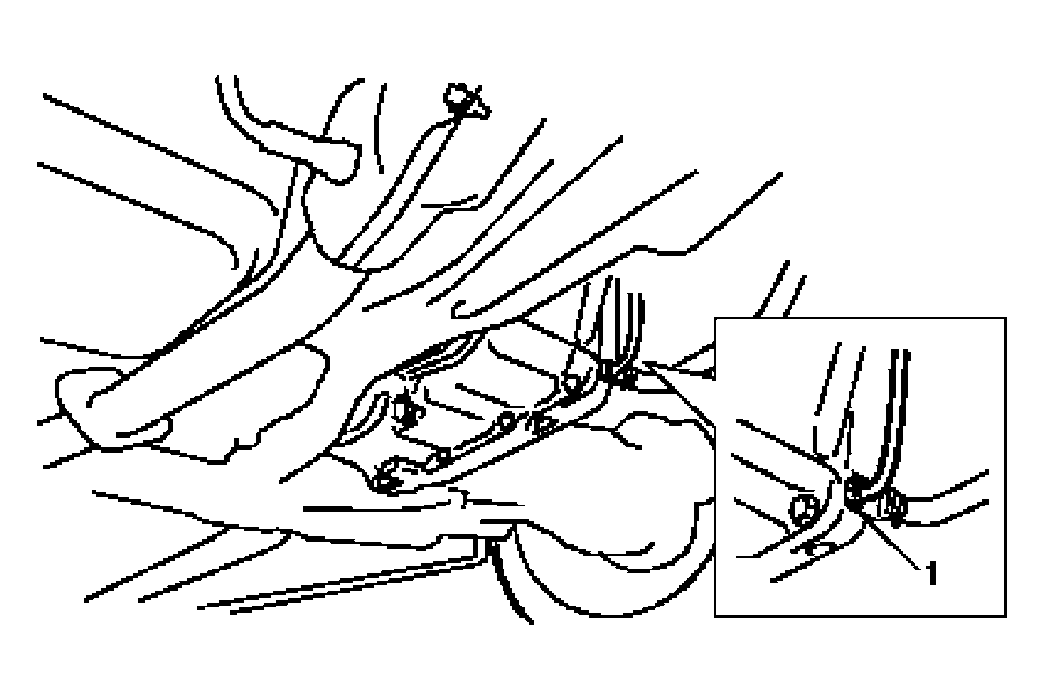

   Fig 2: Connecting Transmission Fluid Temperature Sensor Connector

   Courtesy of SUZUKI OF AMERICA CORP.
6. Connect negative cable.
7. Verify that there is no A/T fluid leakage.
