Transaxle Rear Cover Disassembly and Reassembly: Disassembly

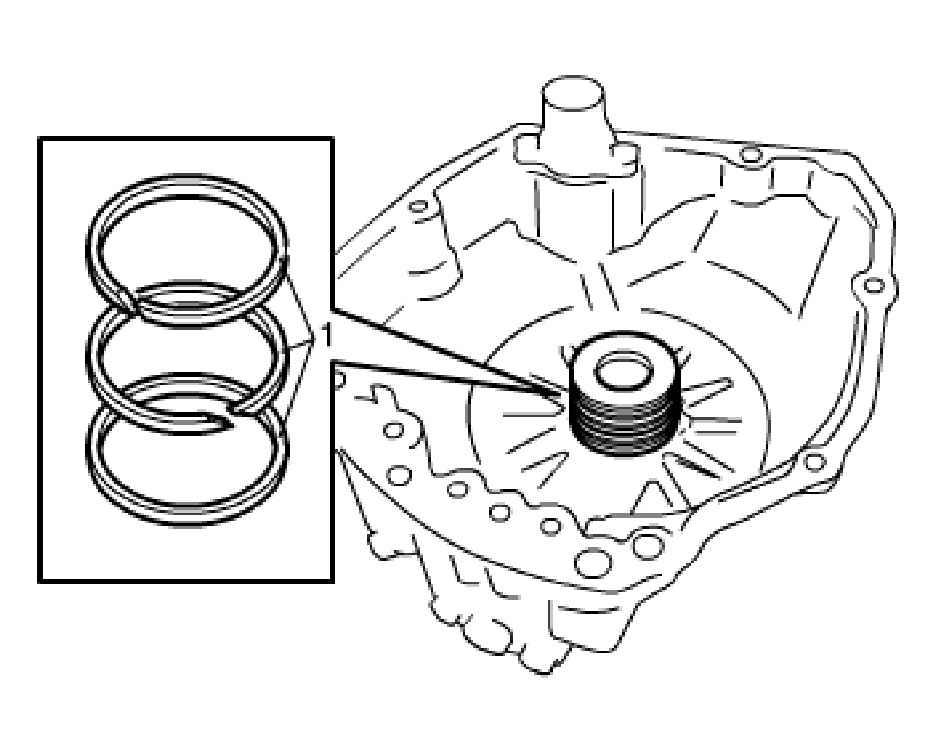

  1. Remove oil seal rings (1).
    Fig 1: Removing Oil Seal Rings
    G04592067Courtesy of SUZUKI OF AMERICA CORP.

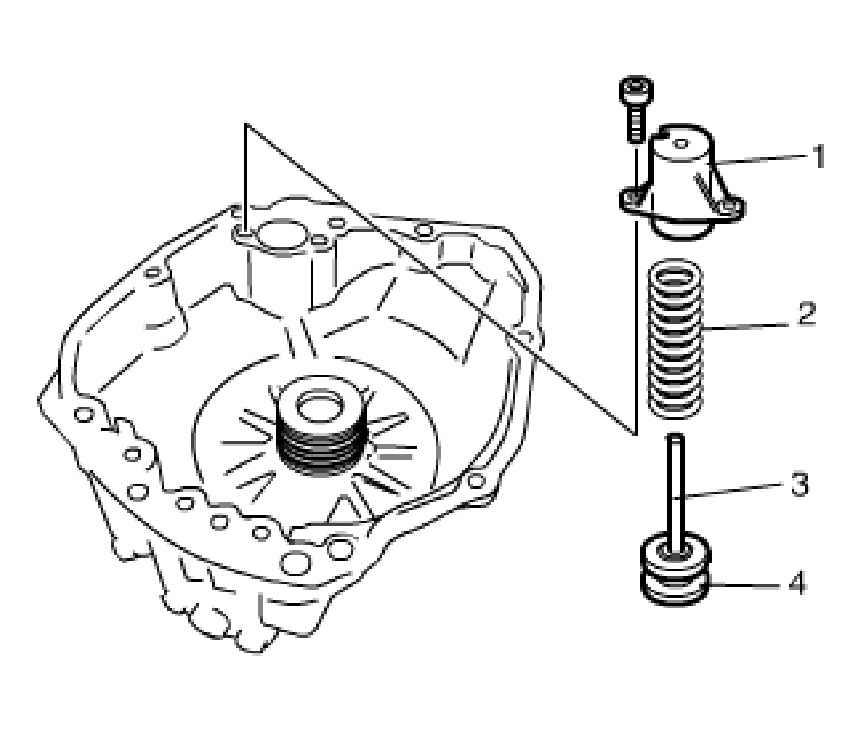

  2. Remove forward clutch accumulator (1), forward clutch accumulator spring (2) and forward clutch accumulator piston (3) cover, by removing 2 bolts.
  3. Remove O-ring (4) from forward clutch accumulator piston.
    Fig 2: Removing Forward Clutch Accumulator, Spring And Piston Cover
    G04592068Courtesy of SUZUKI OF AMERICA CORP.
