Planetary Gear Disassembly and Reassembly: Reassembly

Reference: PLANETARY GEAR INSPECTION

Rear planetary ring gear assembly

1. Install rear planetary ring gear flange (1) to rear planetary ring gear (2).
2. Install snap ring (3).

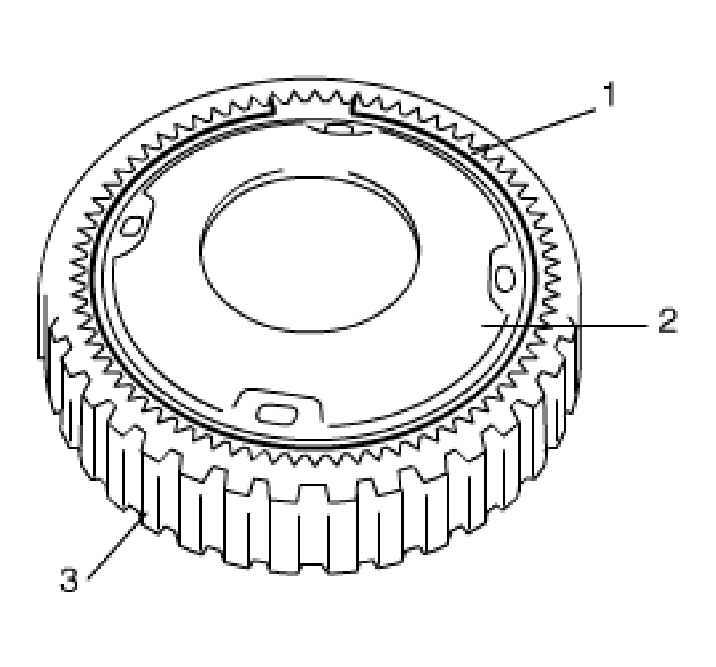

   Fig 1: Installing Rear Planetary Ring Gear Flange

   Courtesy of SUZUKI OF AMERICA CORP.
