Output Shaft Speed Sensor Removal and Installation: Removal

  1. Disconnect negative cable at battery.
  2. Disconnect output shaft speed sensor connector (2).
  3. Remove output shaft speed sensor (1) by removing its bolt.

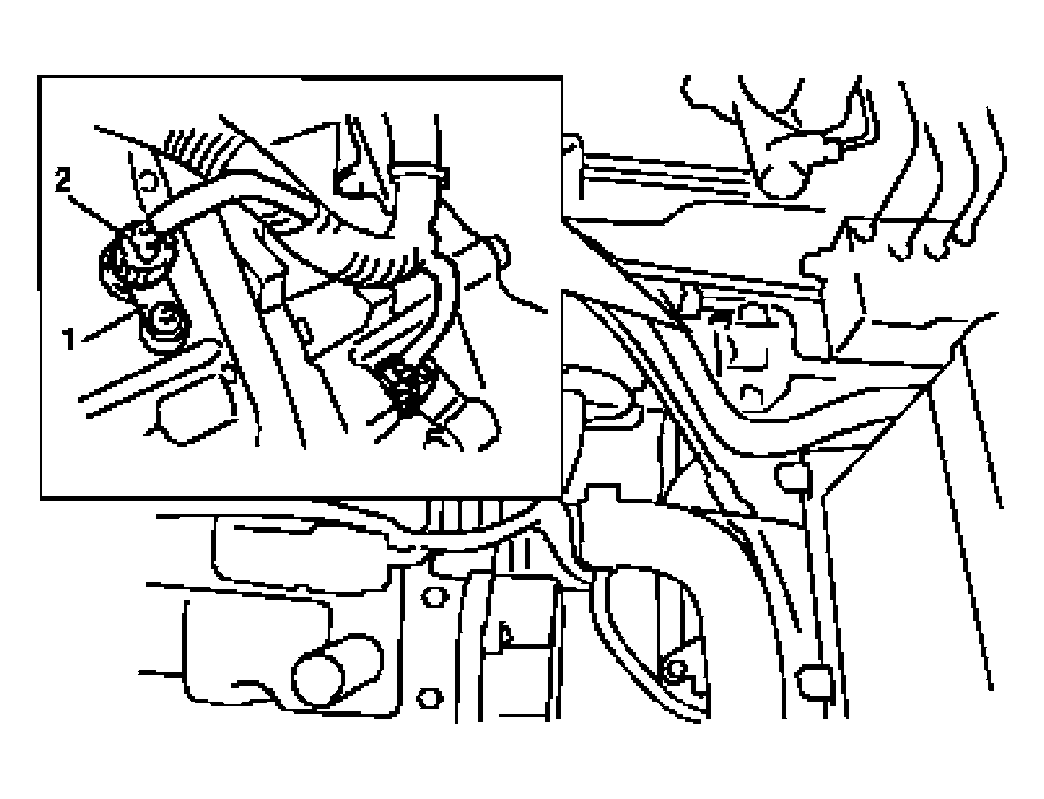

    Fig 1: Removing Output Shaft Speed Sensor
    G04591875Courtesy of SUZUKI OF AMERICA CORP.
