One-Way No. 1 Clutch Operation Check

Reference: AUTOMATIC TRANSAXLE UNIT DISASSEMBLY

Reference: AUTOMATIC TRANSAXLE UNIT ASSEMBLY

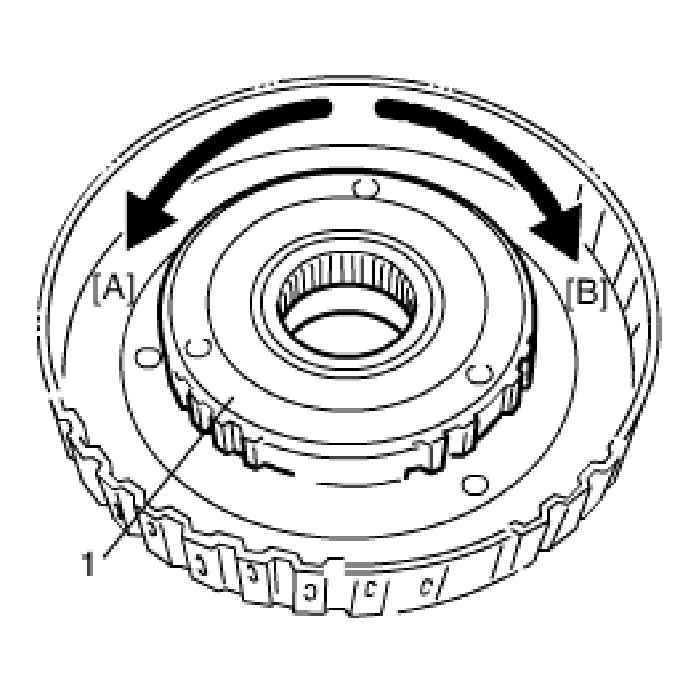

1. Check that one-way No. 1 clutch (1) turns freely when turned counterclockwise [A] and locks when turned clockwise [B].
   Fig 1: Checking One-Way No. 1 Clutch Operation

   Courtesy of SUZUKI OF AMERICA CORP.
