Input Shaft Speed Sensor Removal and Installation: Removal

  1. Disconnect negative cable at battery.
  2. Disconnect input shaft speed sensor connector (2).
  3. Remove input shaft speed sensor (1) by removing its bolt.

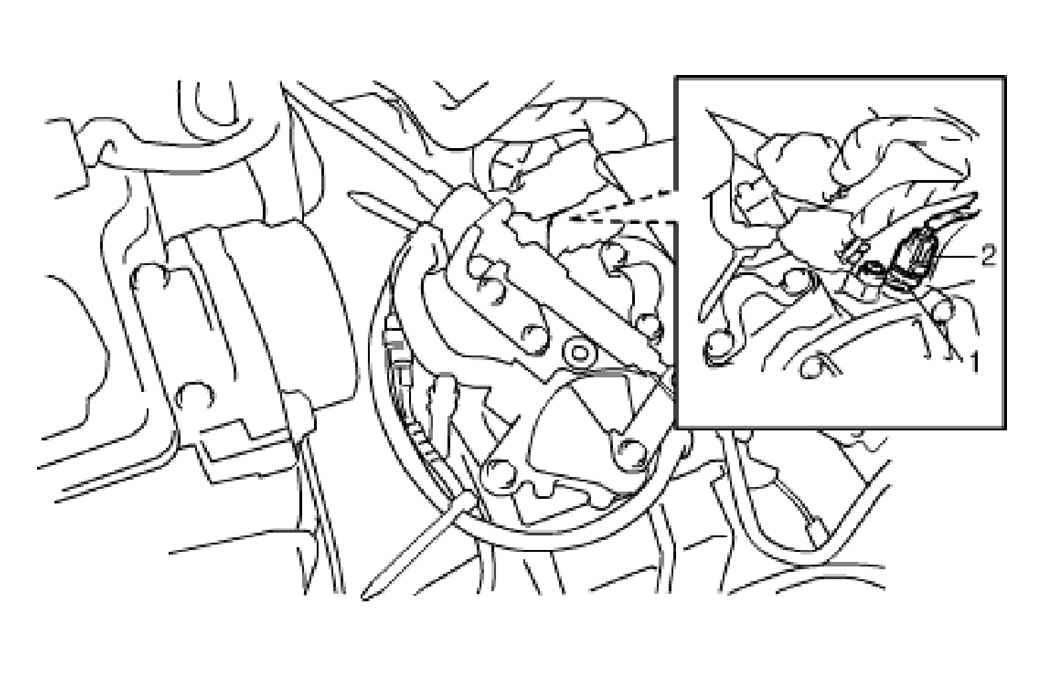

    Fig 1: Removing Input Shaft Speed Sensor
    G04591878Courtesy of SUZUKI OF AMERICA CORP.
