Differential Side Oil Seal Replacement
- Lift up vehicle and drain A/T fluid.
- Remove drive shaft joints from differential gear of transaxle. Refer to FRONT DRIVE SHAFT ASSEMBLY REMOVAL AND INSTALLATION: FRONT
for procedure to disconnect drive shaft joints.
For differential side oil seal removal, it is not necessary to remove drive shafts from steering knuckle.
- Remove differential side oil seal by using screw driver or the like.
- Apply grease to new differential side oil seal lip.
: Grease 99000-25030

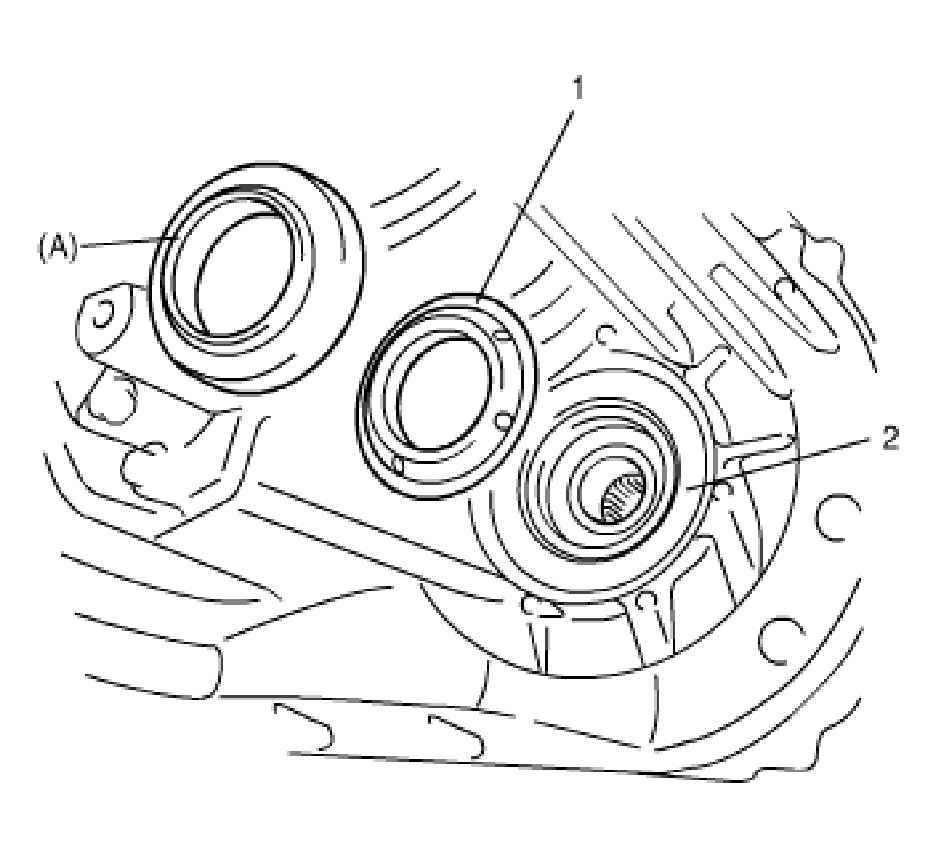

- Press-fit new differential side oil seal (1) until transaxle case end face (2) is flush with oil seal end, using special tool.
Special Tool
(A): 09924-07730
- Install drive shaft referring to FRONT DRIVE SHAFT ASSEMBLY REMOVAL AND INSTALLATION .
- Pour A/T fluid referring to A/T FLUID CHANGE .
