Differential Gear Thrust Play

Hold differential assembly with soft jawed vice and set special tools as shown.
Special Tool
1. 09900-20607
2. 09900-20701

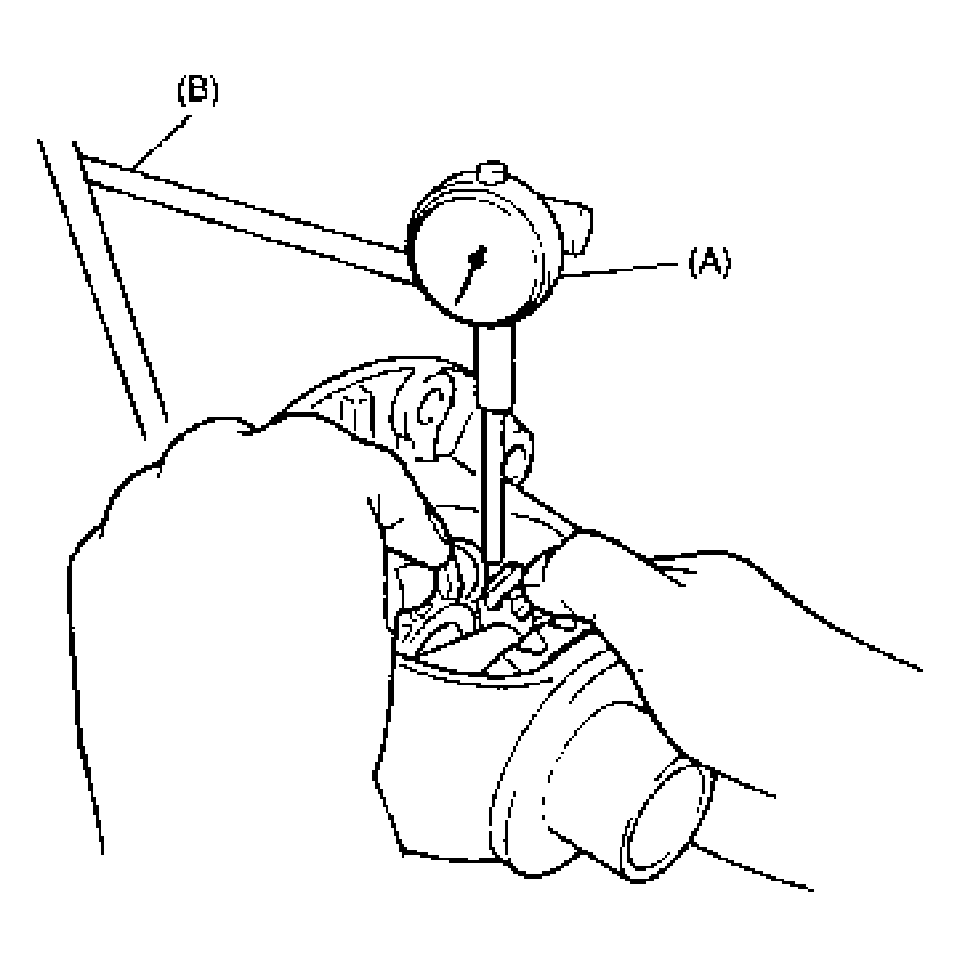

  Fig 1: Measuring Differential Gear Thrust Play
  Courtesy of SUZUKI OF AMERICA CORP.
Measure differential gear thrust play. If thrust play exceeds specified value, replace differential assembly.
Differential gear thrust play

Standard: 0.05 - 0.20 mm (0.0024 - 0.0087 in.)
