Differential Assembly Starting Torque

Install differential assembly (1) to transaxle case and tighten case bolts to specified torque.
Tightening torque

Transaxle housing bolts: 30 N.m (3.0 kg-m, 22 lb-ft)

Measure differential assembly starting torque, using special tool. If starting torque exceeds specified value, replace shim in the following so as starting torque to be in standard value.

Starting torque of differential assembly

0.7 - 1.2 N.m (0.07 - 0.12 kgf-m, 0.506 - 0.868 lb-ft)

Special Tool

09928-06020

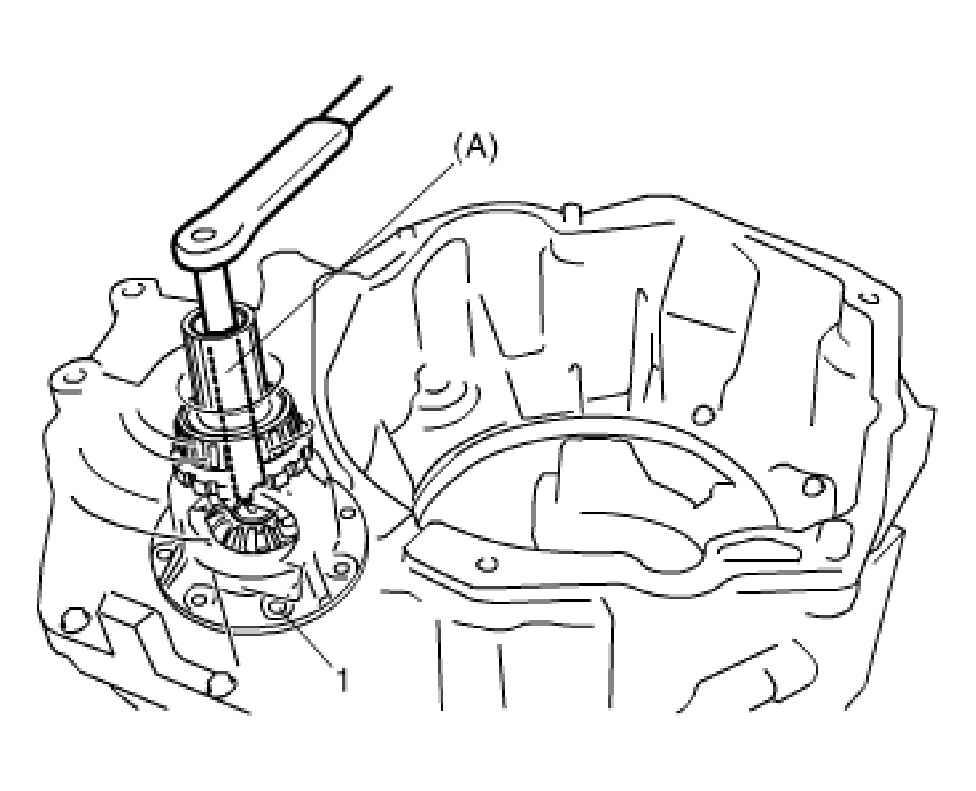

Fig 1: Measuring Starting Torque Of Differential Assembly
Courtesy of SUZUKI OF AMERICA CORP.

Available differential side bearing shim thickness (Thickness: Identification)

BEARING SHIM THICKNESS SPECIFICATIONS

1.00 mm (0.039 in.): 21	1.48 mm (0.058 in.): 33
1.05 mm (0.041 in.): 22	1.51 mm (0.059 in.): 34
1.10 mm (0.043 in.): 23	1.54 mm (0.060 in.): 35
1.15 mm (0.045 in.): 24	1.57 mm (0.061 in.): 36
1.20 mm (0.047 in.): 25	1.60 mm (0.062 in.): 37
1.25 mm (0.049 in.): 26	1.65 mm (0.064 in.): 38
1.30 mm (0.051 in.): 27	1.70 mm (0.066 in.): 39
1.33 mm (0.052 in.): 28	1.75 mm (0.068 in.): 40
1.36 mm (0.053 in.): 29	1.80 mm (0.070 in.): 41
1.39 mm (0.054 in.): 30	1.85 mm (0.072 in.): 42
1.42 mm (0.055 in.): 31	1.90 mm (0.074 in.): 43
1.45 mm (0.057 in.): 32
