"O/D OFF" Switch Inspection

  1. Remove console box.
  2. Disconnect O/D off switch connector (1).
  3. Check continuity between O/D off switch (2) terminals. If check result is not as satisfied, replace switch.
    CONTINUITY REFERENCE CHART

      With O/D off switch button pressed With O/D off switch button released
    Continuity Continuity No continuity

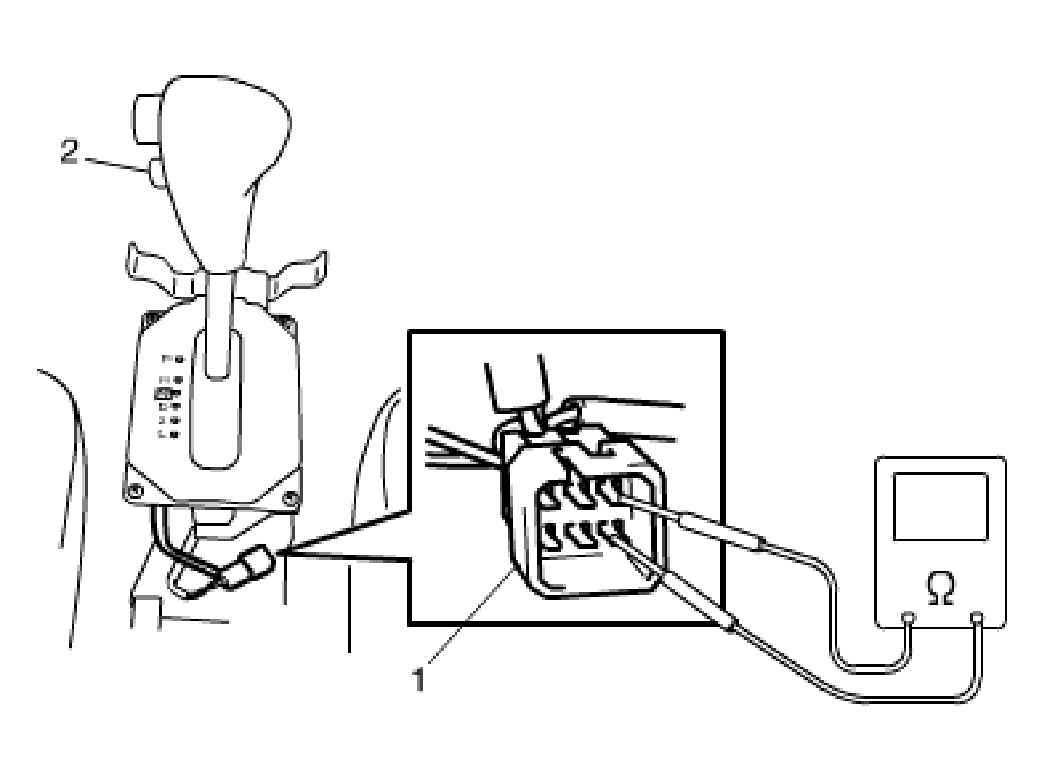

    Fig 1: Checking Continuity Between O/D Off Switch Terminals
    G04591886Courtesy of SUZUKI OF AMERICA CORP.
