TCM Power and Ground Circuit Check: Wiring Diagram

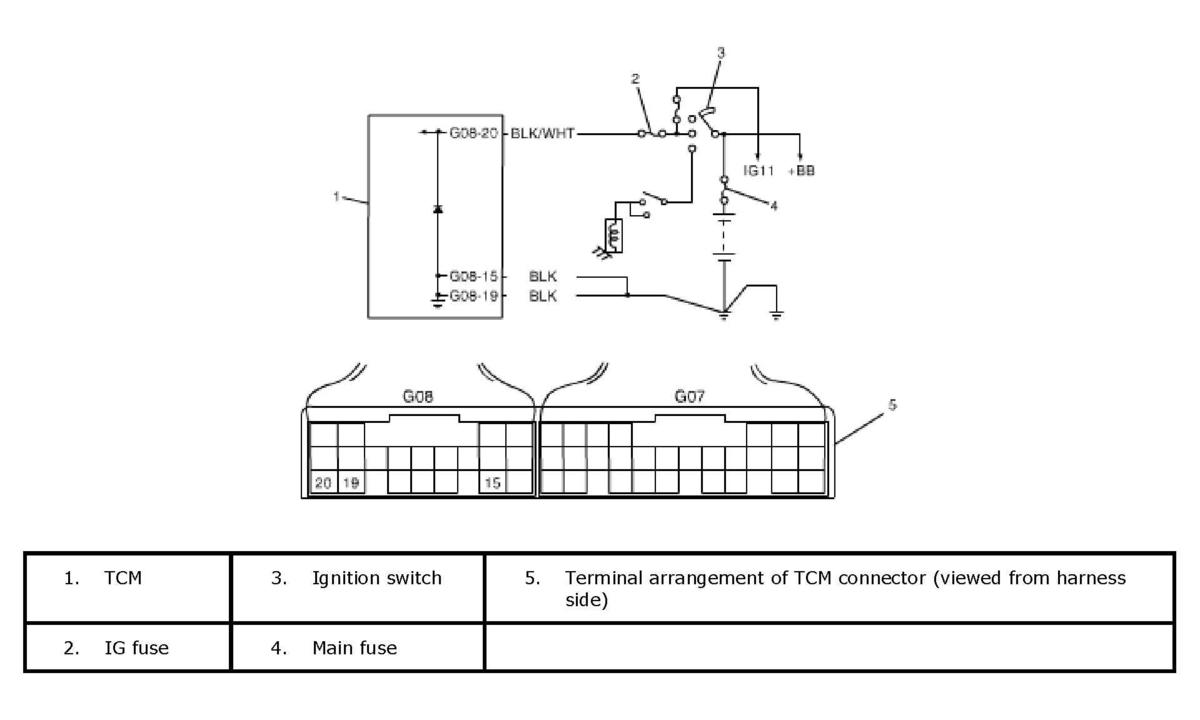

Fig 1: Wiring Diagram - TCM Power And Ground Circuit
G04591854Courtesy of SUZUKI OF AMERICA CORP.
