Manual Road Test: Notes
This test checks the gears being used in "L", "2" or "D" range when driven with unoperated gear shift control system. Test drive vehicle on a level road.
NOTE:
Before this test, check diagnostic trouble code (DTC).
- With select lever in "P", start engine and warm it up.

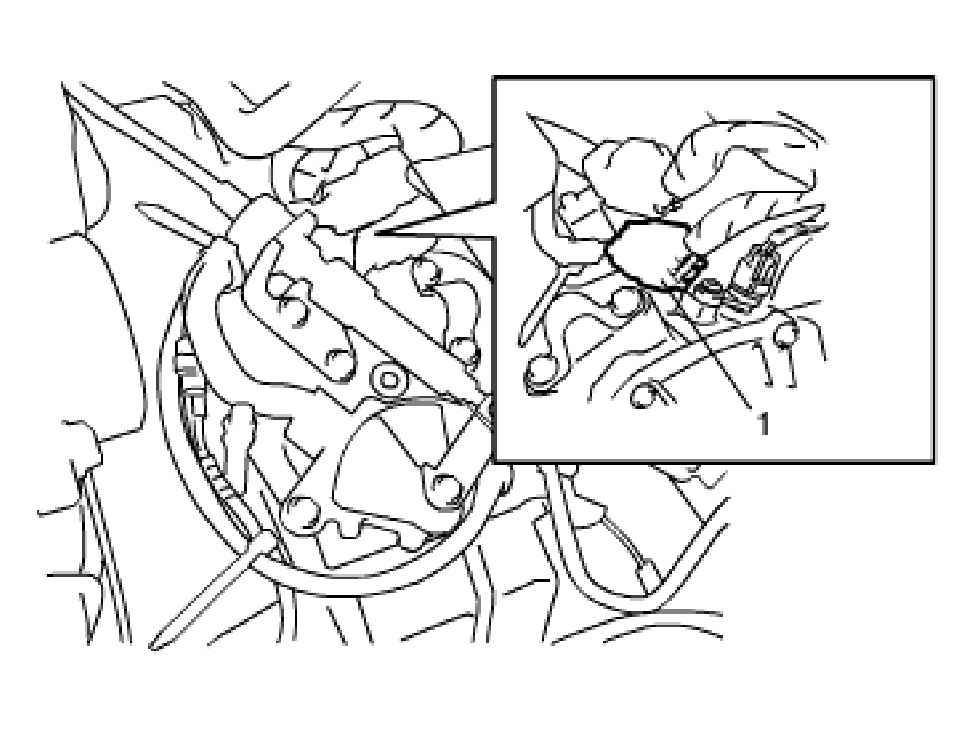

- After warming up engine, turn ignition switch OFF and disconnect valve body connector (1).
- With select lever in "L" range, start vehicle and accelerate to 20 km/h (12.5 mile/h). Check in this state that 1st gear is being used.
- At 20 km/h (12.5 mile/h), shift select lever to "2" range and accelerate to 40 km/h (25 mile/h). Check in this state that 3rd gear is being used.
- At 40 km/h (25 mile/h), shift select lever to "D" range and check that 4th gear is used when speed is higher than 40 km/h (25 mile/h).
- After the checks, stop vehicle then turn ignition switch OFF, and connect valve body connector (1).
- Clear DTC.
