9. Reference waveform No. 9

Pressure control solenoid valve output signal

WAVEFORM REFERENCE 9 CHART

Measurement terminal CH1: G08-11 to G08-19
Oscilloscope CH1: 5 V/DIV
TIME: 2 ms/DIV
Measurement condition
  • After warmed up to normal operating temperature (ECT approx. 95 °C, 203 °F)
  • Select lever shifted to "D"
  • Engine speed at idle speed

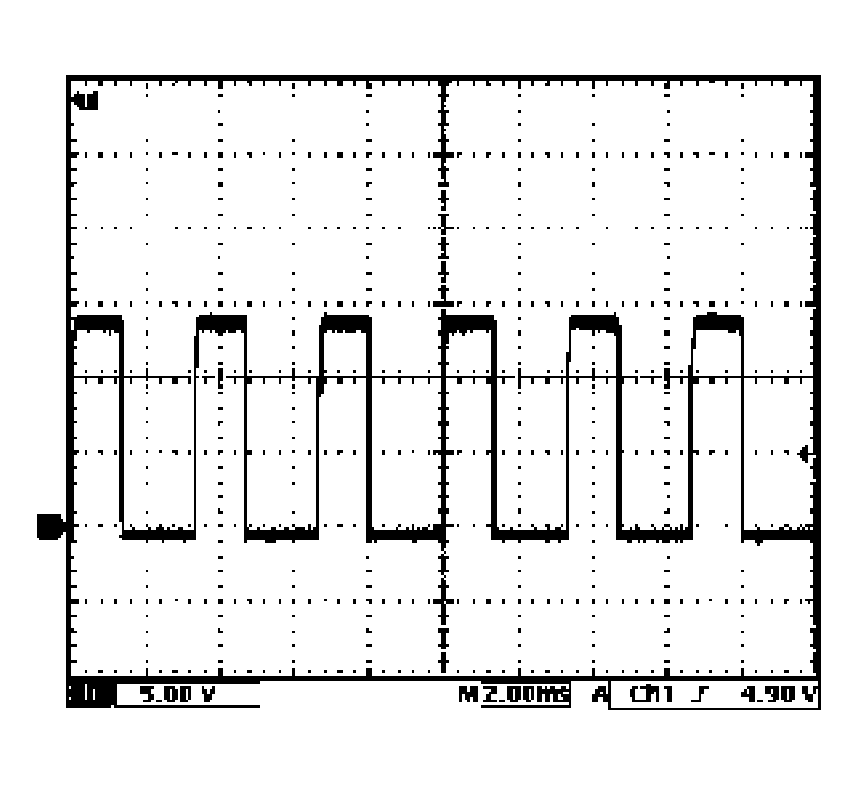

Fig 1: Identifying Waveform No. 9
G04591853Courtesy of SUZUKI OF AMERICA CORP.
