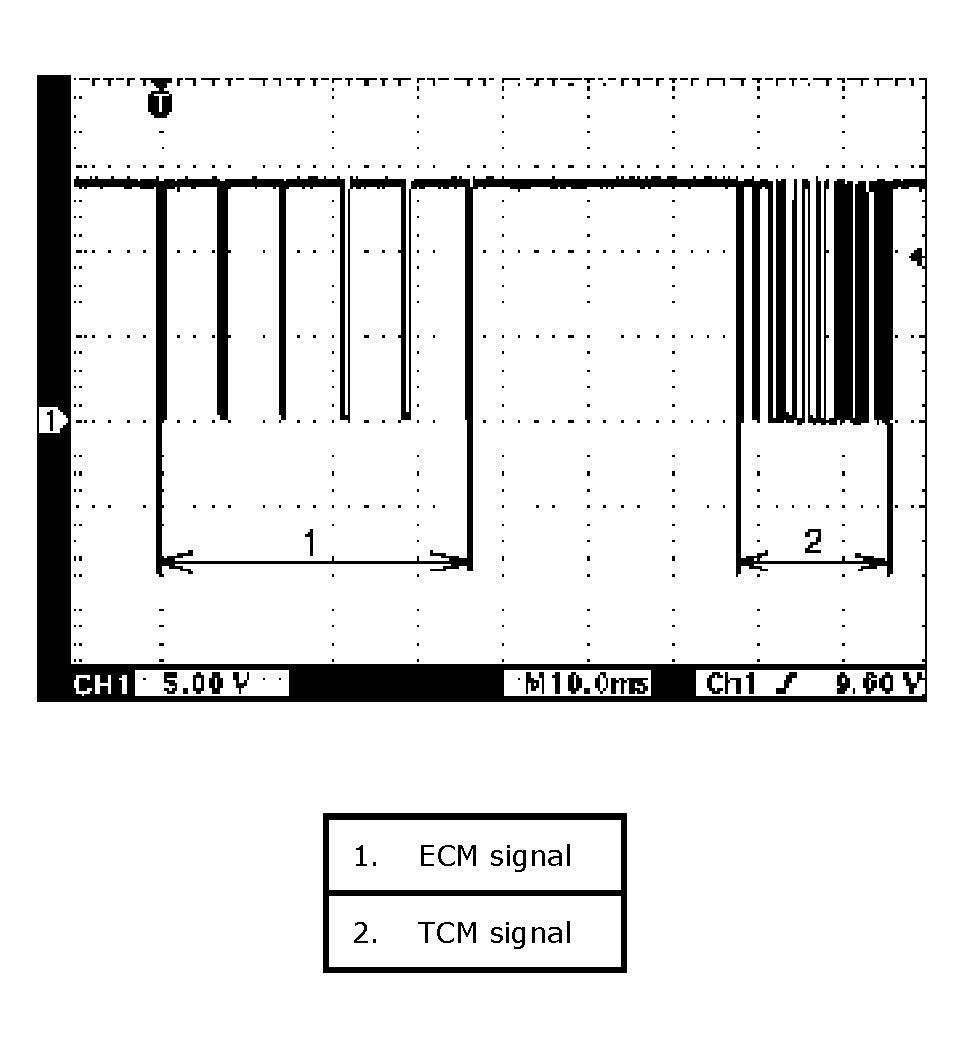

8. Reference waveform No. 8
Serial communication line from ECM
WAVEFORM REFERENCE 8 CHART
| Measurement terminal |
CH1: G07-27 to G08-19 |
| Oscilloscope |
CH1: 5 V/DIV
TIME: 10 ms/DIV |
| Measurement condition |
- Ignition switch turned ON
|
Courtesy of SUZUKI OF AMERICA CORP.
