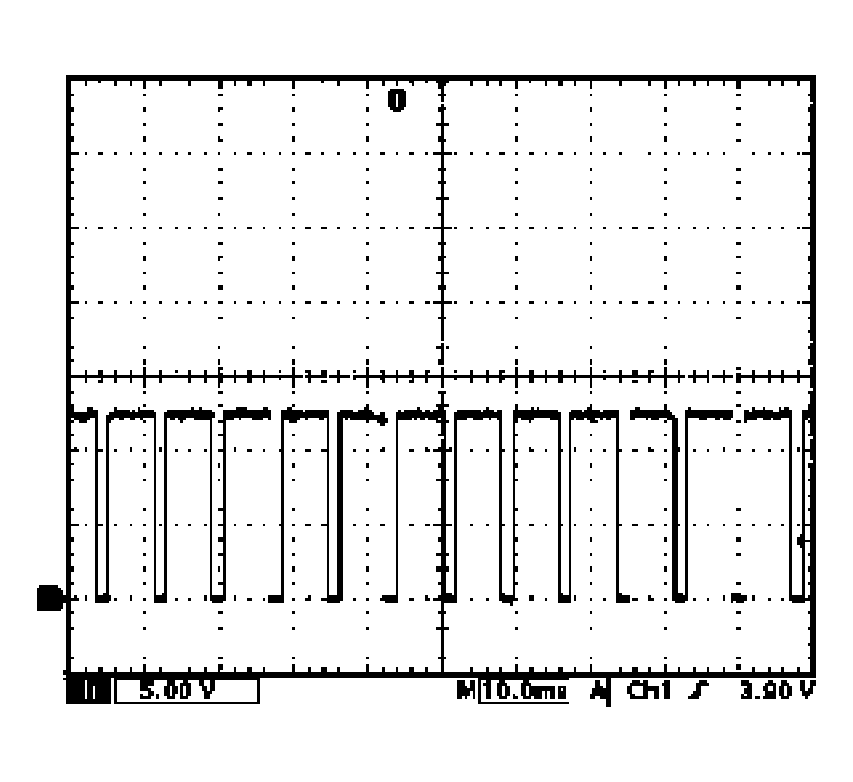

7. Reference waveform No. 7
Engine torque signal from ECM
WAVEFORM REFERENCE 7 CHART
| Measurement terminal |
CH1: G07-23 to G08-19 |
| Oscilloscope |
CH1: 5 V/DIV
TIME: 10 ms/DIV |
| Measurement condition |
- After warmed up to normal operating temperature (ECT approx. 95 °C, 203 °F)
- Select lever shifted to "N"
- Engine speed at idle speed
|
Courtesy of SUZUKI OF AMERICA CORP.
