6. Reference waveform No. 6

Engine torque reduction signal

WAVEFORM REFERENCE 6 CHART

Measurement terminal	CH1: G07-18 to G08-19
Oscilloscope	CH1: 2 V/DIV TIME: 20 ms/DIV
Measurement condition	After warmed up to normal operating temperature (ECT approx. 95 °C, 203 °F) Drive vehicle at over 64 km/h (40 mph) with O/D OFF switch ON and then OFF

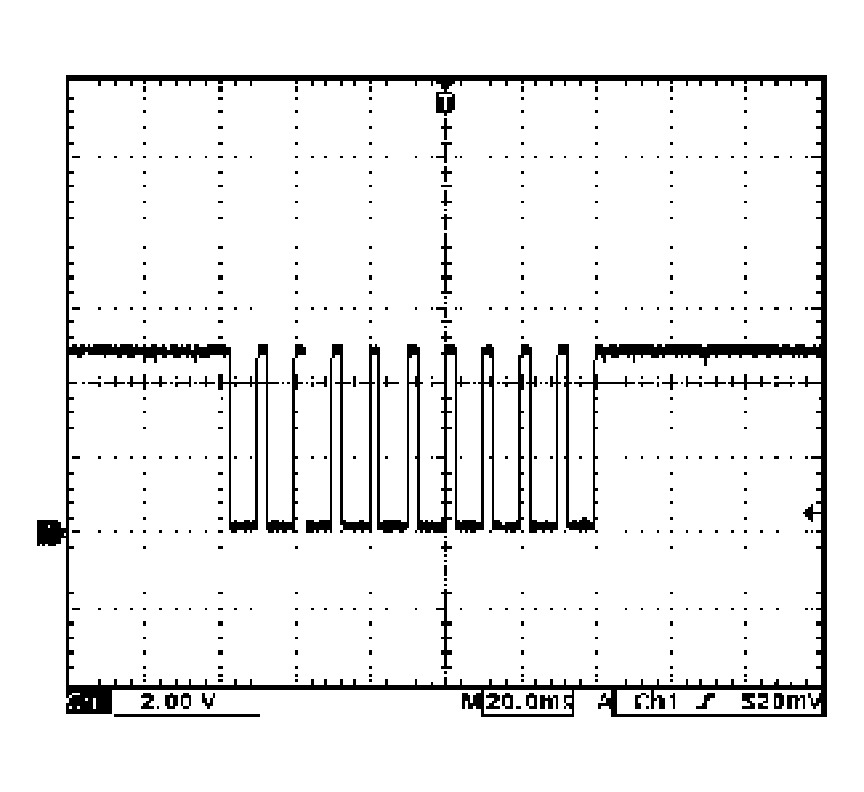

Fig 1: Identifying Waveform No. 6

Courtesy of SUZUKI OF AMERICA CORP.
