5. Reference waveform No. 5

Engine speed signal from ECM

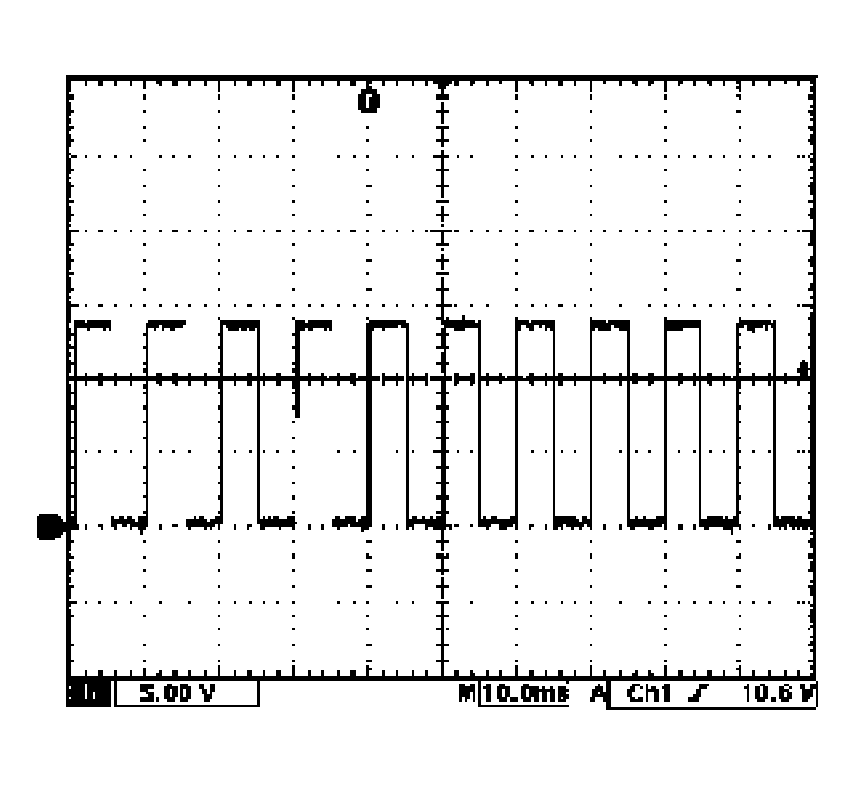

WAVEFORM REFERENCE 5 CHART

Measurement terminal CH1: G07-15 to G08-19
Oscilloscope CH1: 5 V/DIV
TIME: 10 ms/DIV
Measurement condition
  • Engine speed at 3000 RPM
Fig 1: Identifying Waveform No. 5
G04591849Courtesy of SUZUKI OF AMERICA CORP.
