1. Reference waveform No. 1

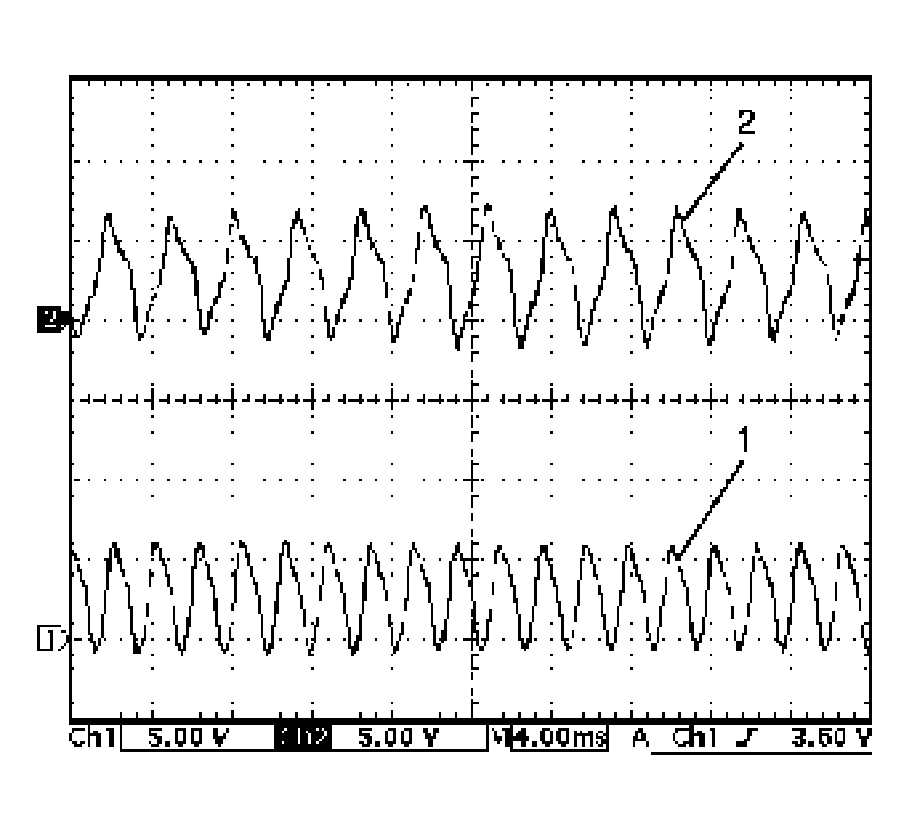

Output shaft speed sensor signal (1) and input shaft speed sensor signal (2) at 64 km/h (40 mph)

WAVEFORM REFERENCE 1 CHART

Measurement terminal	CH1: G07-4 to G08-19 CH2: G07-5 to G08-19
Oscilloscope	CH1: 5 V/DIV, CH2: 5 V/DIV TIME: 4 ms/DIV
Measurement condition	After warmed up to normal operating temperature (ECT approx. 95 °C, 203 °F) Drive vehicle at 64 km/h (40 mph) Gear position at 4th

Fig 1: Identifying Waveform No. 1

Courtesy of SUZUKI OF AMERICA CORP.
