DTC Troubleshooting

DTC TROUBLESHOOTING CHART

Step Action YES NO
1  Was "A/T System Check" performed?  Go to Step 2. Go to A/T SYSTEM CHECK .
2  Check pressure control solenoid valve circuit for IG short
  1. Turn ignition switch OFF and disconnect TCM connectors.
  2. Check for proper connection to TCM at terminals "G08-11" and "G08-8".
  3. If OK, turn ignition switch ON and measure voltage between terminal "G08-11" of disconnected harness side TCM connector and ground.

Is it 0 V? 		 Go to Step 3. "GRY/RED" or "GRY/BLK" circuit shorted to power circuit.
3  Check pressure control solenoid valve resistance
  1. Turn ignition switch OFF.
  2. Disconnect valve body harness connector (1) on transaxle (2).
  3. Check for proper connection to solenoid at "GRY/RED" and "GRY/BLK" circuits.
  4. Check resistance of solenoid.

Resistance of pressure control solenoid valve
Between terminals of transaxle side valve body harness connector: 5.0 - 5.6 Ω at 20 °C (68 °F) Between terminals of transaxle side valve body harness connector and transaxle: Infinity

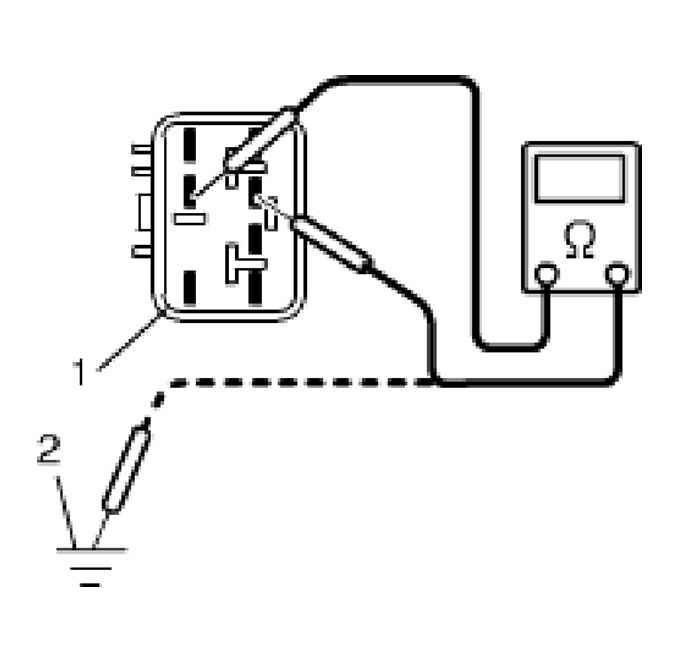

G04591829


Is check results satisfactory? 		 Intermittent trouble or faulty TCM. Check for intermittent referring to INTERMITTENT AND POOR CONNECTION INSPECTION .
If OK, substitute a known-good TCM and recheck.		 Replace pressure control solenoid valve or lead wire.
