DTC Troubleshooting

DTC TROUBLESHOOTING CHART

Step Action YES NO
1  Was "A/T System Check" performed?  Go to Step 2. Go to A/T SYSTEM CHECK .
2  Check pressure control solenoid valve resistance
  1. Turn ignition switch OFF.
  2. Disconnect valve body harness connector (1) on transaxle (2).
  3. Check for proper connection to solenoid at "GRY/RED" and "GRY/BLK" circuits.
  4. Check resistance of solenoid.

Resistance of pressure control solenoid valve
Between terminals of transaxle side valve body harness connector: 5.0 - 5.6 Ω at 20 °C (68 °F) Between terminals of transaxle side valve body harness connector and transaxle: Infinity

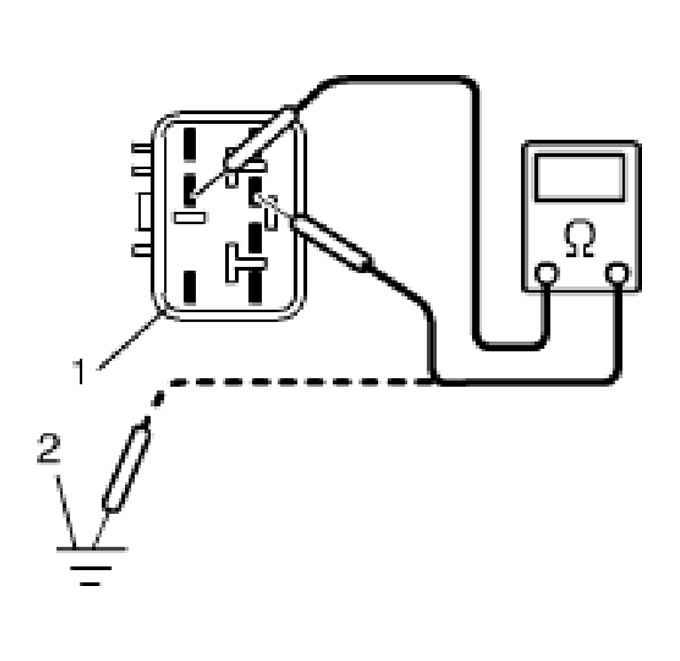

G04591827


Is check results satisfactory? 		 Go to Step 4. Replace pressure control solenoid valve or lead wire.
3  Check pressure control solenoid valve circuit for ground short
  1. Connect valve body harness connector.
  2. Disconnect TCM connectors.
  3. Check for proper connection to TCM at terminal "G08-11" and "G08-8".
  4. If connection is OK, check continuity between terminal "G08-11" of disconnected harness side TCM connector and ground.

Is continuity indicated? 		 "GRY/RED" or "GRY/BLK" circuit shorted to ground. Go to Step 5.
4  Check pressure control solenoid valve circuit for open
  1. Check resistance between terminals "G08-11" and "G08-8" of disconnected harness side TCM connector.

Is it infinity? 		 "GRY/RED" or "GRY/BLK" circuit open. Intermittent trouble or faulty TCM. Check for intermittent referring to INTERMITTENT AND POOR CONNECTION INSPECTION . If OK, substitute a known-good TCM and recheck.
