To Clear DTC Stored in TCM with Scan Tool - Method-2

  1. Turn ignition switch OFF.
  2. Connect SUZUKI scan tool to data link connector (DLC) (1) located In underside of instrument panel at driver's seat side.

    Special Tool

    1. SUZUKI scan tool

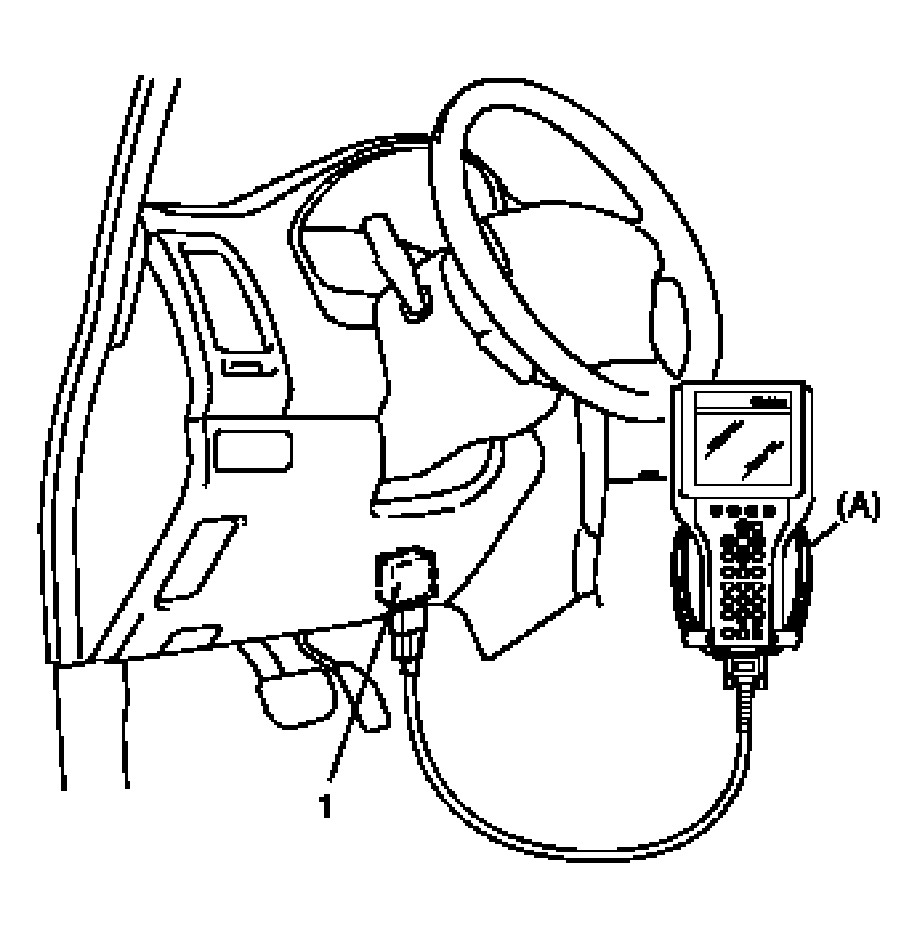

      Fig 1: Connecting SUZUKI Scan Tool To Data Link Connector
      G04591813Courtesy of SUZUKI OF AMERICA CORP.
  3. Turn ignition switch ON.
  4. Clear DTC according to instructions displayed on SUZUKI scan tool. Refer to SUZUKI scan tool operators manual for further details.
  5. After completing the clearance, turn ignition switch OFF and disconnect SUZUKI scan tool from data link connector (DLC) (1).
