"O/D OFF" Lamp Check

1. Turn ignition switch ON.
2. Check that "O/D OFF" lamp (1) lights for about 2 sec. and then goes OFF.

If anything faulty is found, advance to "O/D OFF" Lamp Circuit Check  .

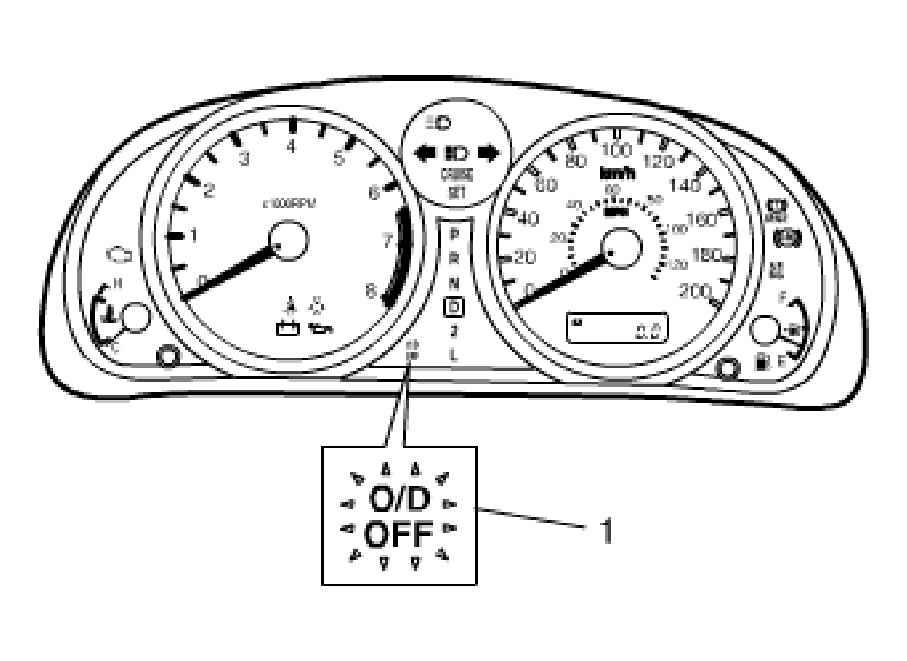

Fig 1: Identifying O/D OFF Lamp Lights

Courtesy of SUZUKI OF AMERICA CORP.
