Pump Body, Cover, Side Plate and Shaft

Check sliding surfaces of each part for wear and damage. If any defect is found, replace pump assembly.

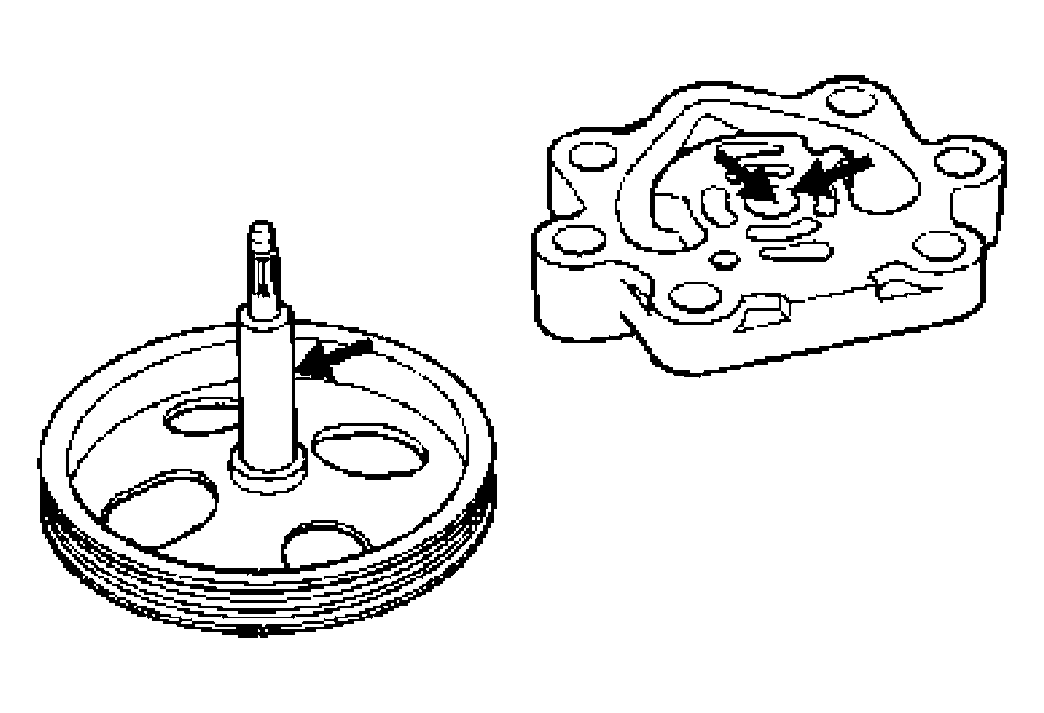

Fig 1: Checking Sliding Surfaces Of P/S Pump

Courtesy of SUZUKI OF AMERICA CORP.
