Hydraulic Pressure in P/S Circuit Check

After cleaning joint of high pressure hose and P/S pump thoroughly, disconnect hose from pump and install special tool (oil pressure gauge, attachment and hose).
Tighten each flare nut to specified torque.

Special Tool
1. 09915-77411
2. 09915-77420
3. 09945-36010

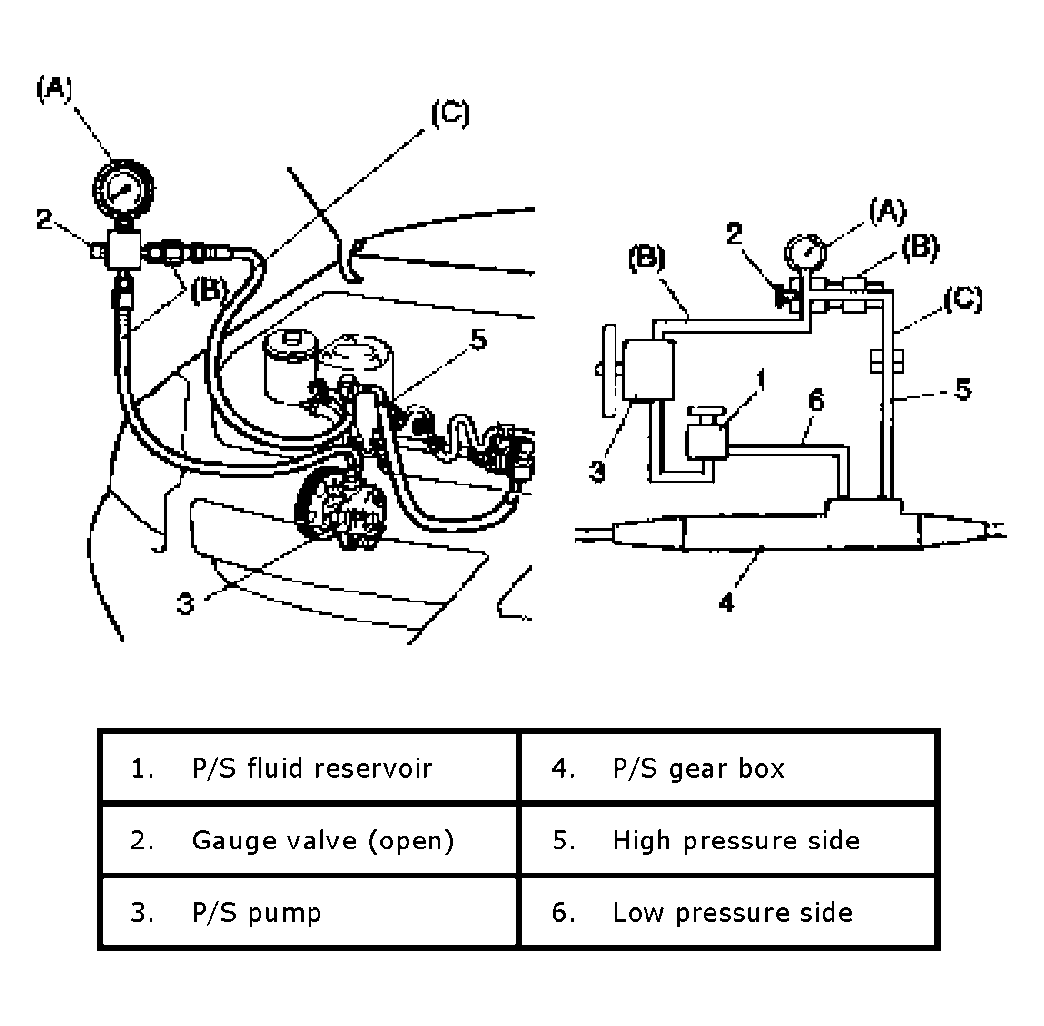

  Fig 1: Checking Hydraulic Pressure In P/S Circuit
  Courtesy of SUZUKI OF AMERICA CORP.
Check each connection for fluid leakage and bleed air. Refer to AIR BLEEDING PROCEDURE .
With engine idling, turn steering wheel and warm up engine till temperature of fluid in tank rises to 50 - 60°C (122 - 140°F).

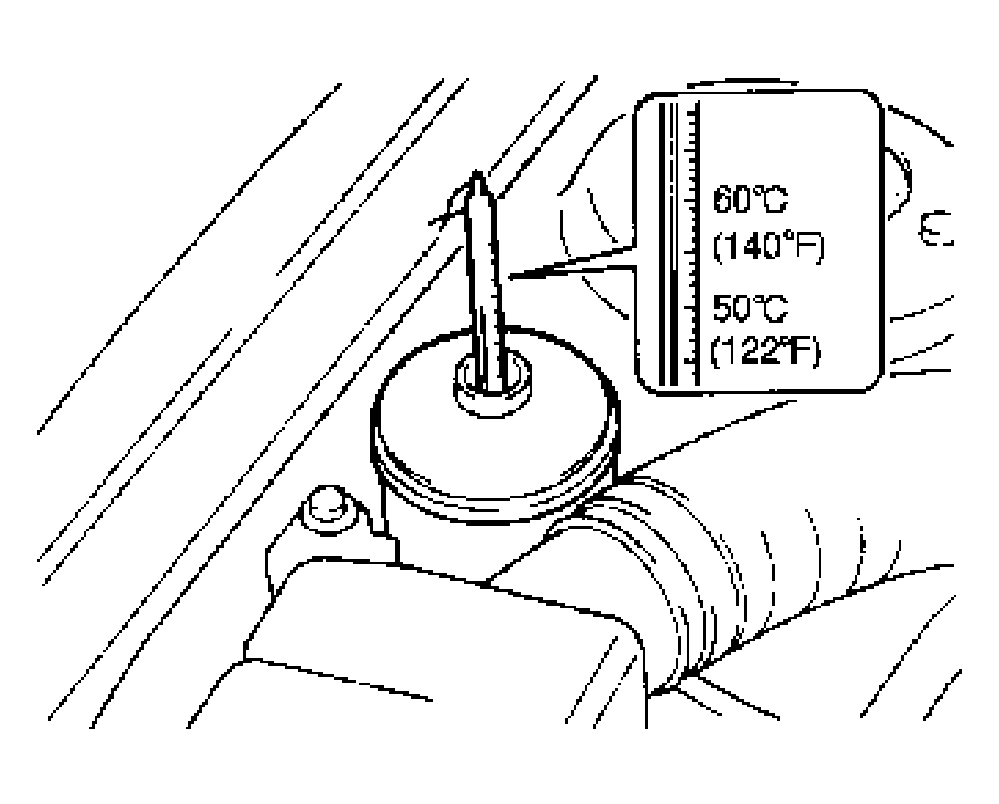

Fig 2: Identifying Engine Temperature
Courtesy of SUZUKI OF AMERICA CORP.
Check back pressure by measuring hydraulic pressure with engine idling and hands off steering wheel.
Back pressure

Lower than 1000 kPa (10 kg/cm ² , 142 psi)

When back pressure is higher than specified values, check control valve and piping for clogging.

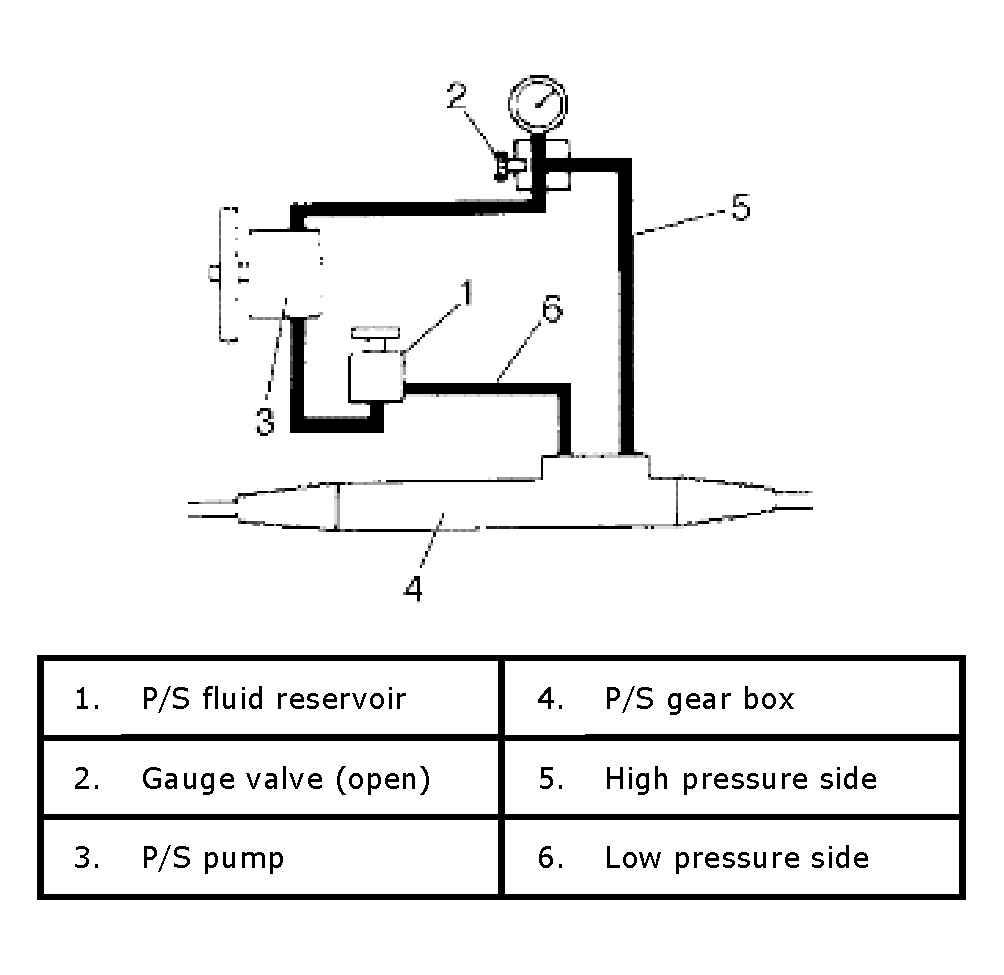

Fig 3: Checking Back Pressure By Measuring Hydraulic Pressure
Courtesy of SUZUKI OF AMERICA CORP.
Check relief pressure.
- Increase engine speed to about 1500 r/min. (RPM). Close gauge valve (2) gradually while watching pressure increase indicated by gauge and take reading of relief pressure (maximum hydraulic pressure).
  Relief pressure

  8200 - 8900 kPa (82 - 89 kg/cm ² , 1166 - 1265 psi)
- When it is higher than specified values, possible cause is malfunction of relief valve.
- When it is lower than specified values, possible cause is either failure of P/S pump (4) or setting of relief valve spring.
  CAUTION: Be sure not to close gauge valve for longer than 10 seconds.

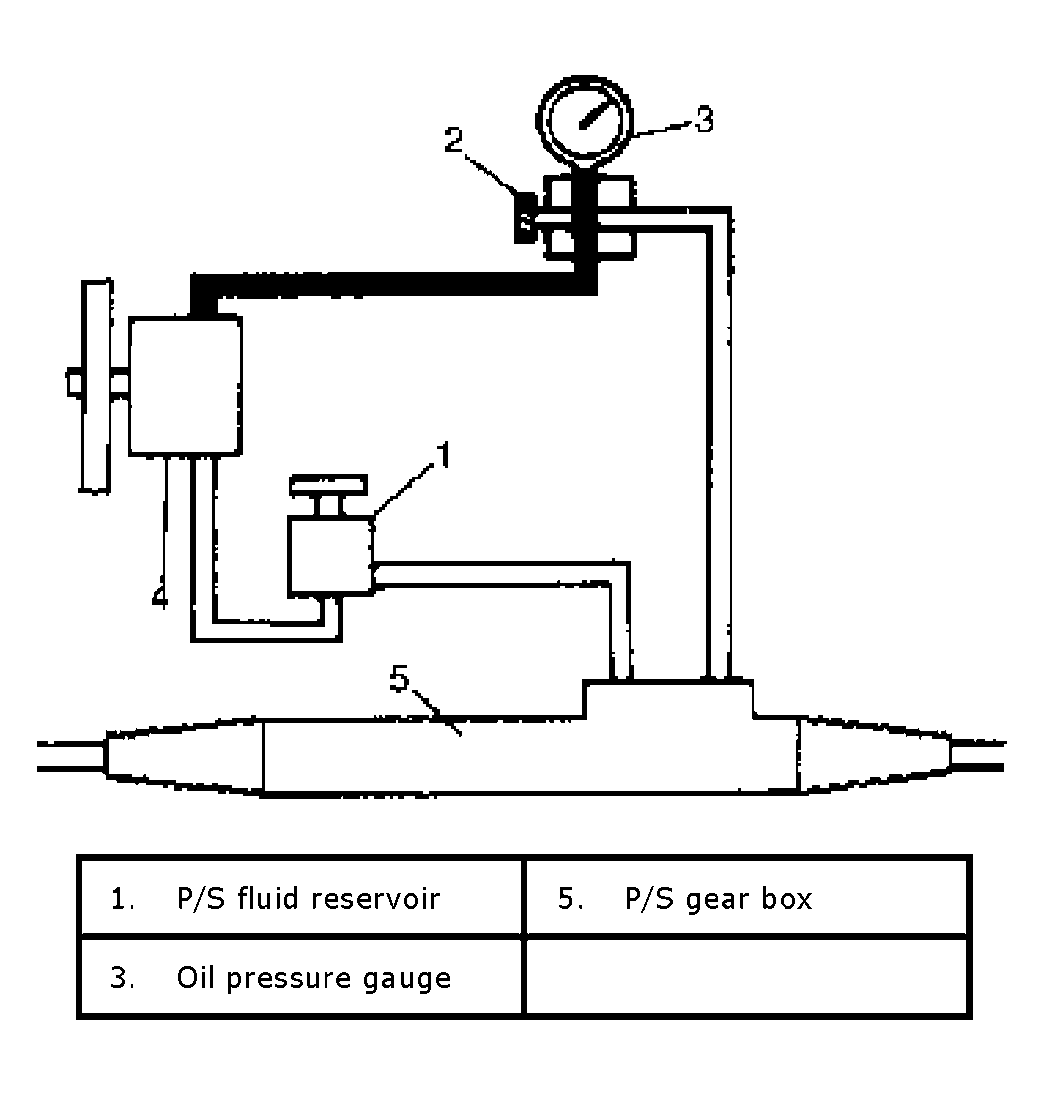

  Fig 4: Checking Relief Pressure
  Courtesy of SUZUKI OF AMERICA CORP.

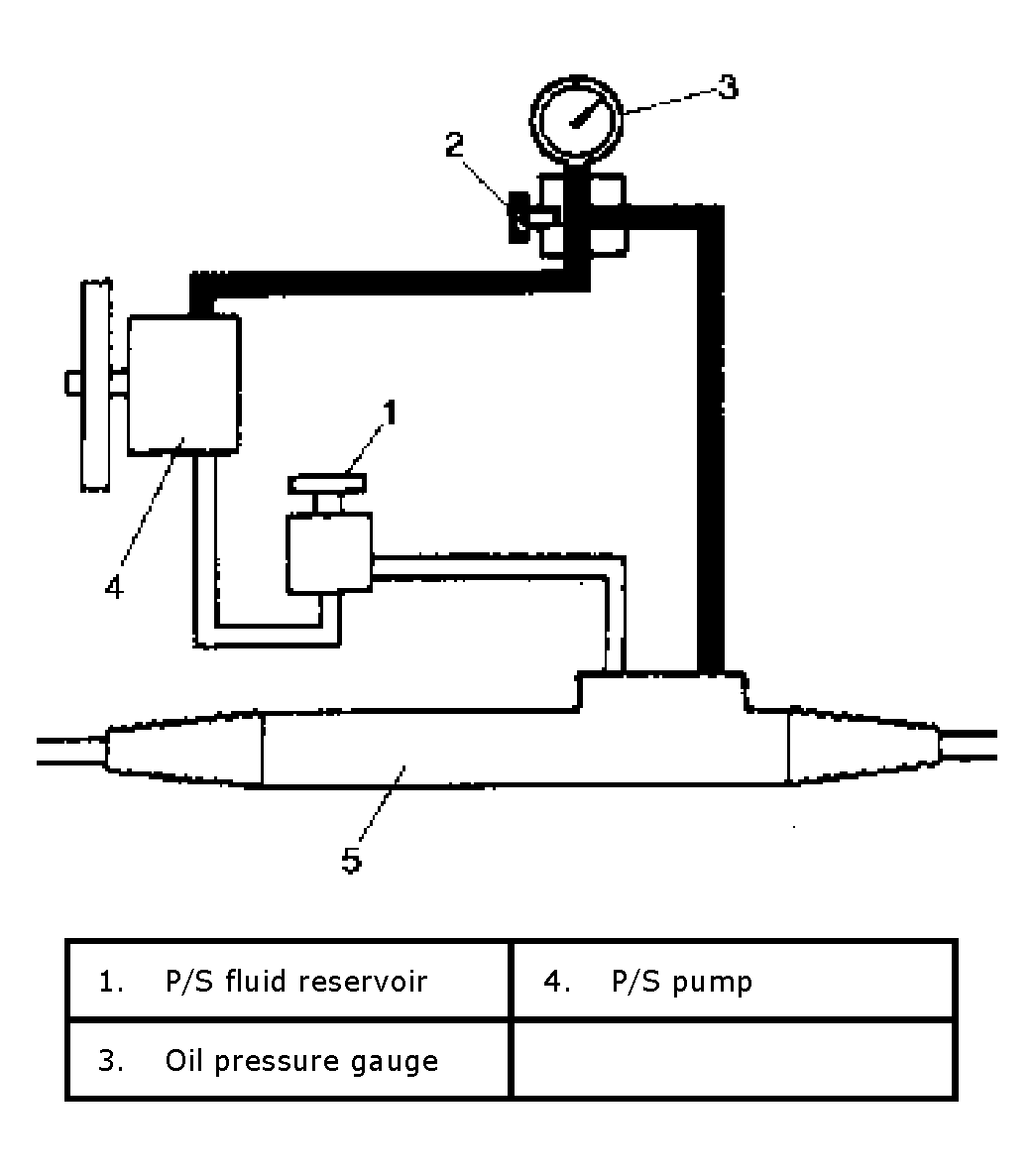

- Next, open gauge valve (2) fully and increase engine speed to about 1500 r/min. Then turn steering wheel to the left or right fully and take reading of relief pressure.
  Relief pressure

  8200 - 8900 kPa (82 - 89 kg/cm ² , 1166 - 1265 psi)
- When it is higher than specified values, possible cause is malfunction of relief valve.
- When it is lower than specified values, possible cause is failure in steering gear box (5). Replace gear box.
  CAUTION: Be sure not to hold steering wheel at fully turned position for longer than 10 seconds.

  Fig 5: Checking P/S Fluid Level
  Courtesy of SUZUKI OF AMERICA CORP.
