Battery Dismounting and Remounting: Remounting

Reverse removal procedure.
Torque battery cables to specification.
NOTE: Check to be sure that ground cable has enough clearance to hood panel by terminal.

Tightening torque

Body ground bolt a: 8.0 N.m (0.8 kg-m, 6.0 lb-ft)

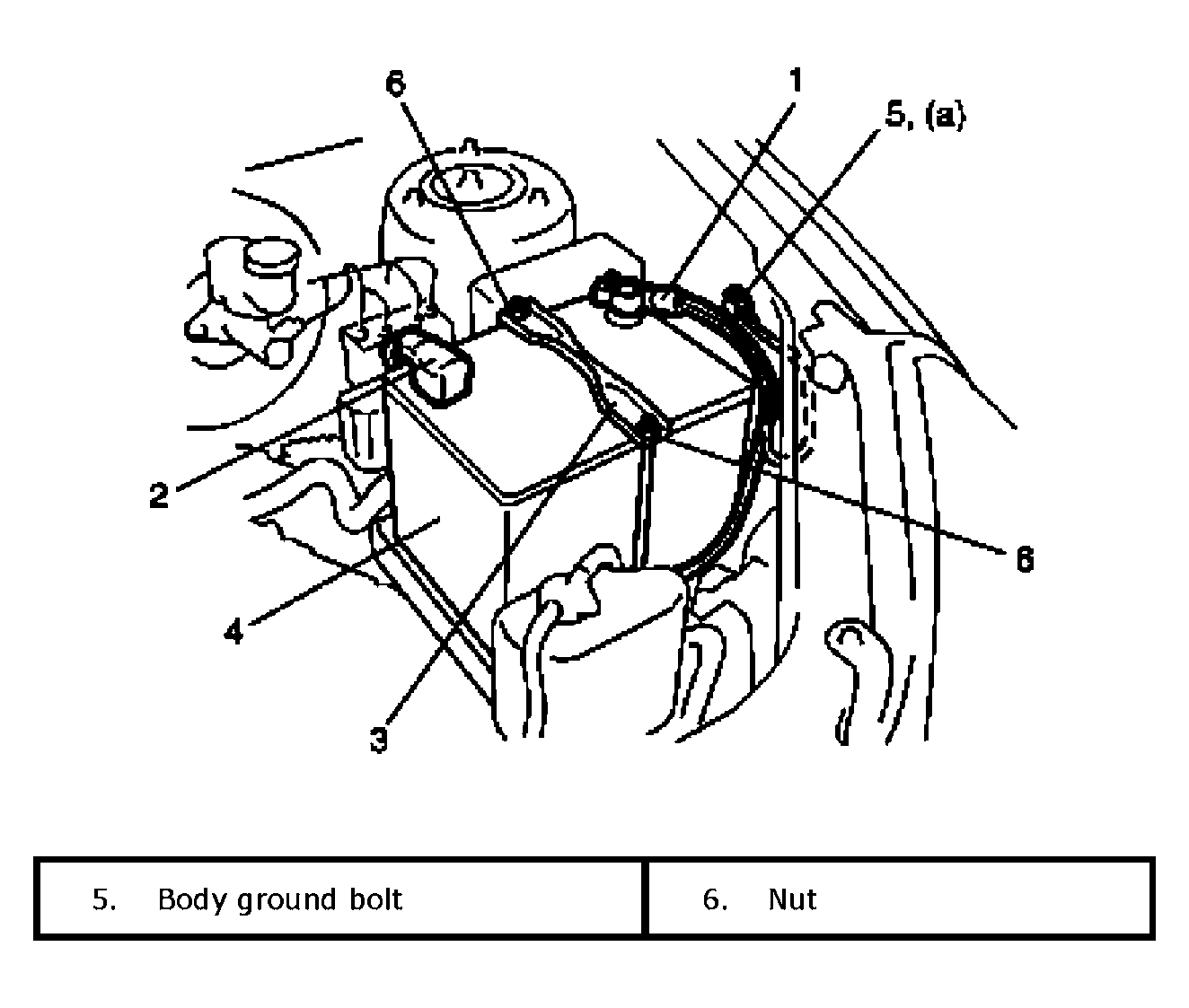

Fig 1: Removing Battery
Courtesy of SUZUKI OF AMERICA CORP.
