Front Disc Brake Components

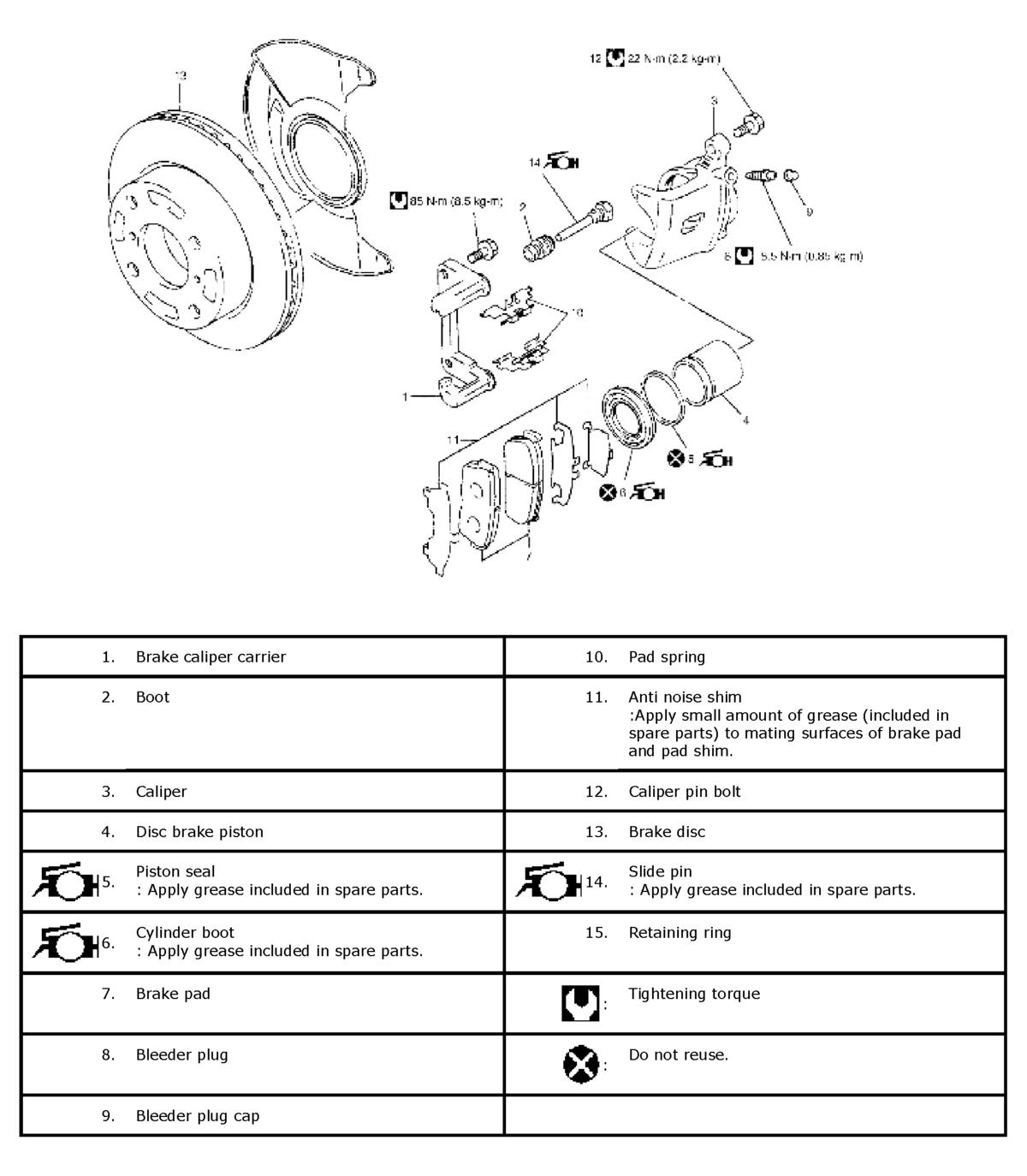

Fig 1: Identifying Front Disc Brake Components (With Tightening Torque)
G04590410Courtesy of SUZUKI OF AMERICA CORP.
