Front Door Assembly Components

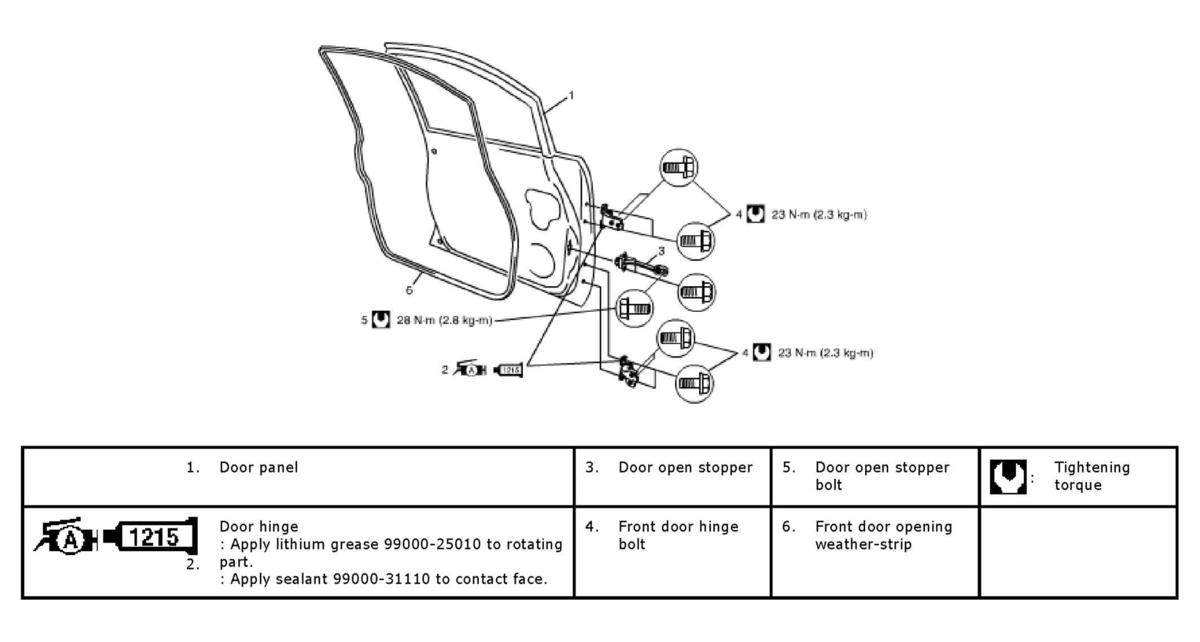

Fig 1: Identifying Front Door Assembly Components (With Tightening Torques)
G04591724Courtesy of SUZUKI OF AMERICA CORP.
