DTC P1717: A/T Driver Range Signal Circuit Malfunction: Wiring Diagram

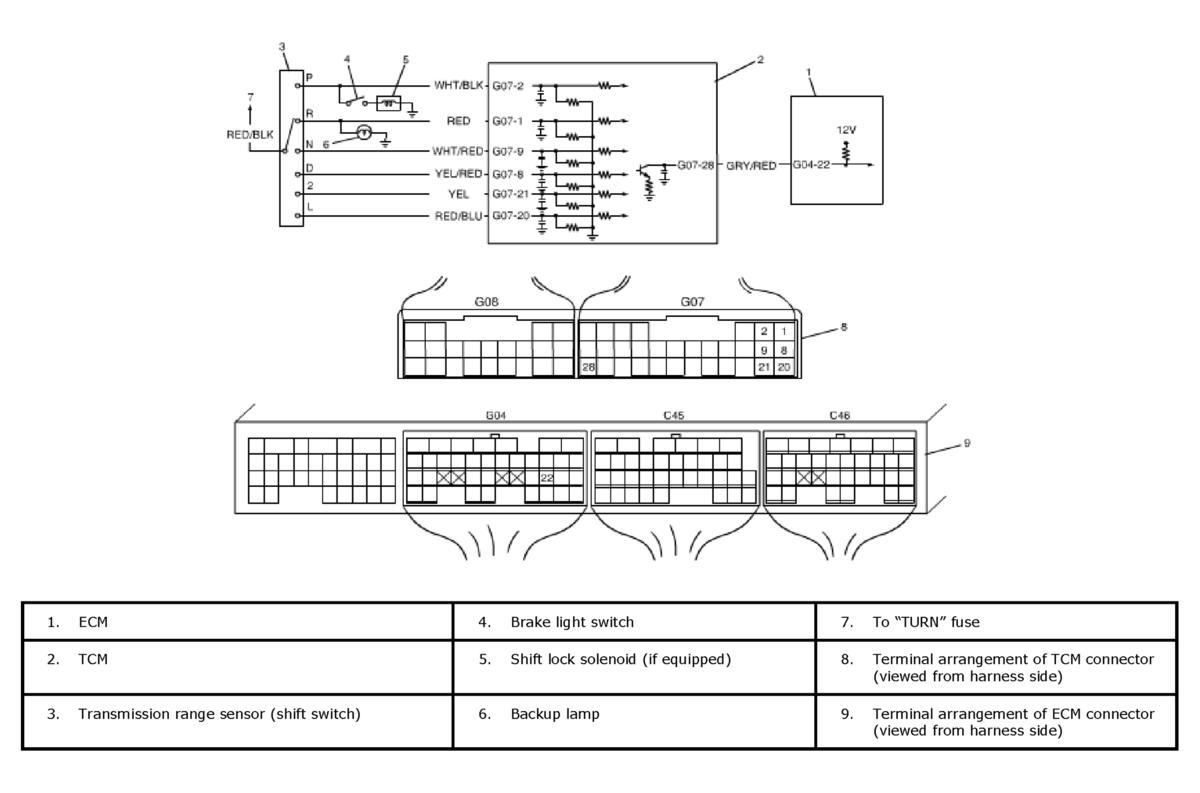

Fig 1: A/T Driver Range Signal Circuit Malfunction - Wiring Diagram
G04589507Courtesy of SUZUKI OF AMERICA CORP.
