DTC P0444: Evaporative Emission System Purge Control Valve Circuit Open: Wiring Diagram

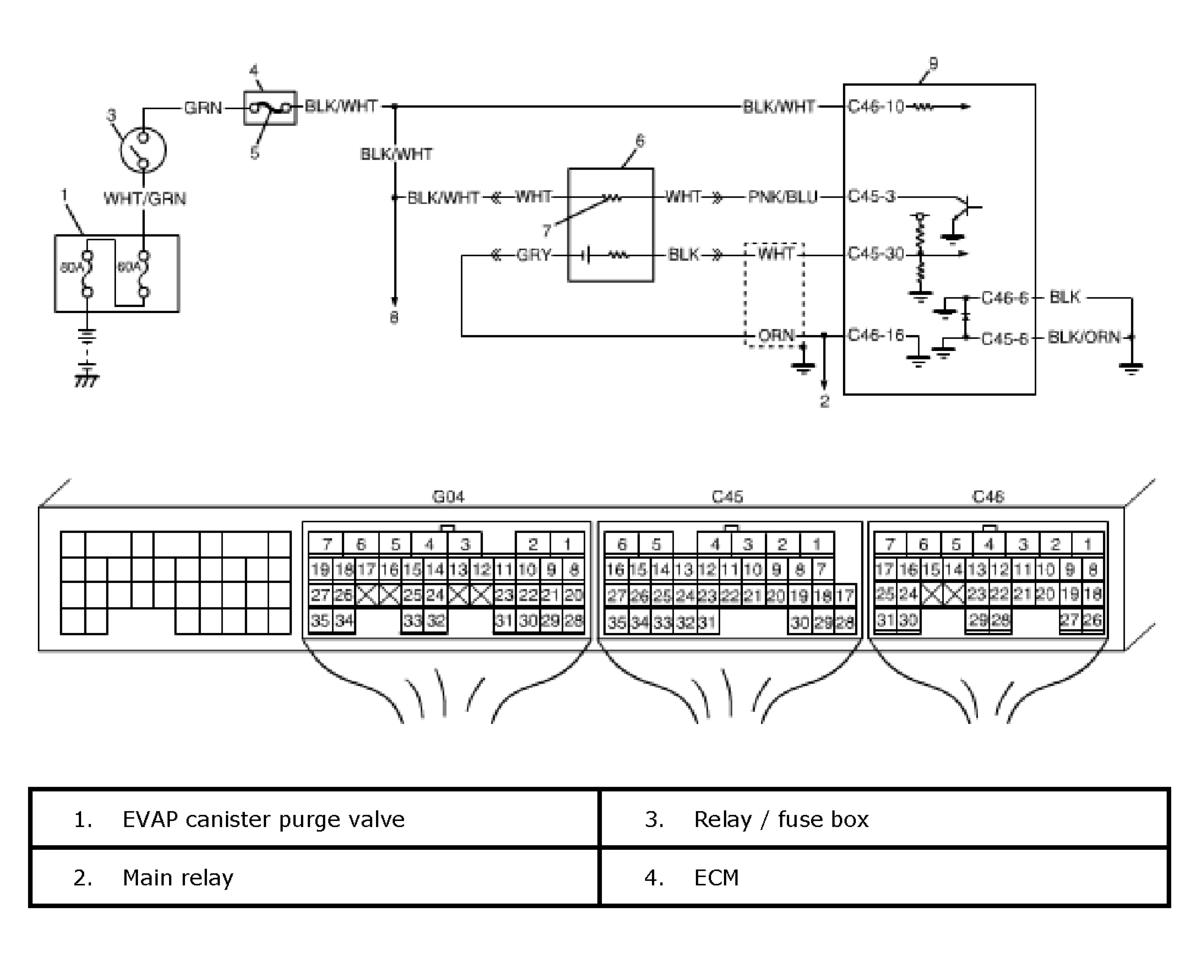

Fig 1: Evaporative Emission System Purge Control Valve Circuit Open - Wiring Diagram
G04589476Courtesy of SUZUKI OF AMERICA CORP.
