Pull-in Test

Connect battery to the magnetic switch as shown.

Check that plunger and pinion move outward.

If plunger and pinion don't move, replace the magnetic switch.

NOTE: Before testing, disconnect lead wire from terminal M (2).

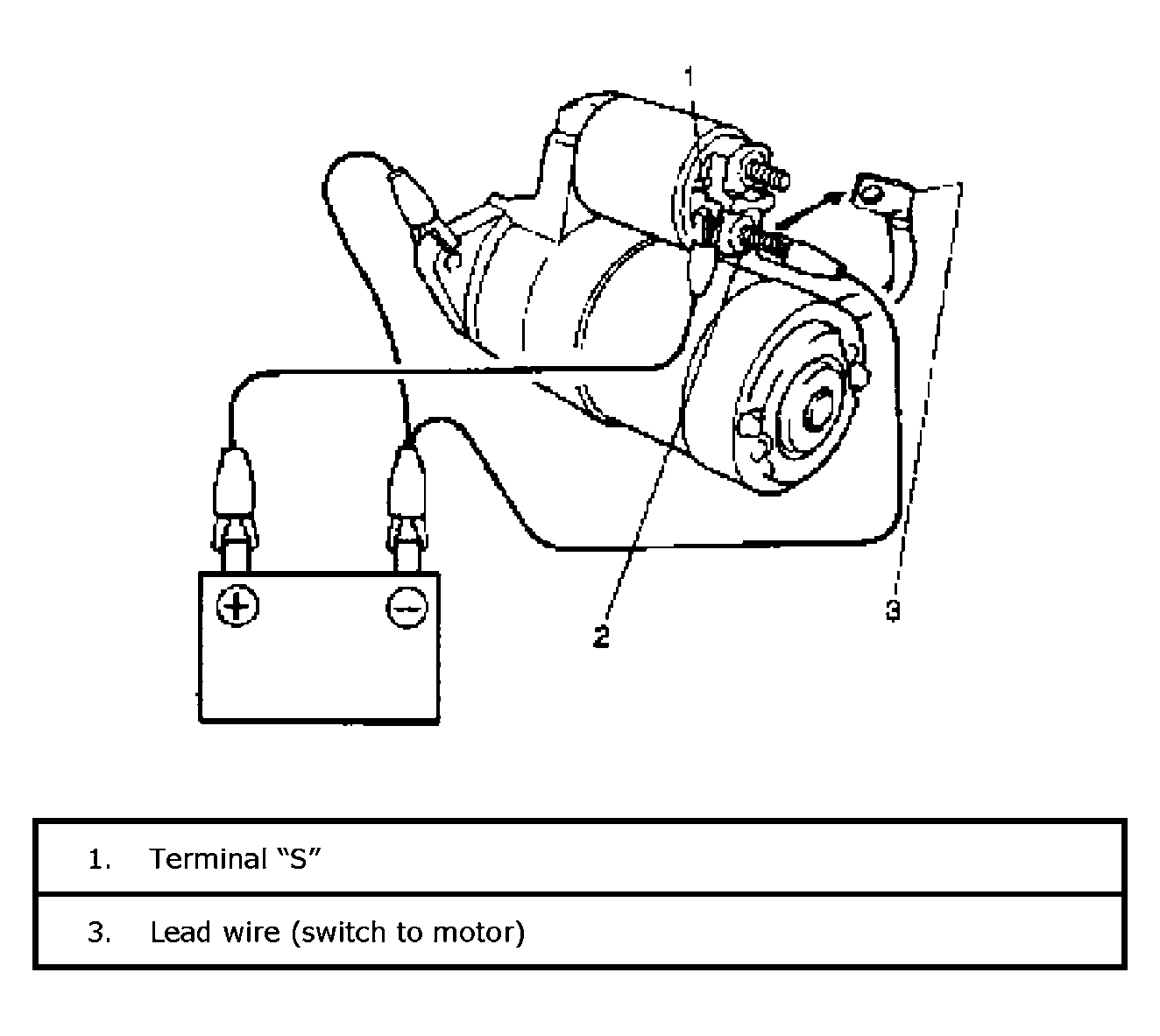

Fig 1: Connecting Battery To Magnetic Switch
G04590041Courtesy of SUZUKI OF AMERICA CORP.
