Brake Pedal Inspection

Check brake pedal travel.

For checking procedure, refer to EXCESSIVE PEDAL TRAVEL INSPECTION .

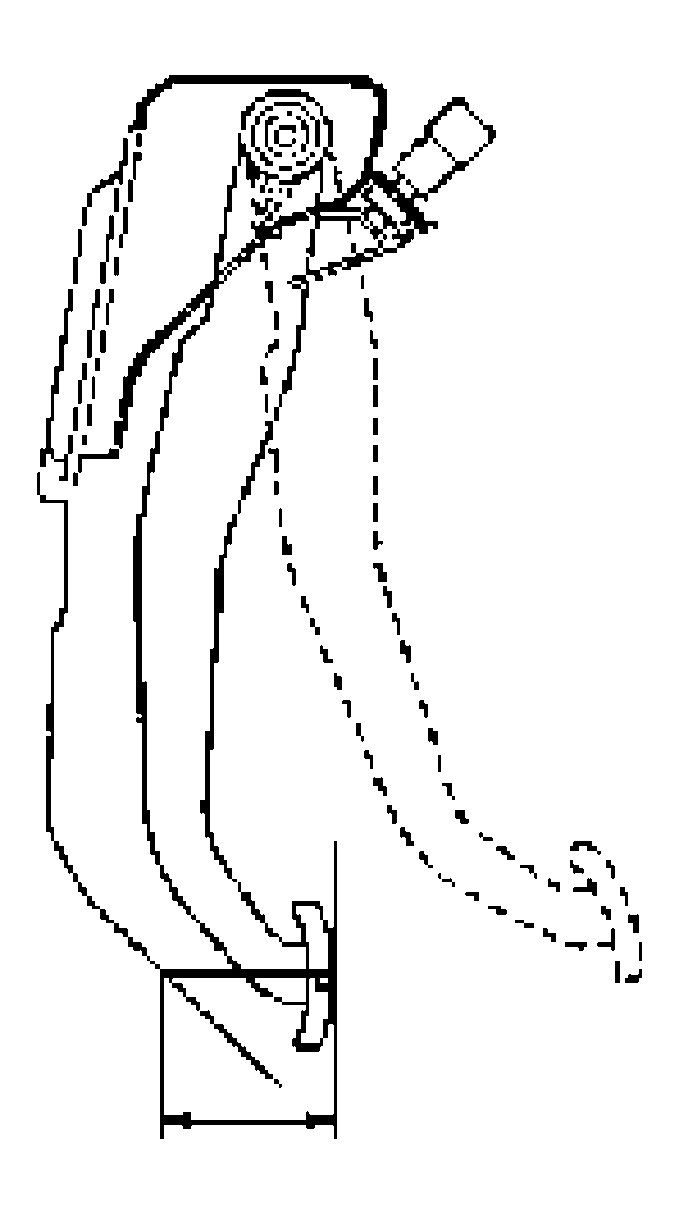

Fig 1: Checking Brake Pedal Travel
G04589380Courtesy of SUZUKI OF AMERICA CORP.
