Oil Pan and Oil Pump Strainer Components

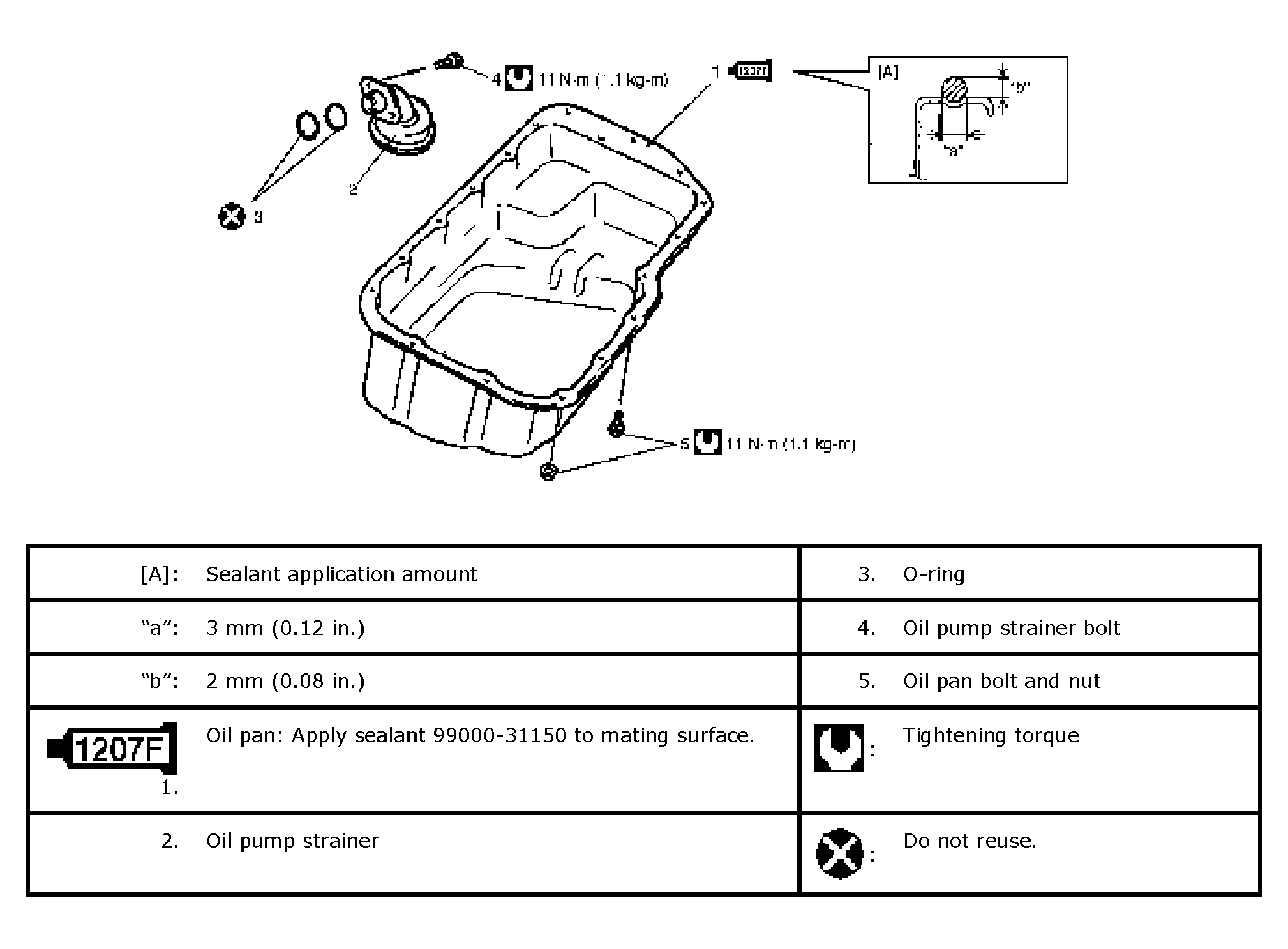

Fig 1: Identifying Oil Pan And Oil Pump Strainer Components (With Tightening Torques)
G04589920Courtesy of SUZUKI OF AMERICA CORP.
