Timing Chain Cover Removal and Installation: Removal

Remove engine assembly from vehicle referring to ENGINE ASSEMBLY REMOVAL AND INSTALLATION .
Remove oil pan referring to OIL PAN AND OIL PUMP STRAINER REMOVAL AND INSTALLATION .
Remove cylinder head cover referring to CYLINDER HEAD COVER REMOVAL AND INSTALLATION .
Remove crankshaft pulley bolt.

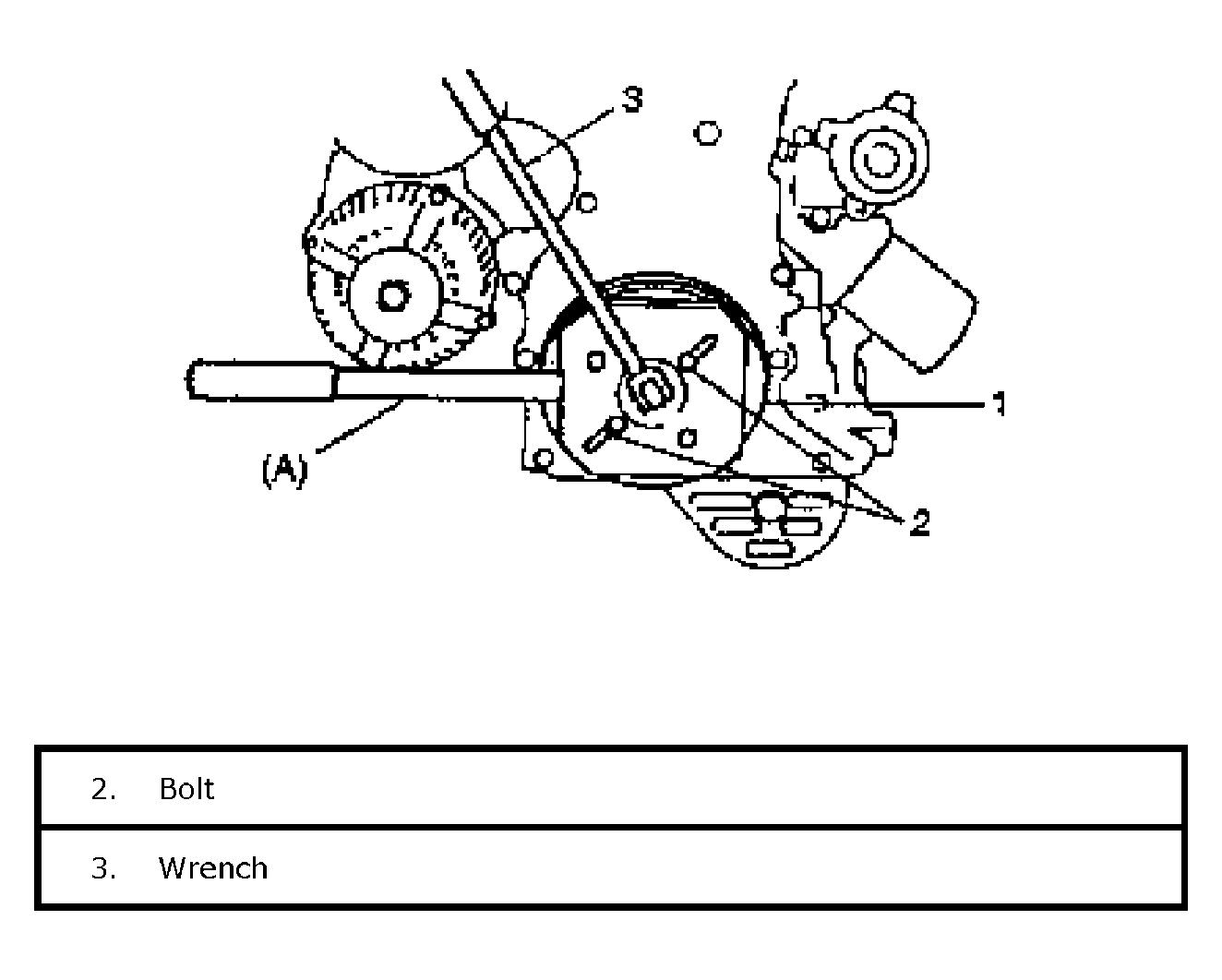

To lock crankshaft pulley (1), use special tool (camshaft pulley holder) with it as shown in figure.

Special Tool

(a): 09917-68221

NOTE: Be sure to use the following bolts instead of pins for fixing special tool to crankshaft pulley.
Bolt size: M8, P1.25 L = 25 mm (0.98 in.)
Strength: 7T

Fig 1: Installing Tool To Crankshaft Pulley
Courtesy of SUZUKI OF AMERICA CORP.
Remove crankshaft pulley (1).

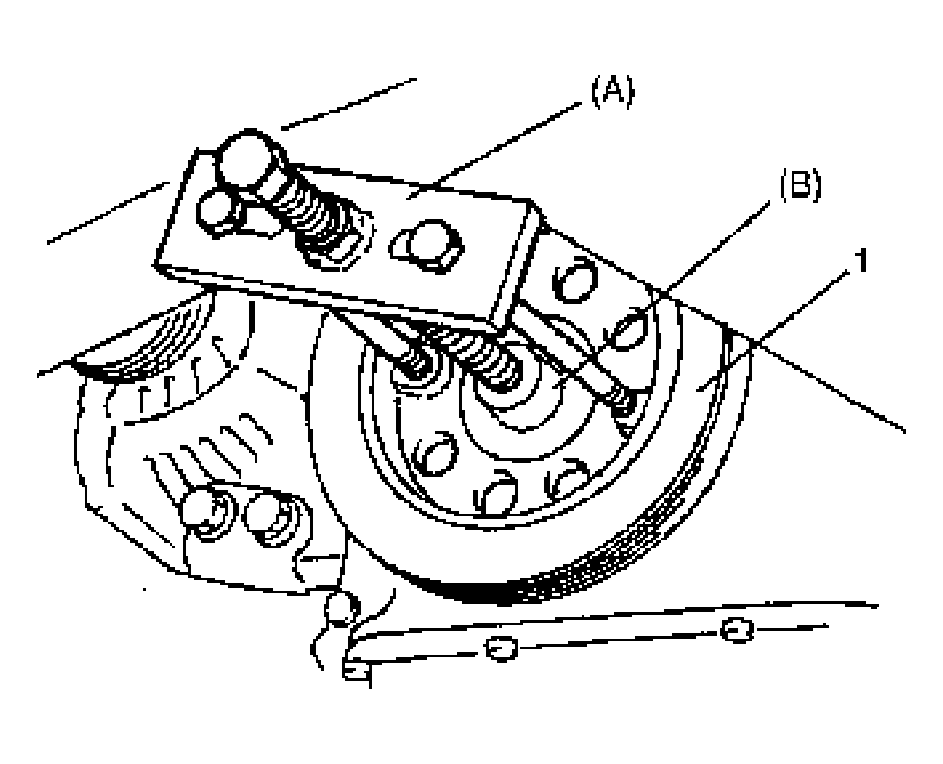

To remove crankshaft pulley, use special tools (Steering wheel remover, Bearing puller attachment) with it as shown in figure.

Special Tool
1. 09944-36011
2. 09926-58010

  Fig 2: Removing Crankshaft Pulley Using Special Tools
  Courtesy of SUZUKI OF AMERICA CORP.

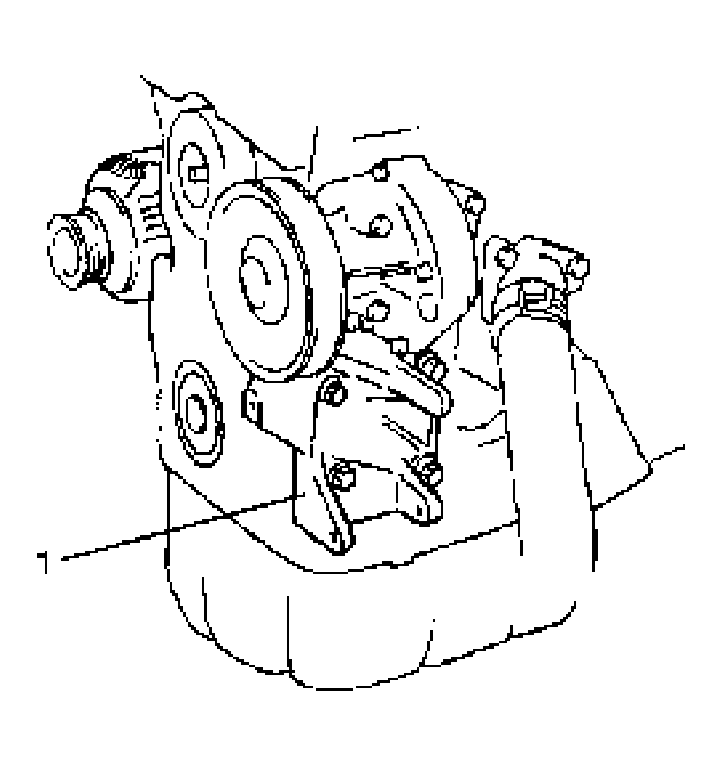

Remove A/C compressor bracket (1).

Fig 3: Removing A/C Compressor Bracket
Courtesy of SUZUKI OF AMERICA CORP.

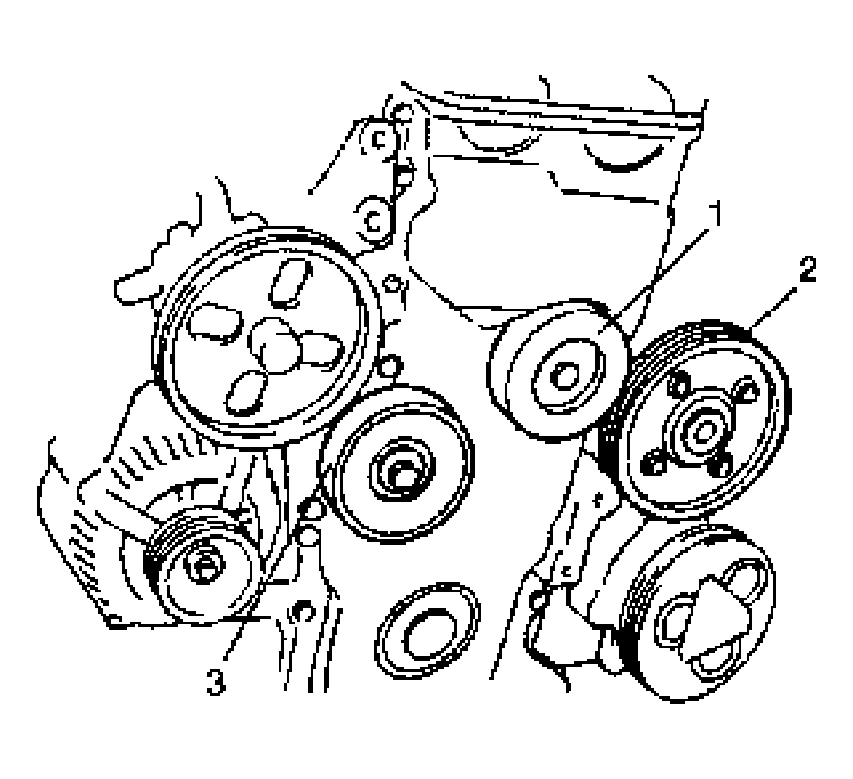

Remove generator belt idler pulley (1), water pump pulley (2) and generator belt tensioner (3).

Fig 4: Removing Generator Belt Idler Pulley
Courtesy of SUZUKI OF AMERICA CORP.
Remove timing chain cover (1) bolts (3) and nut (2).

Fig 5: Removing Timing Chain Cover Bolts And Nut
Courtesy of SUZUKI OF AMERICA CORP.
