Engine Cover Removal and Installation: Installation

  1. Install engine cover (2) from cylinder head cover.
  2. Install engine cover bolts (1).

    Tightening torque

    Engine cover bolt a: 8 N.m (0.8 kg-m, 5.8 lb-ft)

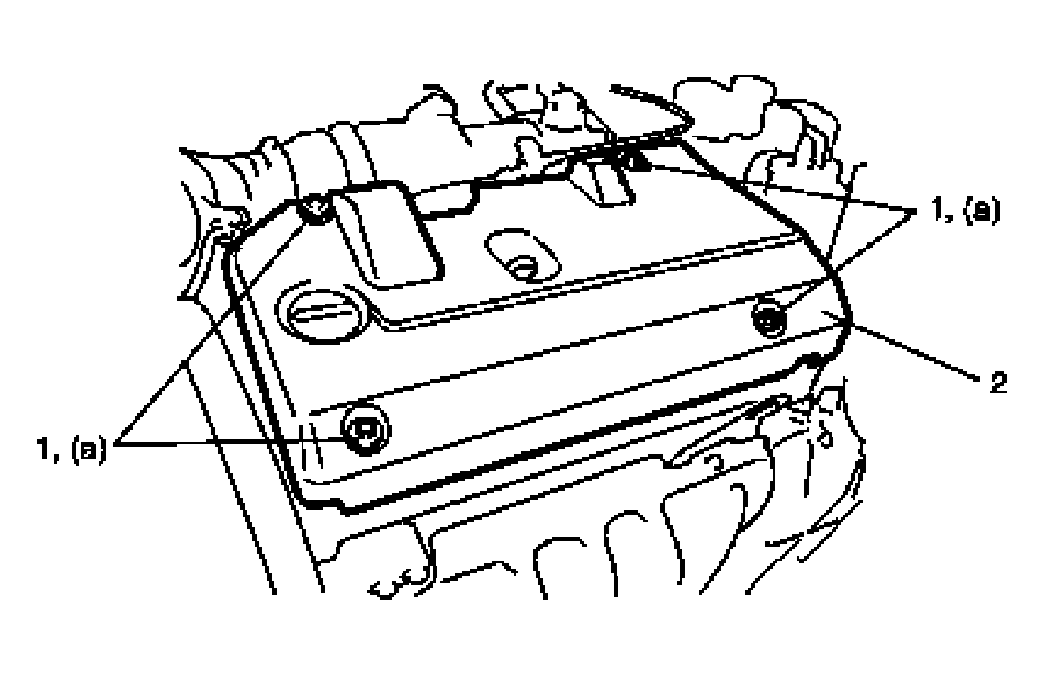

    Fig 1: Installing Engine Cover
    G04589686Courtesy of SUZUKI OF AMERICA CORP.
