Cylinder Block Heater (If Equipped) Components

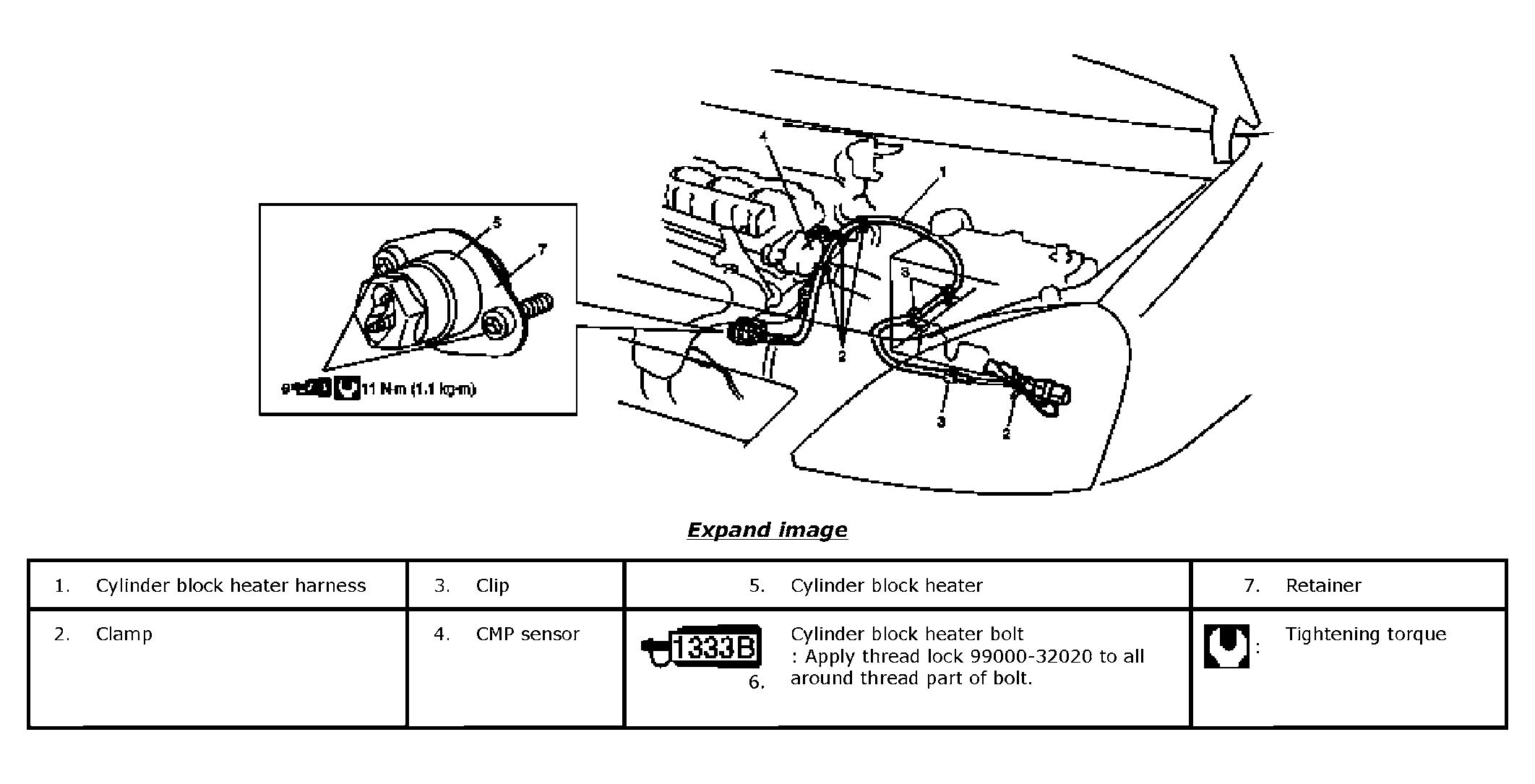

Fig 1: Identifying Cylinder Block Heater Components (With Tightening Torques)
G04589707Courtesy of SUZUKI OF AMERICA CORP.
