Instrument Panel Removal and Installation: Installation

Reverse removal procedure noting the following.

• When installing each part, be careful not to catch any cable or wiring harness.
• Tighten steering support member support bolts to specified torque.

  Tightening torque

  Steering support member support bolts a: 23 N.m (2.3 kg-m, 17.0 lb-ft)

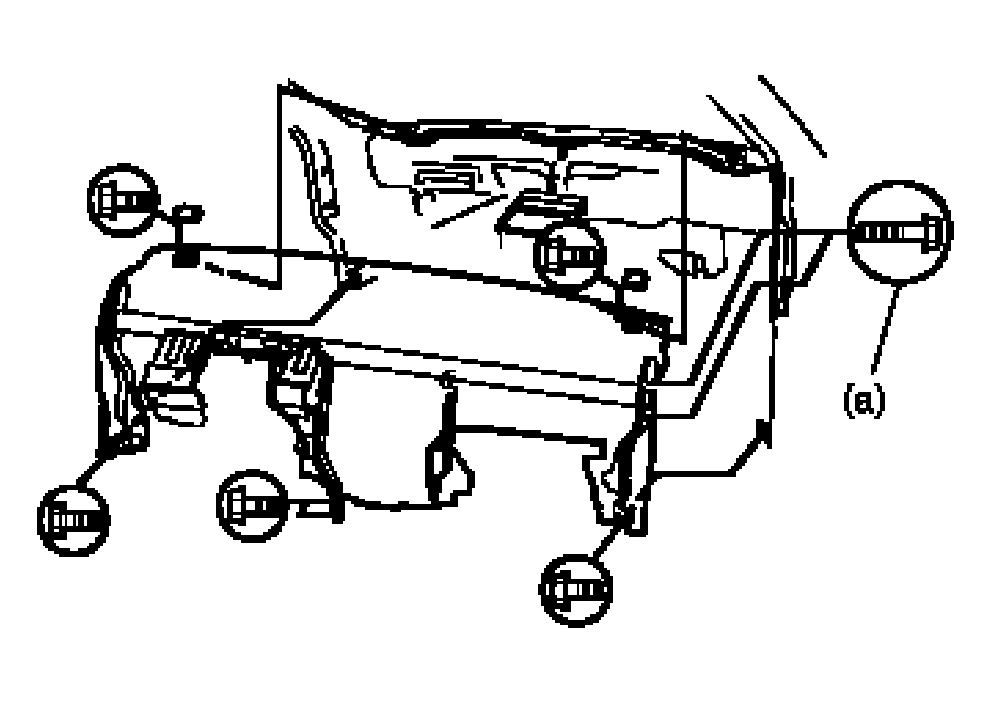

  Fig 1: Installing Steering Support Member Support Bolts

  Courtesy of SUZUKI OF AMERICA CORP.
• Install steering lower shaft referring to STEERING LOWER SHAFT REMOVAL AND INSTALLATION .
• Enable air bag system referring to ENABLING AIR BAG SYSTEM or ENABLING AIR BAG SYSTEM .
