Radio Assembly Removal and Installation: Removal

  1. Disconnect negative (-) cable at battery.
  2. Remove instrument panel center garnish trims (1) from instrument panel (2).
  3. Remove 4 mounting screws (3).
  4. Tilt instrument panel center garnish (4) and pull it through from instrument panel.

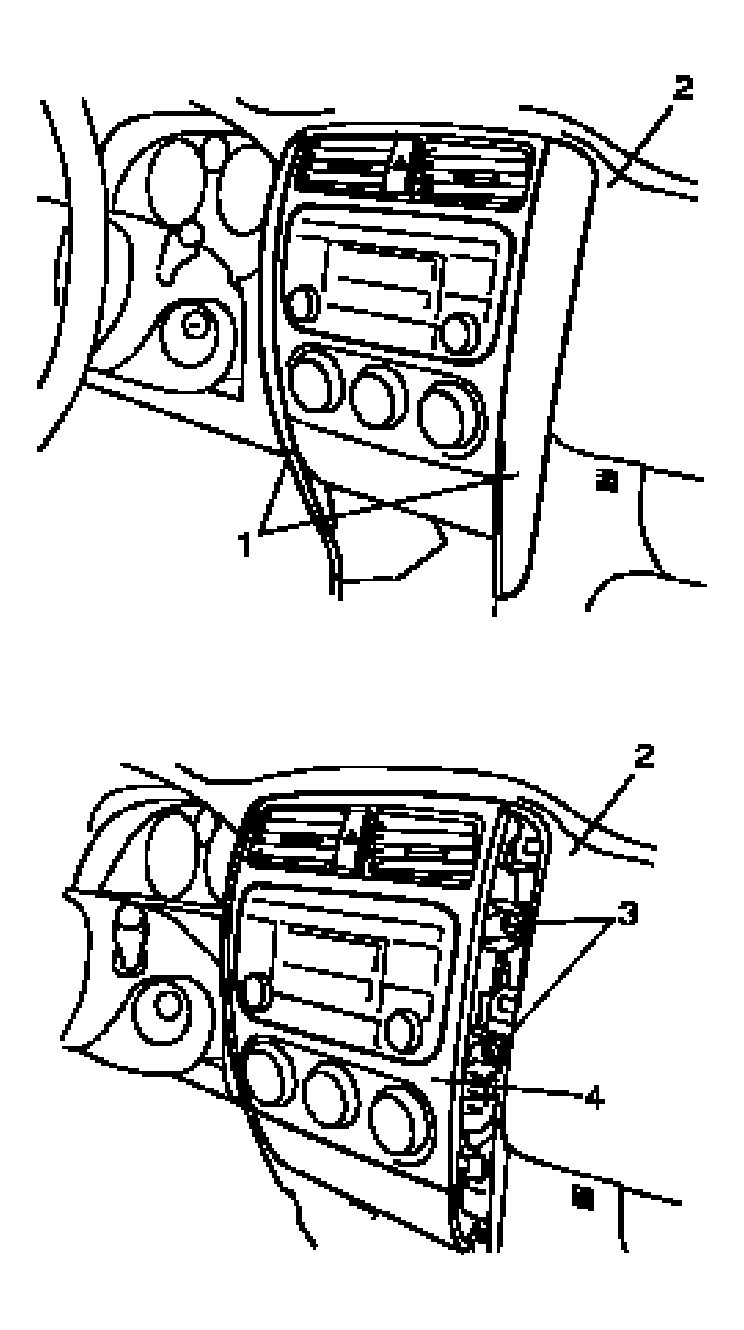

    Fig 1: Removing Instrument Panel Center Garnish Trims (1) From Instrument Panel (2)
    G04591599Courtesy of SUZUKI OF AMERICA CORP.
  5. Disconnect electrical connectors from radio assembly, HVAC control module and hazard switch.
  6. Remove instrument panel center garnish.
  7. Remove radio assembly.
