ABS Warning Lamp Check

  1. Turn ignition switch ON.
  2. Check that ABS warning lamp (1) comes ON for about 2 seconds and then goes off.

    If any faulty condition is found, advance to ABS Warning Lamp Does Not Come ON At Ignition Switch ON  ,  ABS Warning Lamp Comes ON Steady   or ABS Warning Lamp Flashes Continuously While Ignition Switch Is ON   .

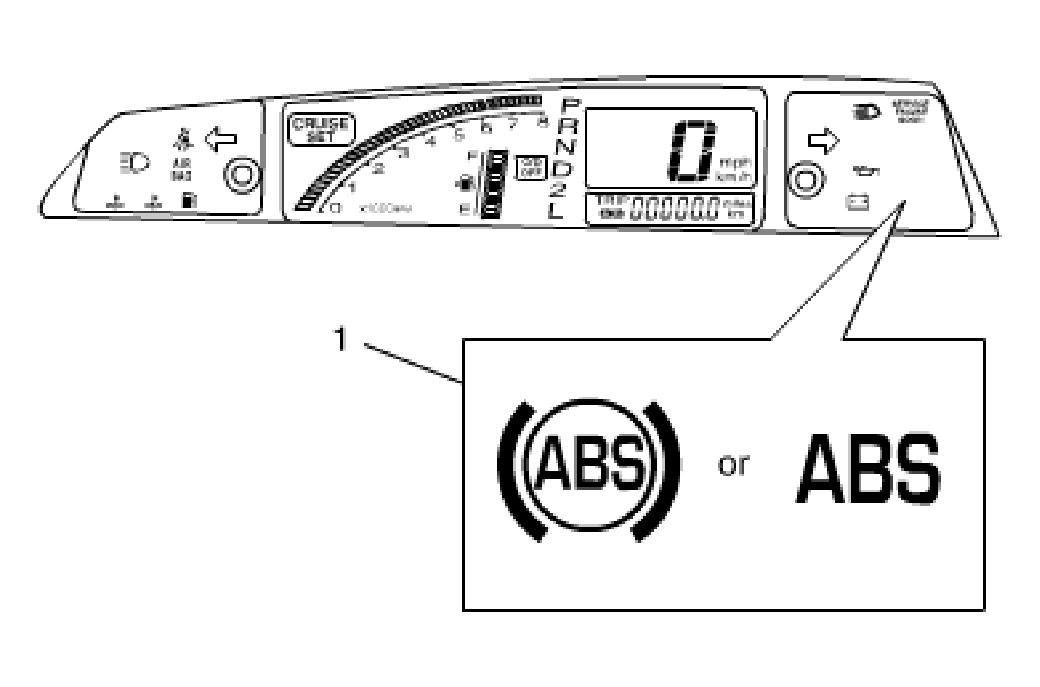

    Fig 1: Identifying ABS Warning Lamp
    G04590480Courtesy of SUZUKI OF AMERICA CORP.
