Parking Brake Cable Construction

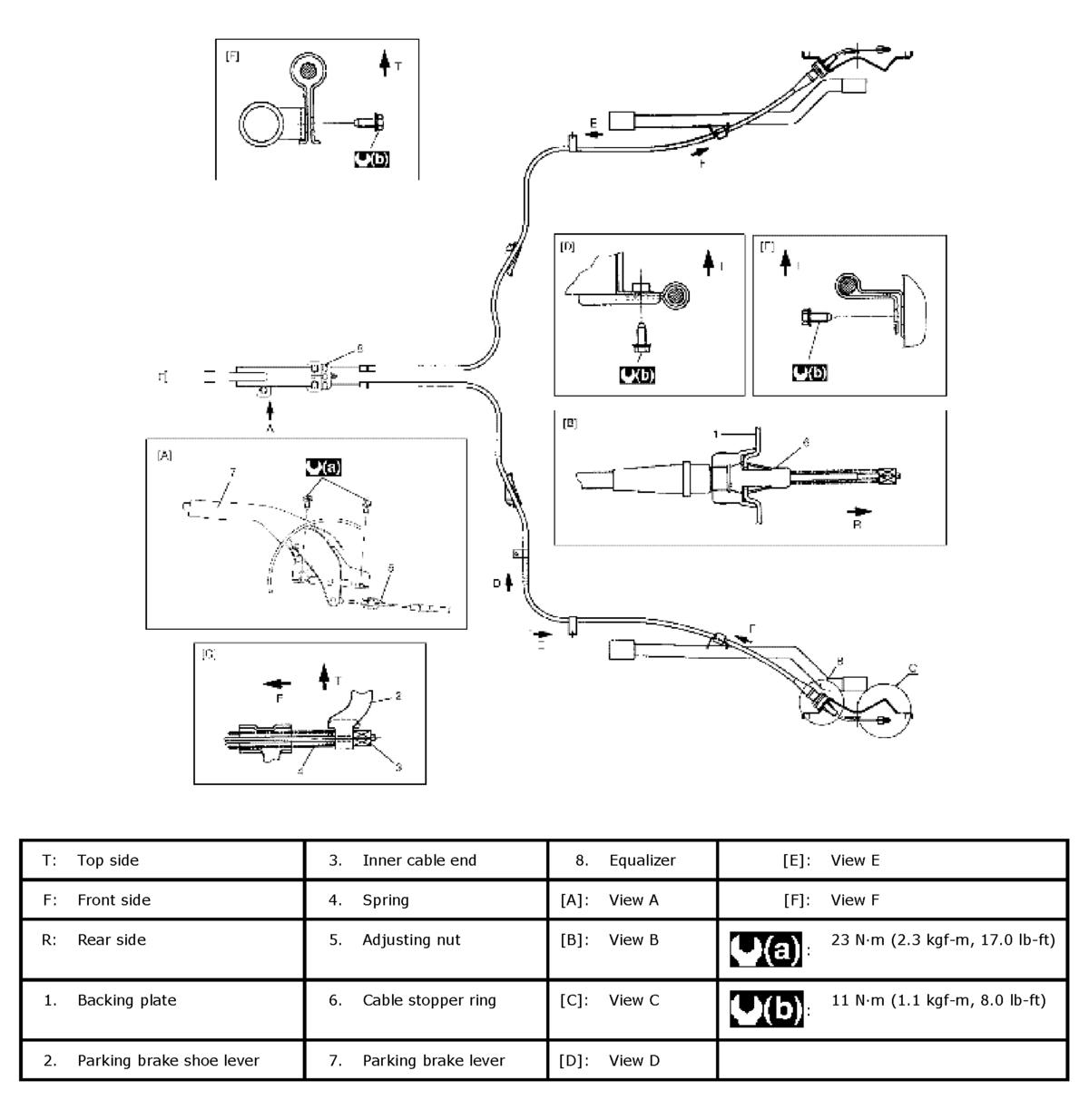

Fig 1: Parking Brake Cable Construction Diagram (With Tightening Torque)
G04590468Courtesy of SUZUKI OF AMERICA CORP.
