Cruise ON/OFF, Set/Coast, Resume/Accel and Cancel Switches Circuits Check

CRUISE ON/OFF STEP ACTION REFERENCE

Step	Action	YES	NO

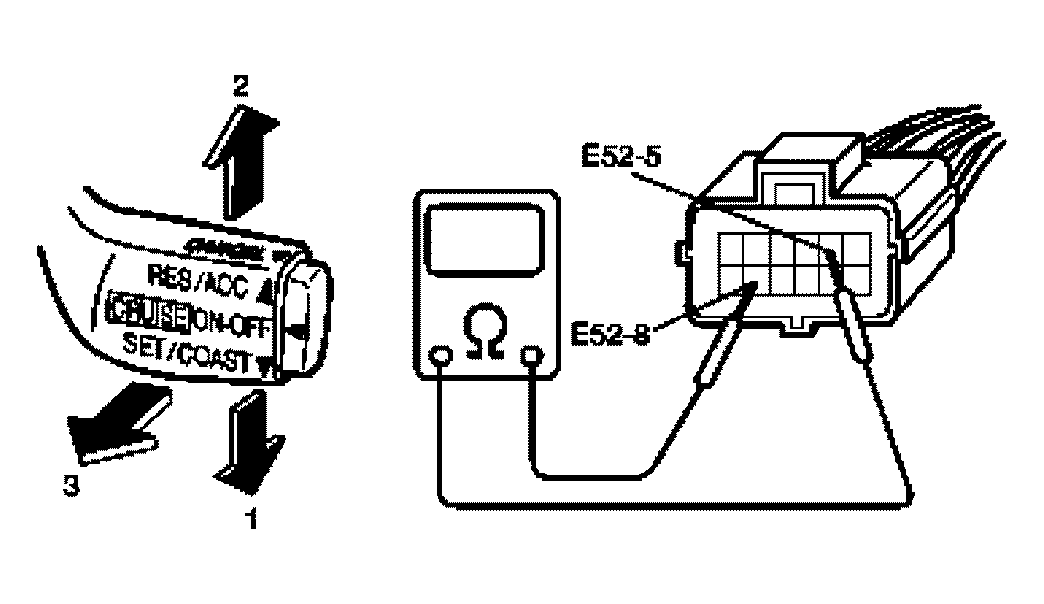

1	Set/coast, resume/accel and cancel switches circuit check  Disconnect connector from cruise control module with ignition switch OFF. Check for proper connection to cruise control module at terminal "E52-8". If OK, check resistance between terminal "E52-8" and "E52-5" under each condition as follows. Switch circuit specification (resistance)  All switches OFF: Infinity  SET/COAST switch moved down (ON) (1): 217 - 223 Ω  RESUME/ACCEL switch moved up (ON) (2): 900 - 920 Ω  CANCEL switch pulled (ON) (3): About 0 Ω  Are check results satisfactory?	Go to Step 3.	Go to Step 2.
2	Set/coast, resume/accel and cancel switches check  Check Set/Coast, Resume/Accel and Cancel Switches referring to CRUISE ON/OFF, SET/COAST, RESUME/ACCEL AND CANCEL SWITCHES INSPECTION . Is switch in good condition	"BLK/YEL" circuit, "LT GRN" circuit or contact coil is open or short.	Replace cruise control lever.
3	Cruise ON/OFF switch circuit check  Turn ignition switch ON and check voltage between terminal "E52-8" and ground under each condition as follows. Switch circuit specification (resistance)  Cruise ON/OFF switch released (OFF) (1): 0 V  Cruise ON/OFF switch pressed (ON) (1): 10 - 14 V  Are check results satisfactory?	Cruise control lever circuits are OK.	Go to Step 4.
4	Cruise ON/OFF switch check  Check cruise ON/OFF switch referring to CRUISE ON/OFF, SET/COAST, RESUME/ACCEL AND CANCEL SWITCHES INSPECTION . Is switch in good condition?	"BLK/WHT" circuit or contact coil is open or short.	Replace cruise control lever.
