Door Key Cylinder Switch (Driver and Passenger Side) Inspection

Check for continuity between terminals at each switch position. If check result is not as specified, replace key cylinder.

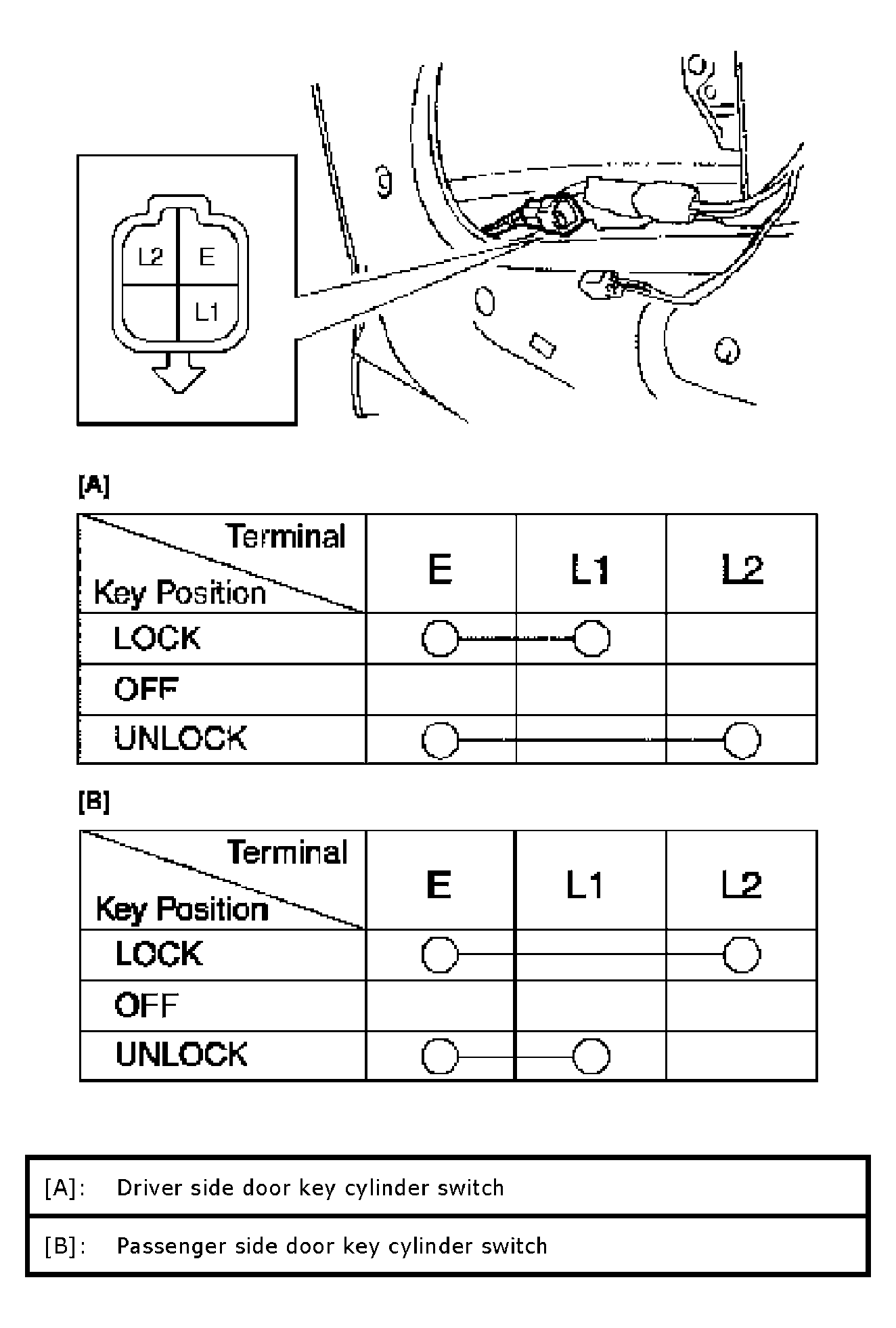

Fig 1: Inspecting Door Key Cylinder Switch (Driver And Passenger Side)

Courtesy of SUZUKI OF AMERICA CORP.
