Manual Transmission Unit Assembly

1. Set intermediate case (1) to vise (3).

   Clean mating surfaces of intermediate case both sides, if intermediate case is reused.

   Fig 1: Setting Intermediate Case To Vise

   Courtesy of SUZUKI OF AMERICA CORP.

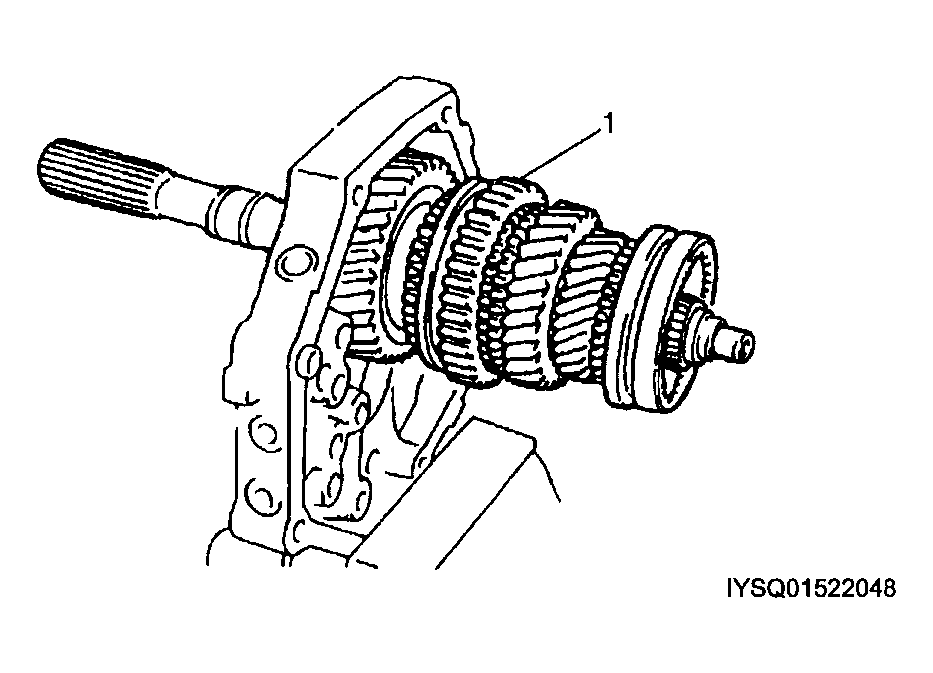

2. Install main shaft assembly (1) to intermediate case.
   Fig 2: Installing Main Shaft Assembly To Intermediate Case

   Courtesy of SUZUKI OF AMERICA CORP.
   NOTE: When fitting of intermediate case (1) and bearing is tight, tap rear face of intermediate case (1) with plastic hammer lightly as it will cause main shaft assembly (2) to install.
   Fig 3: Taping Rear Face Of Intermediate Case With Plastic Hammer

   Courtesy of SUZUKI OF AMERICA CORP.

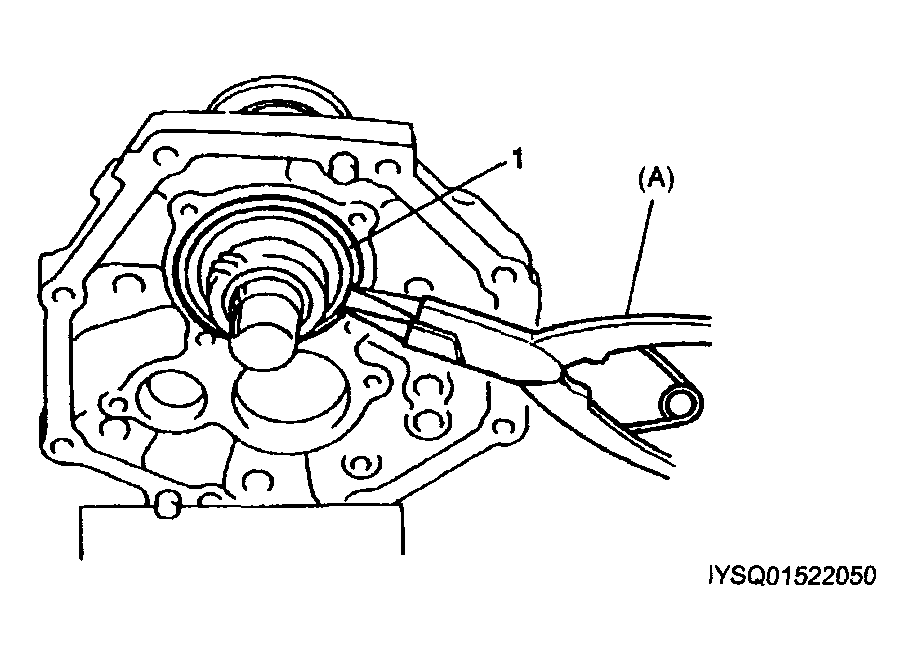

3. Fix with C-ring (1) by using special tool.

   Special tool

   (A): 09900-06107

   Fig 4: Fixing With C-Ring By Using Special Tool

   Courtesy of SUZUKI OF AMERICA CORP.

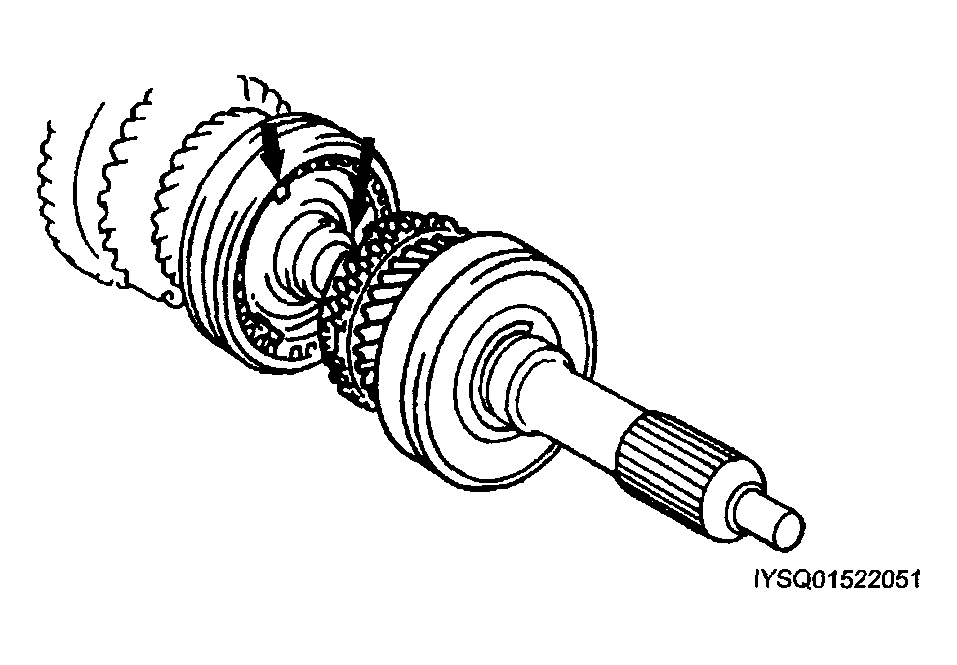

4. Align key slots of synchronizer ring and synchronizer keys and set input shaft assembly to main shaft assembly.

   Check that input shaft assembly turns lightly.

   Fig 5: Aligning Key Slots Of Synchronizer Ring And Synchronizer Keys

   Courtesy of SUZUKI OF AMERICA CORP.

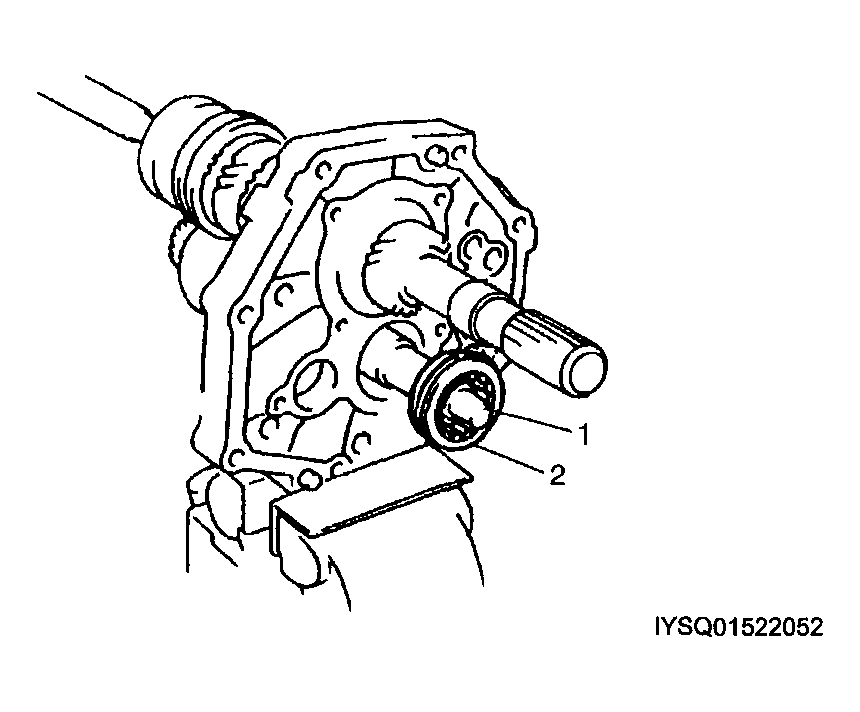

5. Install countershaft (1) and rear bearing (2) to intermediate case.
   NOTE: When fitting of intermediate case and bearing is tight, tap outer race of bearing lightly and evenly with plastic hammer.
   Fig 6: Installing Countershaft And Rear Bearing To Intermediate Case

   Courtesy of SUZUKI OF AMERICA CORP.
6. Install bearing plate (1).

   Tightening torque

   Bearing plate bolt (a): 19 N.m (1.9 kg-m, 14.0 lb-ft)

   Fig 7: Installing Bearing Plate

   Courtesy of SUZUKI OF AMERICA CORP.
7. Install reverse idle gear (1) and shaft (2).
   Fig 8: Installing Reverse Idle Gear And Shaft

   Courtesy of SUZUKI OF AMERICA CORP.
8. Tighten reverse gear shift bolt (1) to specification.

   Tightening torque

   Reverse gear shaft bolt (a): 18 N.m (1.8 kg-m, 13.0 lb-ft)

   Fig 9: Tightening Reverse Gear Shift Bolt To Specification

   Courtesy of SUZUKI OF AMERICA CORP.
9. Install reverse link stay (1).

   Tightening torque

   Reverse link stay bolt (a): 19 N.m (1.9 kg-m, 14.0 lb-ft)

   Fig 10: Installing Reverse Link Stay

   Courtesy of SUZUKI OF AMERICA CORP.
10. Set ball (1) and thrust washer (2) to countershaft.
    Fig 11: Setting Ball And Thrust Washer To Countershaft

    Courtesy of SUZUKI OF AMERICA CORP.
11. Install needle bearing (1), countershaft 5th gear (2) and synchronizer ring.
    NOTE: When setting synchronizer ring to sleeve of 5th gear, align synchronizer key slot to key.

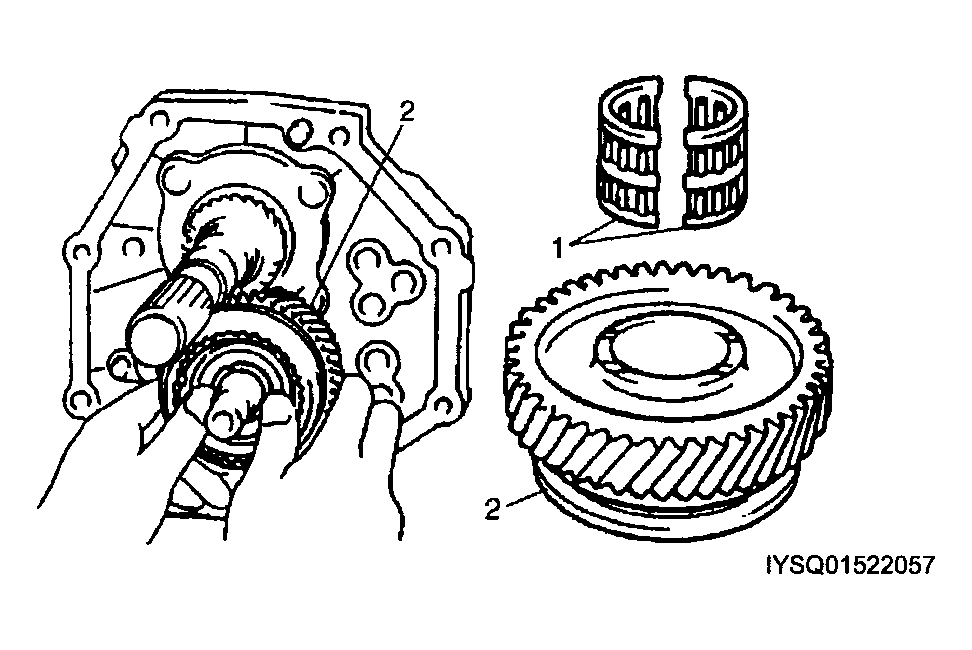

    Fig 12: Installing Needle Bearing, Countershaft 5th Gear And Synchronizer Ring

    Courtesy of SUZUKI OF AMERICA CORP.
12. Press-fit 5th speed synchronizer dog (1) to countershaft with hydraulic press (2) and special tool.

    Special tool

    (B): 09927-08220

    Fig 13: Pressing-Fit 5th Speed Synchronizer Dog To Countershaft With Hydraulic Press And Special Tool

    Courtesy of SUZUKI OF AMERICA CORP.
13. Select circlip (1) that will make clearance in circlip groove 0.1 mm (0.0039 in.) or less.
    CIRCLIP THICKNESS SPECIFICATIONS



    ID mark	Circlip thickness	ID mark	Circlip thickness
    A	2.80 - 2.85 mm (0.1102-0.1122 in.)	E	3.00 - 3.05 mm (0.1181-0.1201 in.)
    B	2.85-2.90 mm (0.1122-0.1142 in.)	F	3.05-3.10 mm (0.1201-0.1220 in.)
    C	2.90 - 2.95 mm (0.1142-0.1161 in.)	G	3.10-3.15 mm (0.1220-0.1240 in.)
    D	2.95 - 3.00 mm (0.1162-0.1181 in.)

    Fig 14: Selecting Circlip In Circlip Groove

    Courtesy of SUZUKI OF AMERICA CORP.
14. Fix with circlip (1) as shown in the figure and check that counter 5th gear turns lightly.
    Fig 15: Identifying Circlip

    Courtesy of SUZUKI OF AMERICA CORP.

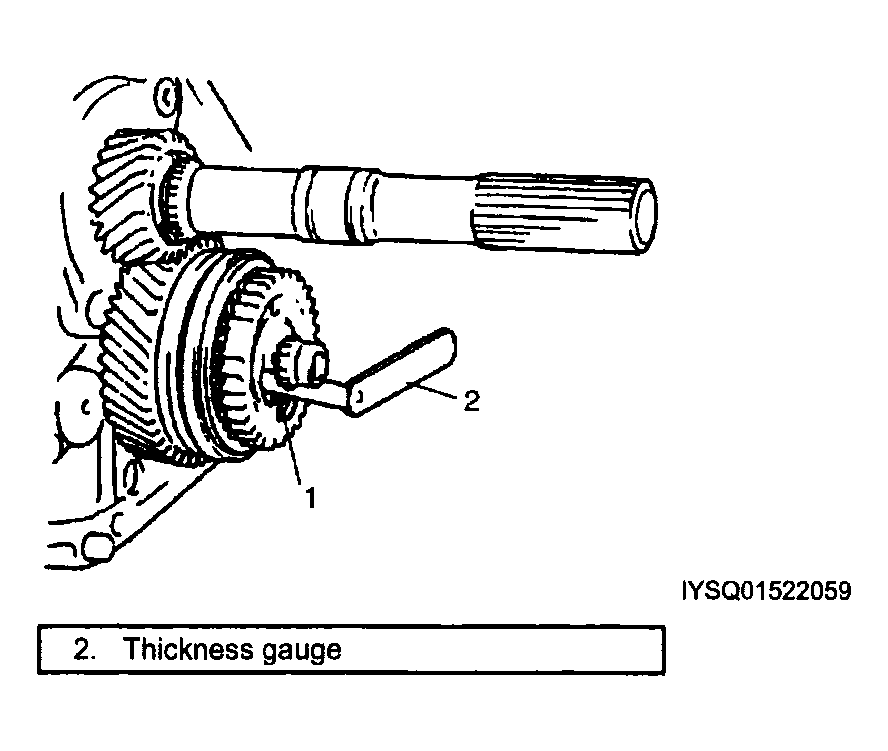

15. Check countershaft 5th gear (1) thrust clearance by using thickness gauge (2).

    If clearance exceeds limit, repeat Step 1) to 14) again or replace defective part(s).

    Countershaft 5th gear thrust clearance

    0.1 - 0.3 mm (0.0039 - 0.0118 in.)

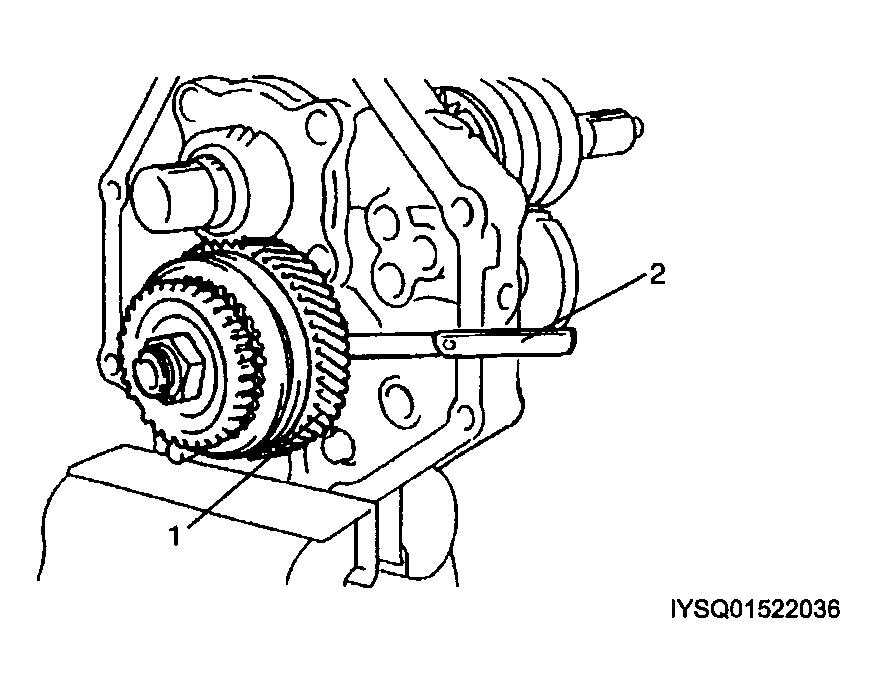

    Fig 16: Checking Countershaft 5th Gear Thrust Clearance By Using Thickness Gauge

    Courtesy of SUZUKI OF AMERICA CORP.
16. Install low speed gear shift fork, high speed gear shift fork and shaft.
17. Apply thread lock cement to thread of fork bolt and tighten bolt to specification.

    "A": Thread lock cement 99000-32020

    Tightening torque

    Shift fork bolt (a): 20 N.m (2.0 kg-m, 14.5 lb-ft)

    Fig 17: Installing Low Speed Gear Shift Fork, High Speed Gear Shift Fork And Shaft

    Courtesy of SUZUKI OF AMERICA CORP.

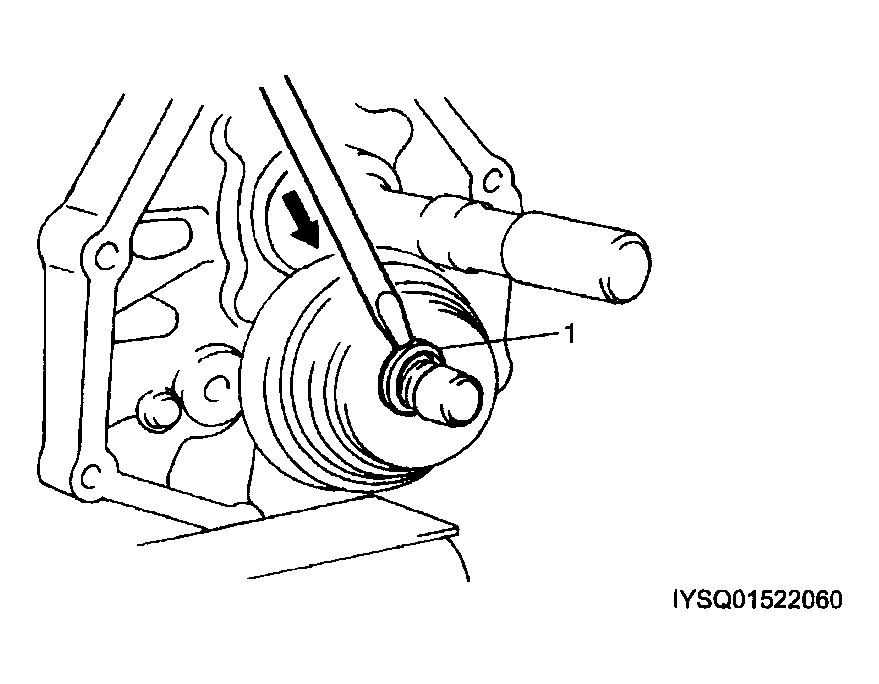

18. Fix new circlip (1) to high gear shift shaft by using lever or the like and hammer.

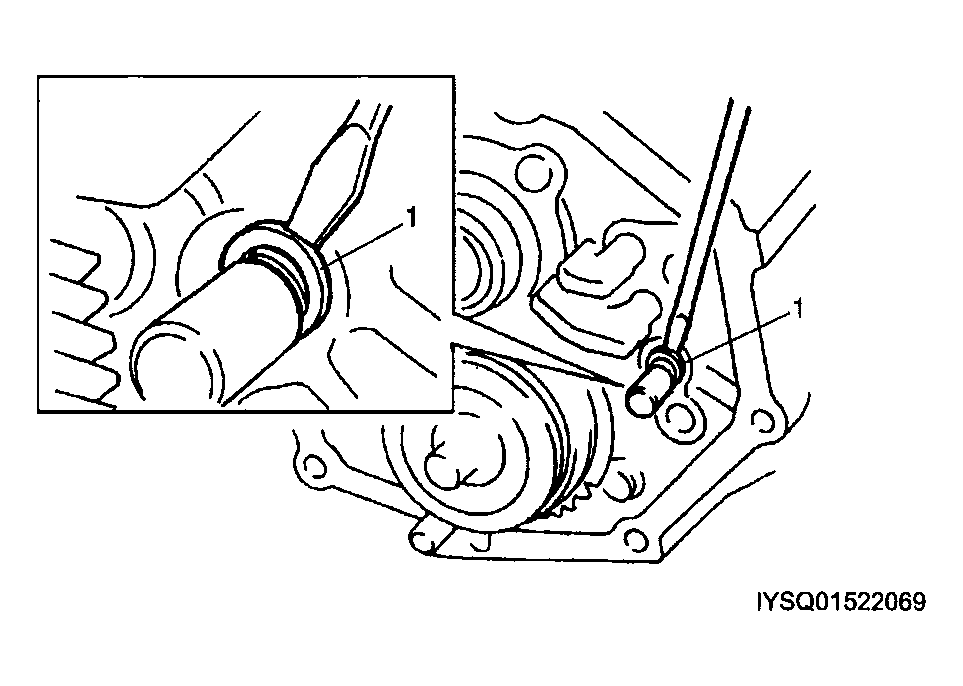

    Fig 18: Fixing Circlip To High Gear Shift Shaft

    Courtesy of SUZUKI OF AMERICA CORP.

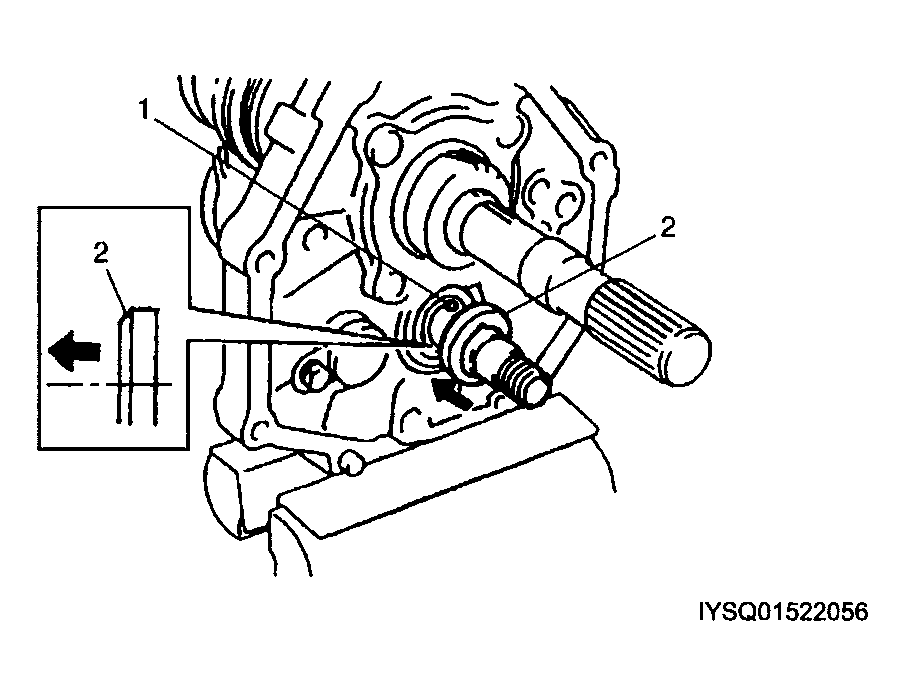

19. Apply grease "A" to locating roller No.2 (1) and install roller (1) to low gear shift shaft (2).

    "A": Grease 99000-25010

    Fig 19: Installing Roller To Low Gear Shift Shaft

    Courtesy of SUZUKI OF AMERICA CORP.
20. Supporting locating roller No. 3 (1) by magnet (2), insert low gear shift shaft (3) to intermediate case and low speed gear shift fork.
    Fig 20: Inserting Low Gear Shift Shaft To Intermediate Case And Low Speed Gear Shift Fork

    Courtesy of SUZUKI OF AMERICA CORP.
21. Apply thread lock cement "A" to thread of fork bolt and tighten bolt to specification.

    "A": Thread lock cement 99000-32020

    Tightening torque

    Shift fork bolt (a): 20 N.m (2.0 kg-m, 14.5 lb-ft)

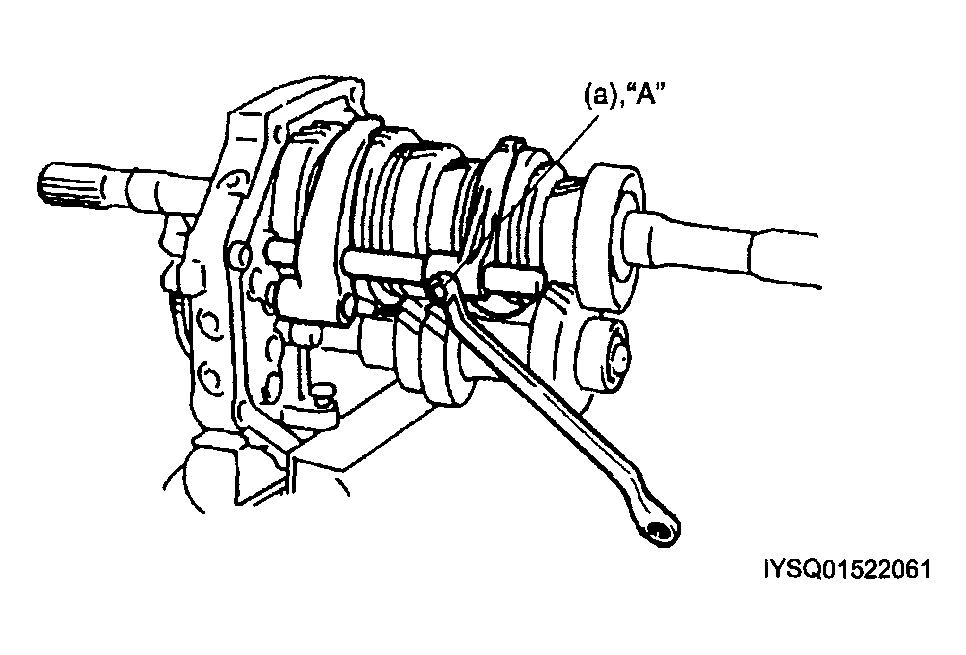

    Fig 21: Applying Thread Lock Cement To Thread Of Fork Bolt

    Courtesy of SUZUKI OF AMERICA CORP.
22. Fix with new circlip (1) to low gear shift shaft (2) by using lever or the like and hammer.

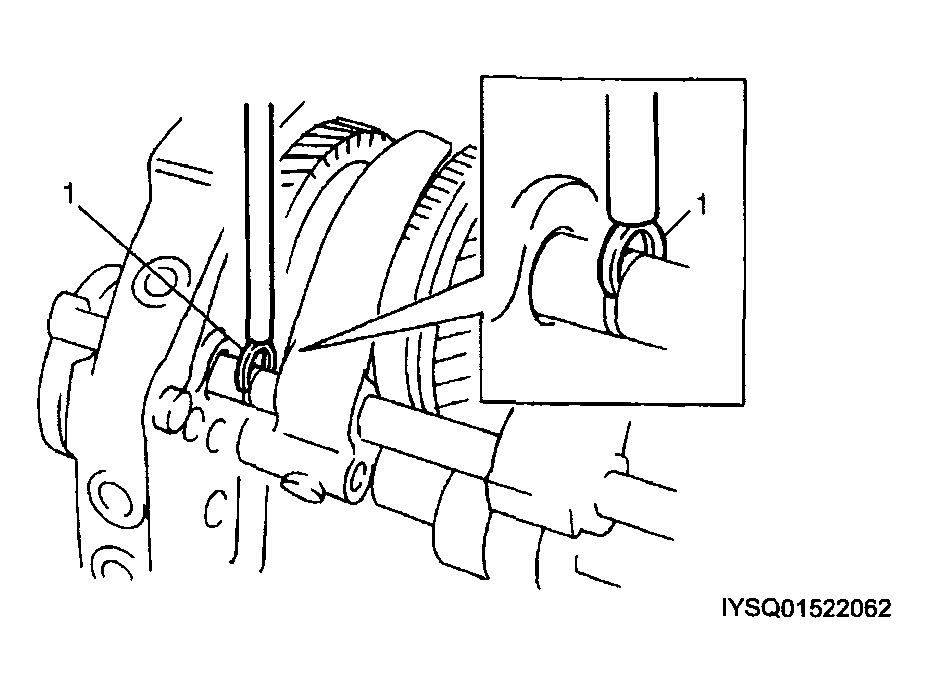

    Fig 22: Fixing With Circlip To Low Gear Shift Shaft

    Courtesy of SUZUKI OF AMERICA CORP.
23. Apply grease to locating roller No.2 (1) and install roller No. 2 (1) to reverse gear shift shaft (2).

    "A": Grease 99000-25010

    Fig 23: Installing Roller No. 2 To Reverse Gear Shift Shaft

    Courtesy of SUZUKI OF AMERICA CORP.
24. Assemble reverse gear shift link assembly.
25. Insert reverse gear shift shaft (2) into reverse gear shift link assembly and intermediate case while holding locating roller No.1 (1) with magnet (3).
26. Supporting locating roller No.1 (1) with magnet (3), insert reverse gear shift shaft (2) into reverse gear shift link and intermediate case.
Fig 24: Inserting Reverse Gear Shift Shaft Into Reverse Gear Shift Link Assembly
Courtesy of SUZUKI OF AMERICA CORP.
27. Fix with new circlip (1) to reverse gear shift shaft by using rod or the like and hammer.

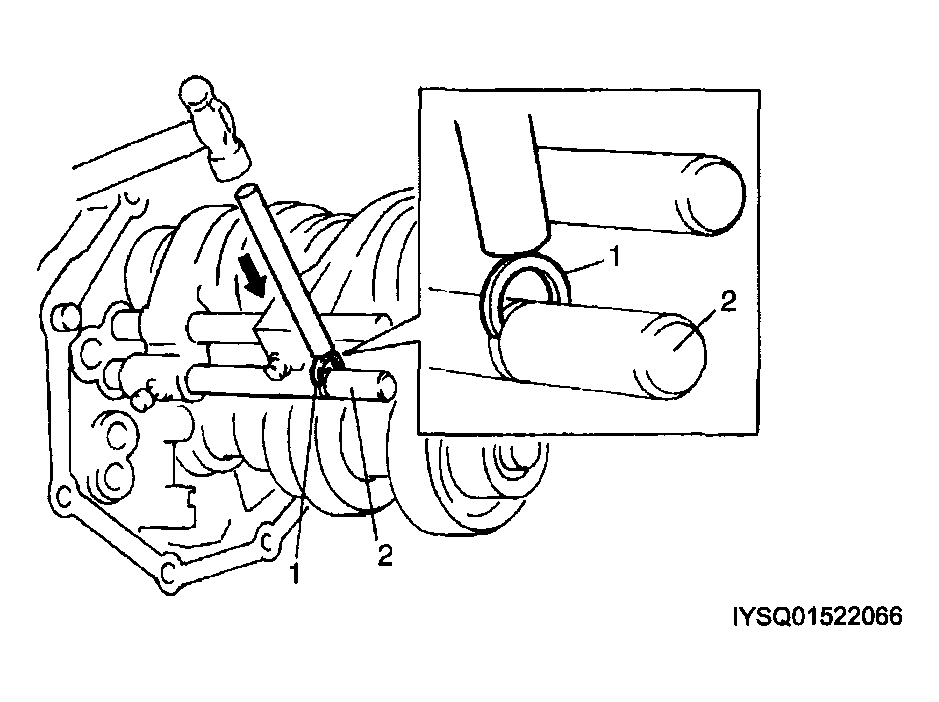

    Fig 25: Fixing With Circlip To Reverse Gear Shift Shaft

    Courtesy of SUZUKI OF AMERICA CORP.

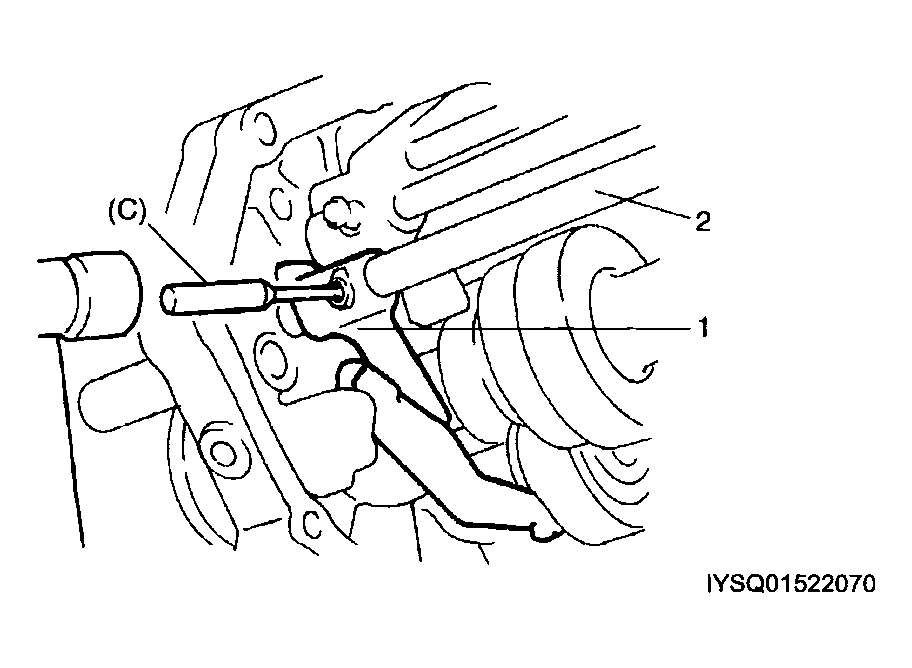

28. Drive pin into reverse gear shift link (1) and shaft by using special tool (C).

    Special tool

    (C): 09922-85811

    Fig 26: Removing Pin Into Reverse Gear Shift Link And Shaft By Using Special Tool

    Courtesy of SUZUKI OF AMERICA CORP.

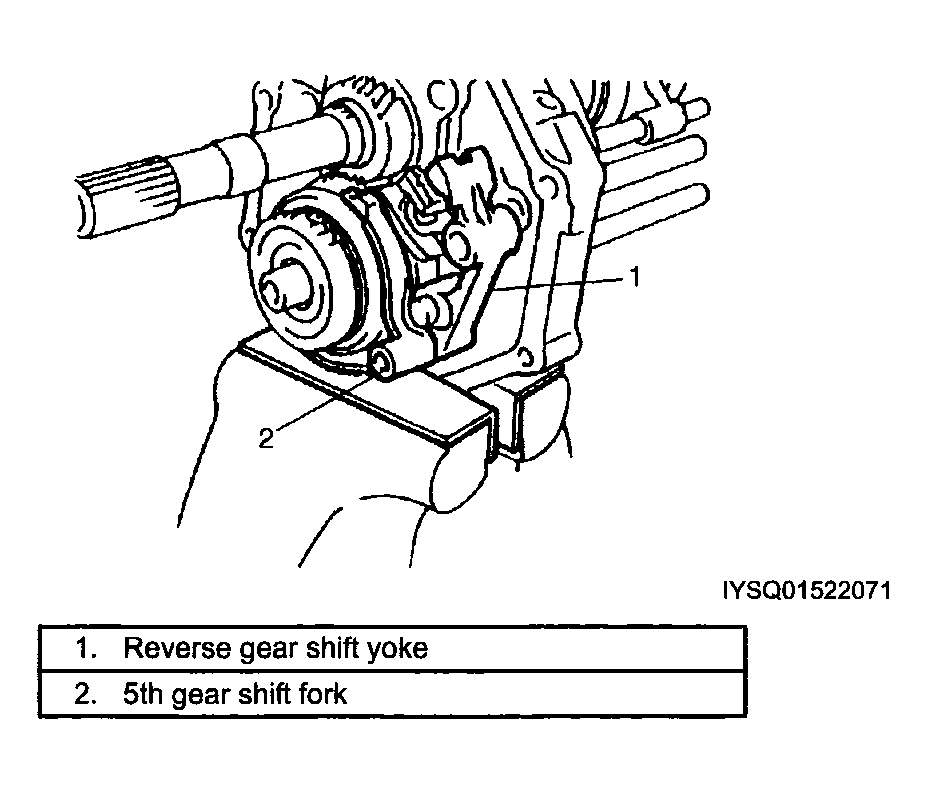

29. Install reverse gear shift yoke (1) and 5th gear shift fork (2) as shown in the figure.
    Fig 27: Installing Reverse Gear Shift Yoke And 5th Gear Shift Fork

    Courtesy of SUZUKI OF AMERICA CORP.

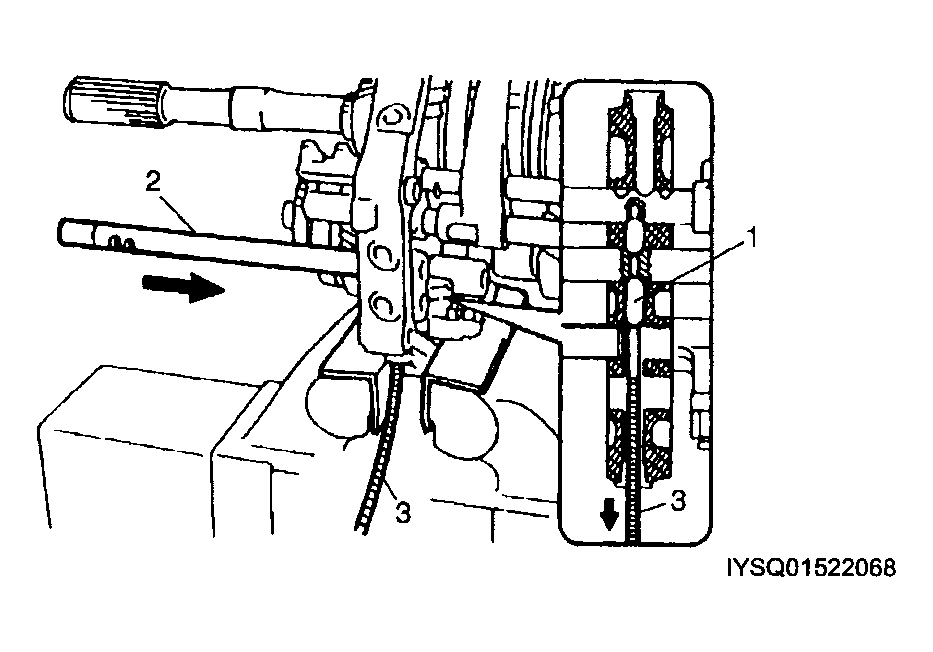

30. Supporting ball (1) with magnet (3) as shown in the figure, insert 5th gear shift shaft (2) to 5th gear shift fork (4) and reverse gear shift yoke (5).
    Fig 28: Inserting 5th Gear Shift Shaft To 5th Gear Shift Fork And Reverse Gear Shift Yoke

    Courtesy of SUZUKI OF AMERICA CORP.

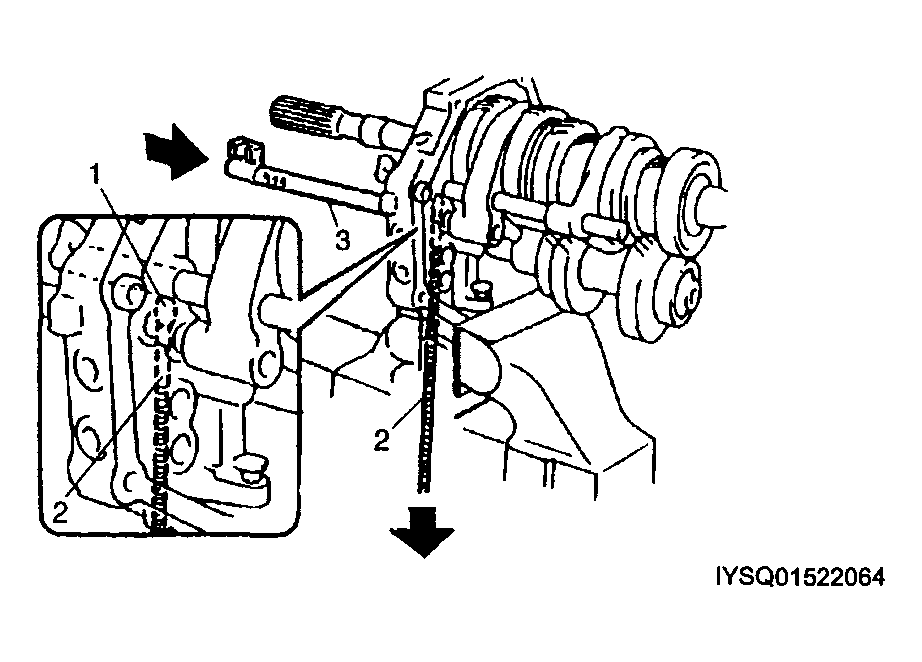

31. Supporting ball (1) with magnet (3) as shown in the figure, insert 5th gear shift shaft (2) into intermediate case (4).
    Fig 29: Inserting 5th Gear Shift Shaft Into Intermediate Case

    Courtesy of SUZUKI OF AMERICA CORP.
32. Apply thread lock cement "A" to thread of fork bolt and tighten bolt to specification.

    "A": Thread lock cement 99000-32020

    Tightening torque

    5th gear shift fork bolt (a): 20 N.m (2.0 kg-m, 14.5 lb-ft)

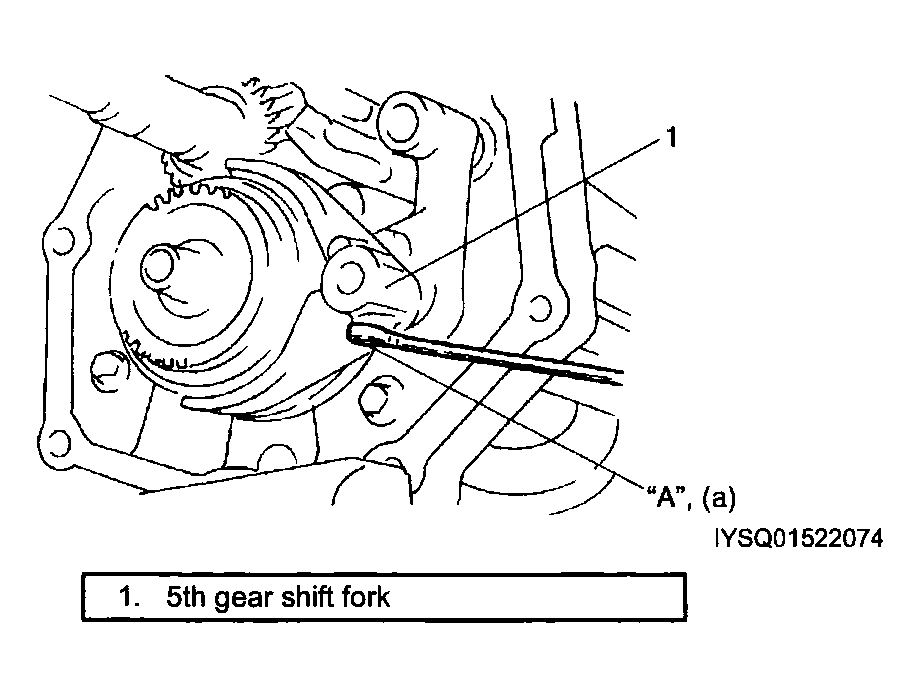

    Fig 30: Applying Thread Lock Cement To Thread Of Fork Bolt

    Courtesy of SUZUKI OF AMERICA CORP.
33. Insert 5th-reverse gear shift shaft (1) to reverse gear shift yoke and drive pin into shaft and yoke.

    Special tool

    (C): 09922-85811

    Fig 31: Inserting 5th-Reverse Gear Shift Shaft To Reverse Gear Shift Yoke

    Courtesy of SUZUKI OF AMERICA CORP.

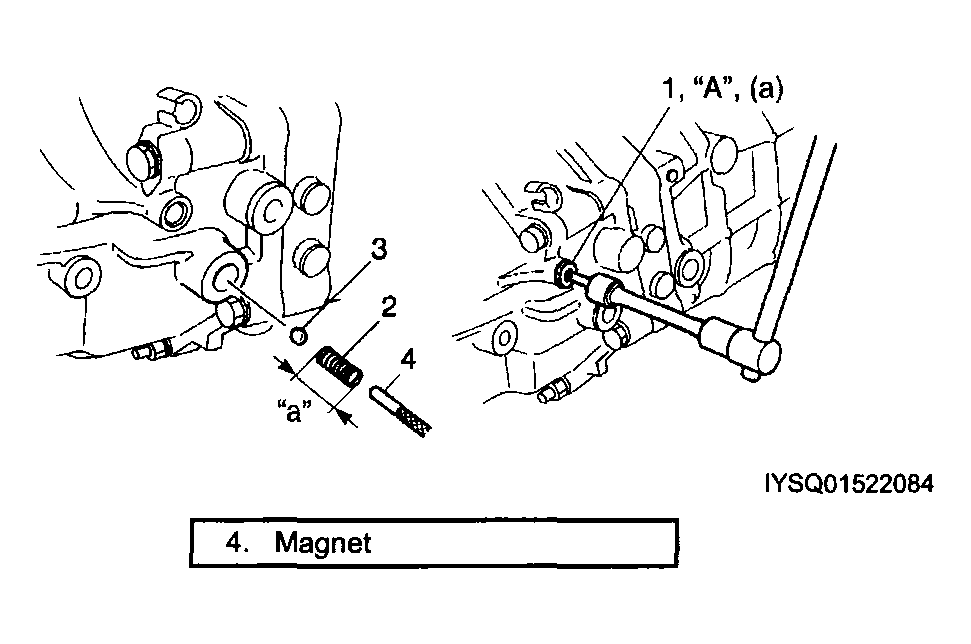

34. Install locating balls, locating springs and locating screw after checking free length of locating springs.
    LOCATING SPRINGS FREE LENGTH



    	Standard	Limit
    "a"	31.0 mm (1.22 in.)	30.1 mm (1.19 in.)
    "b"	20.2 mm (0.80 in.)	19.6 mm (0.77 in.)

    NOTE: For 5th gear locating spring, use shorter spring (1).

    "A": Thread lock cement 99000-32020

    Tightening torque

    Locating spring screw (a): 19 N.m (1.9 kg-m, 14.0 lb-ft)

    Fig 32: Installing Locating Balls, Locating Springs And Locating Screw

    Courtesy of SUZUKI OF AMERICA CORP.
35. Place intermediate case assembly upright as shown in the figure by using workbench or the like.
    Fig 33: Placing Intermediate Case Assembly Upright

    Courtesy of SUZUKI OF AMERICA CORP.
36. Apply sealant evenly to front case side of intermediate case (1) as shown in the figure.

    "A": Sealant 99000-31110

    Fig 34: Applying Sealant Evenly To Front Case Side Of Intermediate Case

    Courtesy of SUZUKI OF AMERICA CORP.
37. Clean mating surface of front case (1) and install it to intermediate case.
    Fig 35: Installing Front Case To Intermediate Case

    Courtesy of SUZUKI OF AMERICA CORP.
38. Fix C-rings (1, 2) to bearings as shown in the figure.

    Special tool

    (A): 09900-06107

    Fig 36: Fixing C-Rings To Bearings

    Courtesy of SUZUKI OF AMERICA CORP.

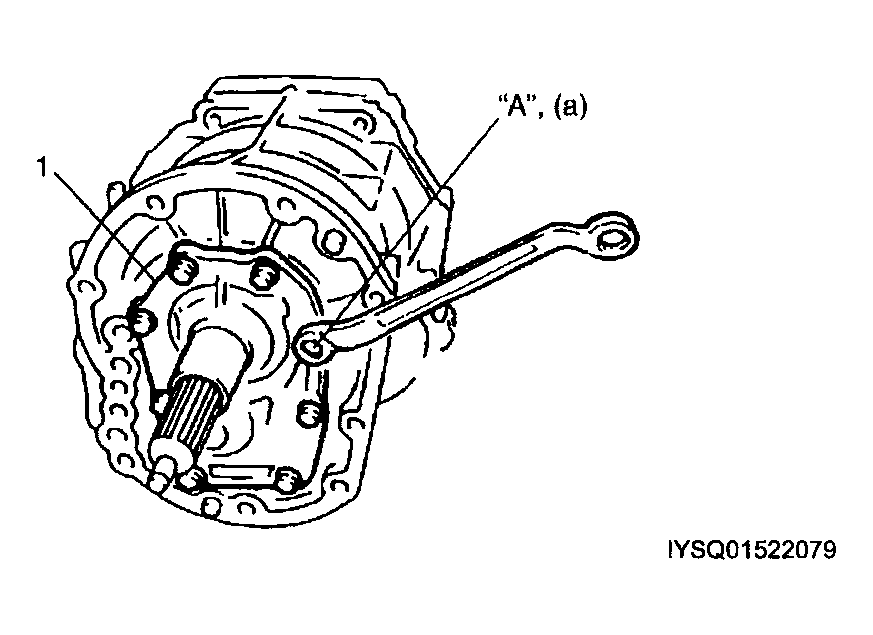

39. Apply cement "A" to input shaft bearing retainer bolt and install input shaft bearing retainer (1), new gasket and its bolts.

    "A": Thread lock cement 99000-32020

    Tightening torque

    Input shaft bearing retainer bolt (a): 17 N.m (1.7 kg-m, 12.5 lb-ft)

    Fig 37: Applying Cement To Input Shaft Bearing Retainer Bolt

    Courtesy of SUZUKI OF AMERICA CORP.
40. Clean mating surface of rear case and apply sealant evenly to rear case side of intermediate case.

    : Sealant 99000-31110

41. Install rear case to intermediate case.

    Tightening torque

    Rear case to intermediate case bolt (a): 35 N.m (3.5 kg-m, 25.5 lb-ft)

    Fig 38: Installing Rear Case To Intermediate Case

    Courtesy of SUZUKI OF AMERICA CORP.
42. With tip end of gear shift shaft inner lever (1) hooked on head of gear shift shaft (2), insert gear shift inner shaft (3) into gear shift shaft inner lever.

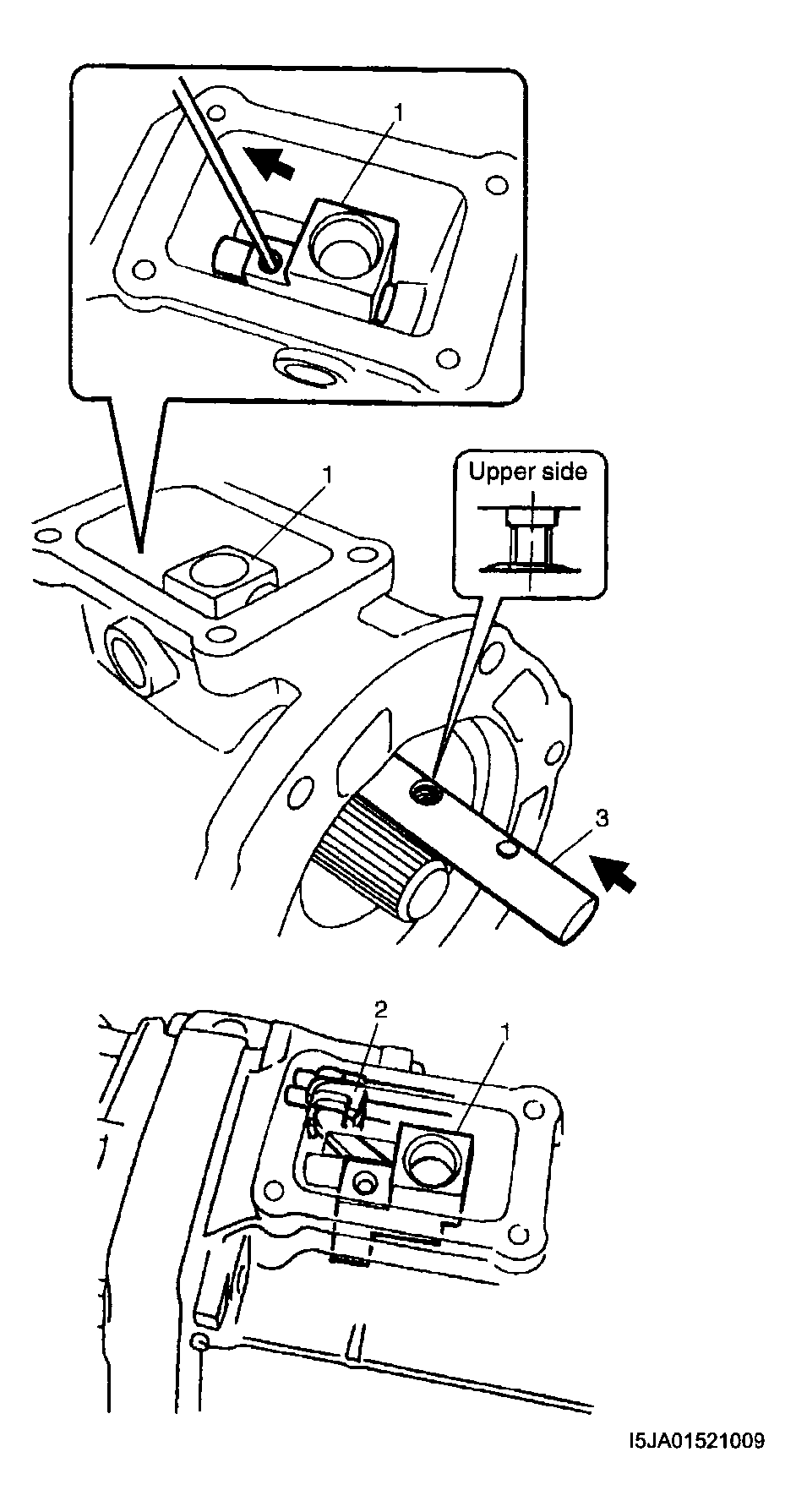

    Fig 39: Inserting Gear Shift Inner Shaft Into Gear Shift Shaft Inner Lever

    Courtesy of SUZUKI OF AMERICA CORP.
43. Apply cement "A" to inner gear shift shaft bolt / plug and tighten them to specification.

    "A": Thread lock cement 99000-32020

    Tightening torque

    Gear shift shaft inner bolt (a): 39 N.m (3.9 kg-m, 28.5 lb-ft)

    Gear shift shaft inner plug (b): 19 N.m (1.9 kg-m, 14.0 lb-ft)

    Fig 40: Applying Cement To Inner Gear Shift Shaft Bolt

    Courtesy of SUZUKI OF AMERICA CORP.

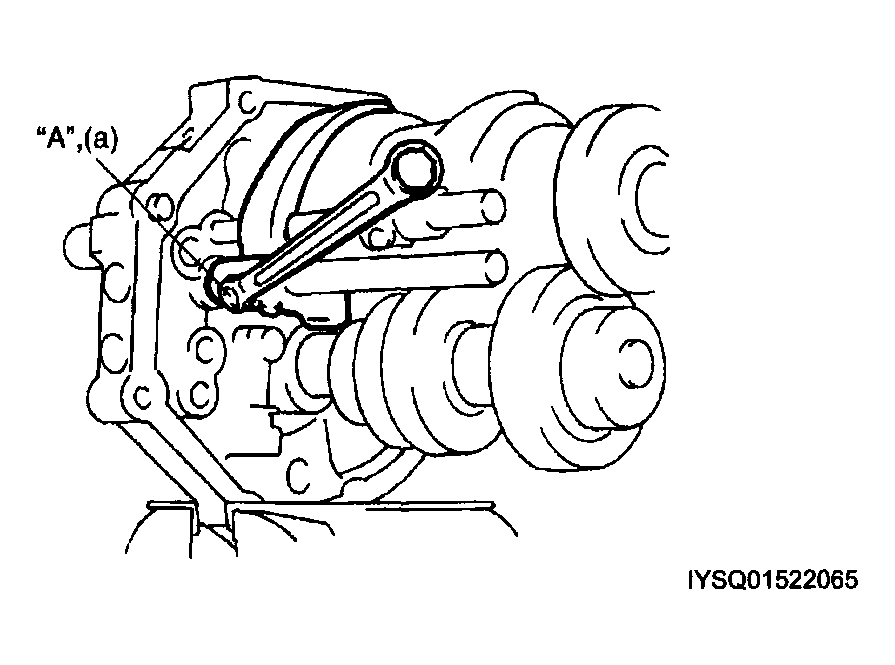

44. Tighten return spring low bolt and return spring reverse bolt (black color) (1).
    NOTE: Install return spring reverse bolt (black color) (1) to left side of case.

    Tightening torque

    Return spring reverse bolt (black color) (a): 28 N.m (2.8 kg-m, 20.5 lb-ft)

    Fig 41: Installing Return Spring Reverse Bolt To Left Side Of Case

    Courtesy of SUZUKI OF AMERICA CORP.
45. Apply cement to locating screw (1) and install locating ball (3), locating spring (2) and screw to rear case.

    Locating spring free length "a" Standard: 22.1 mm (0.87 in.) Limit: 21.4 mm (0.84 in.)

    "A": Thread lock cement 99000-32020

    Tightening torque

    Locating screw (a): 19 N.m (1.9 kg-m, 14.0 lb-ft)

    Fig 42: Installing Locating Ball, Locating Spring And Screw To Rear Case

    Courtesy of SUZUKI OF AMERICA CORP.
46. Install back-up light switch and new gasket.

    Tightening torque

    Back-up light switch (a): 45 N.m (4.5 kg-m, 32.5 lb-ft)

    Fig 43: Installing Back-Up Light Switch And Gasket

    Courtesy of SUZUKI OF AMERICA CORP.

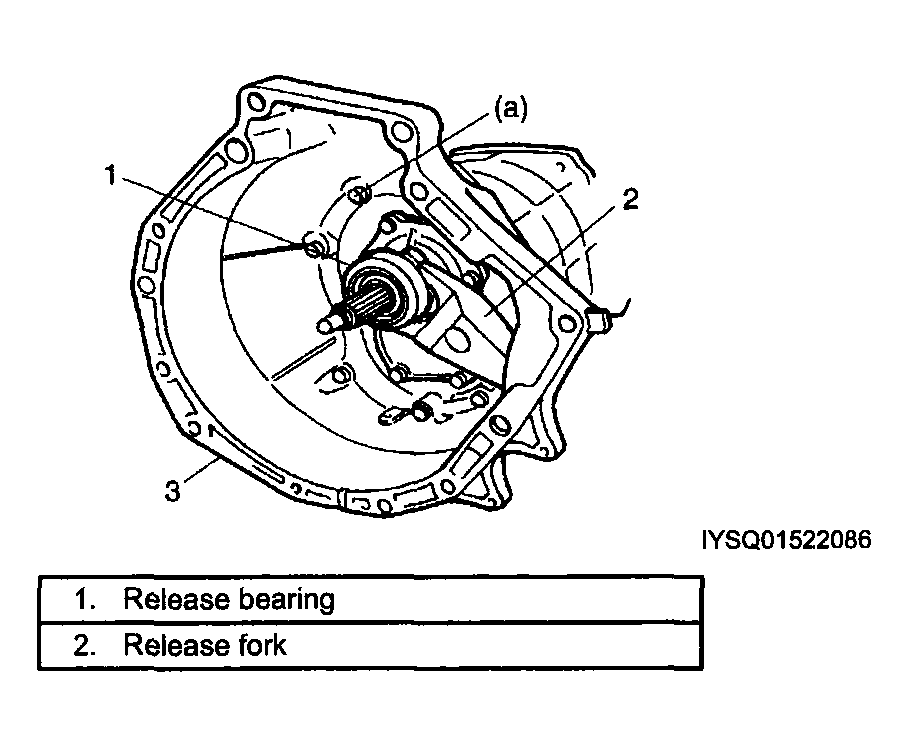

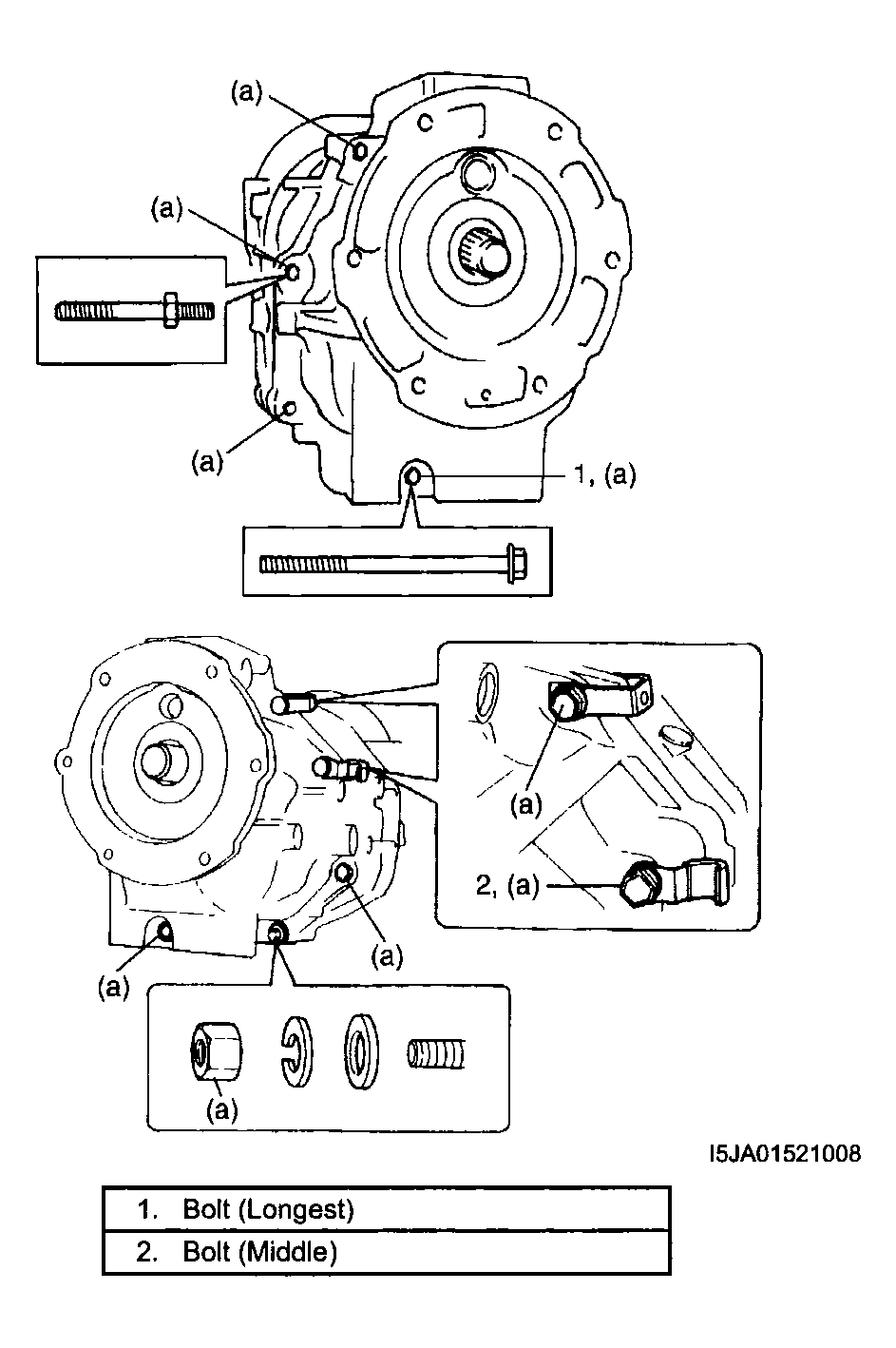

47. Install clutch housing (3) and torque its bolts to specification.

Tightening torque

Clutch housing bolt (a): 50 N.m (5.0 kg-m, 36.5 lb-ft)

Fig 44: Installing Clutch Housing To Specification
