Input and Countershaft Components

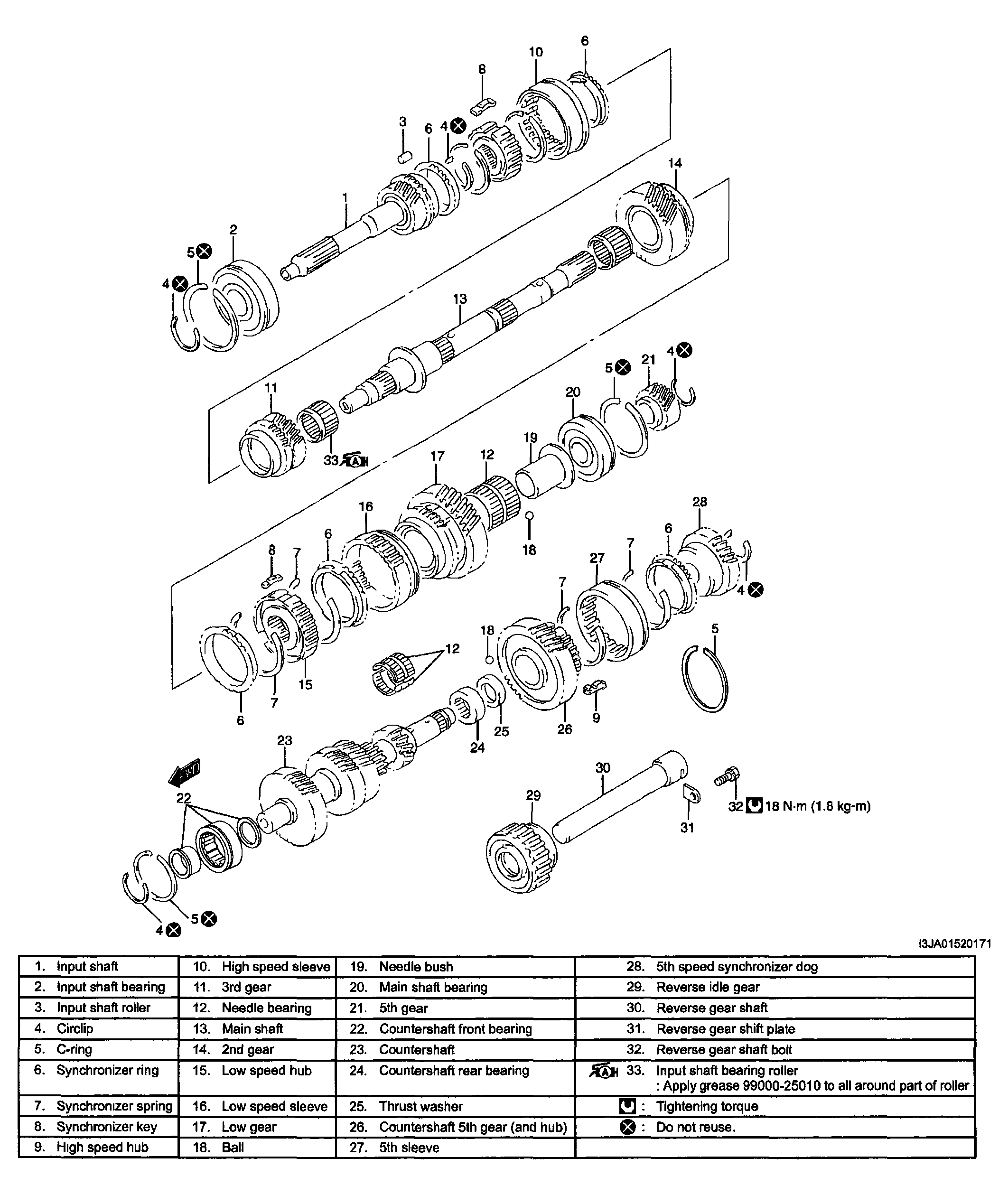

Fig 1: Identifying Input And Countershaft Components
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
