Transmission Range Sensor Inspection and Adjustment

1. Manual select lever to "N" range.
2. Check that center line (2) on manual shift and "N" reference line (1) on sensor are aligned. If not, loosen sensor bolt (3) and align them.
   Fig 1: Aligning Center Line On Manual Shift And "N" Reference Line On Sensor

   Courtesy of SUZUKI OF AMERICA CORP.
3. Check that engine starts in "N" and "P" ranges but it doesn't start in "D", "3", "L" or "R" range. Also, check that back-up lamp lights in "R" range. If faulty condition cannot be corrected by adjustment, disconnect transmission range sensor connector and check that continuity exists as shown by moving select lever.

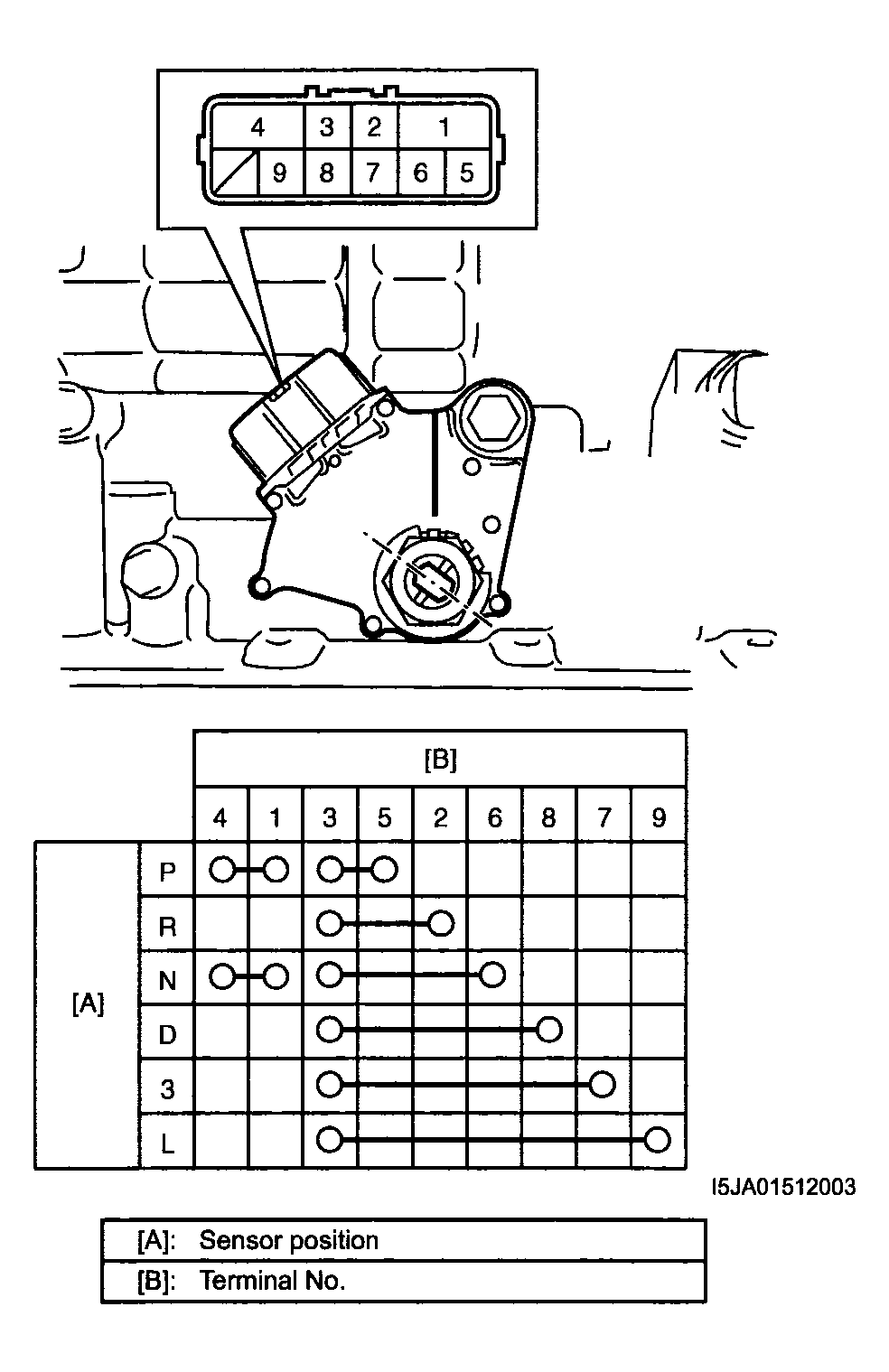

Fig 2: Identifying Transmission Range Sensor Connector

Courtesy of SUZUKI OF AMERICA CORP.
