Transmission Fluid Temperature Sensor A and B Inspection

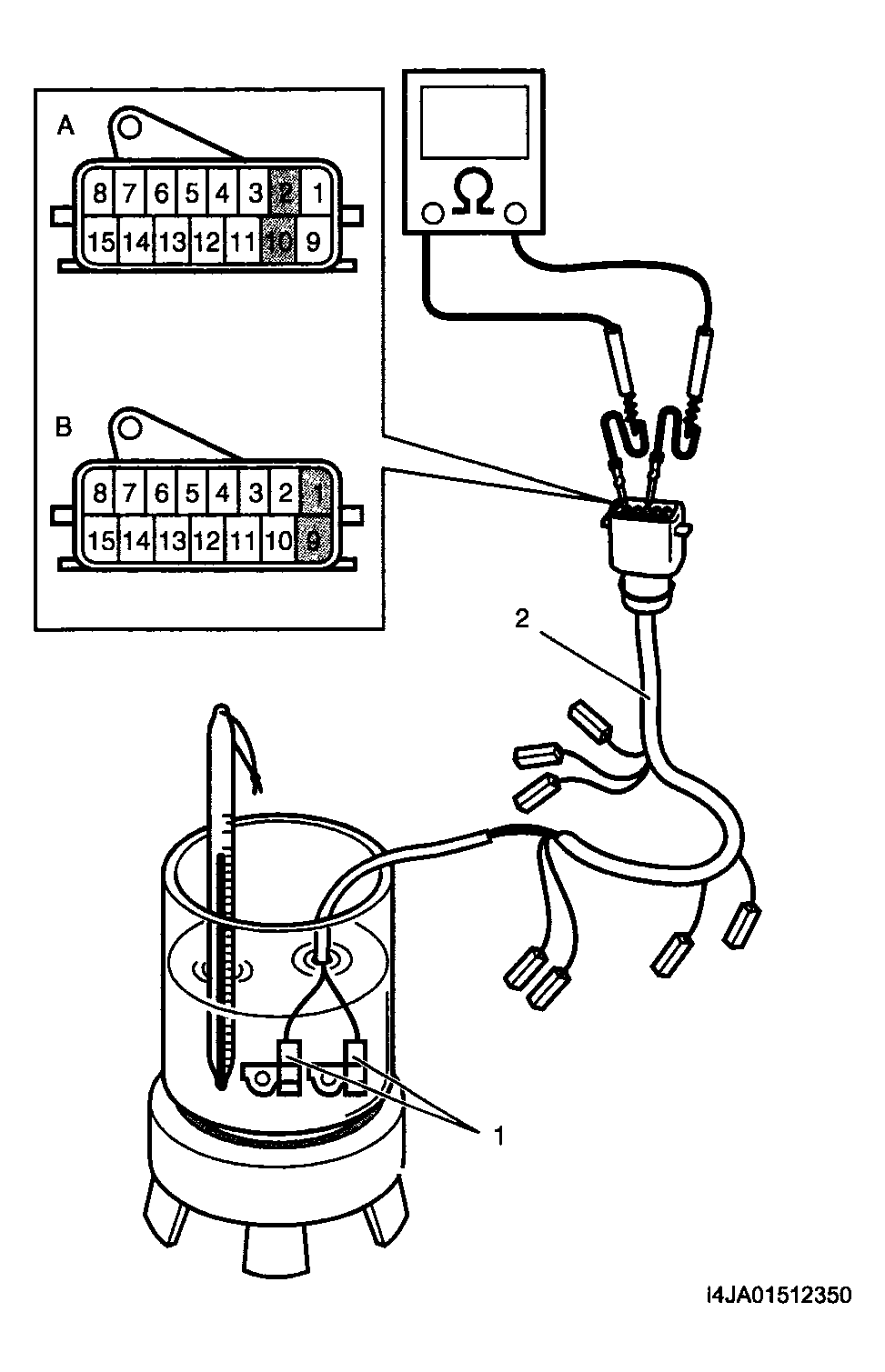

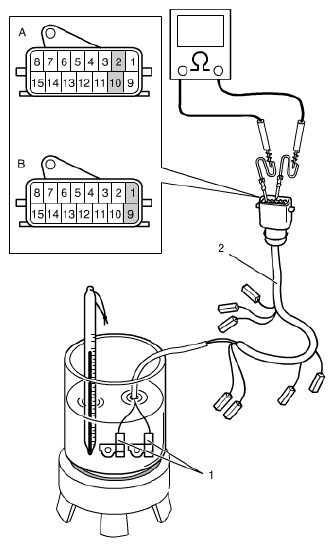

Immerse transmission fluid temperature sensor A and B (1) in water or oil. Check transmission fluid temperature sensor A or B resistance between terminals of connector. Thus make sure its resistance decreases as temperature rises.
Transmission fluid temperature sensor A and B resistance
10 °C (50 °F): 6.445 kΩ
25 °C (77 °F): 3.5 kΩ
110 °C (230 °F): 0.247 kΩ
