Power / Normal Change Switch Inspection

  1. Pull out Power / Normal Change Switch from front center console box.
  2. Disconnect Power / Normal Change Switch connector.
  3. Check continuity between Power / Normal Change Switch terminals.
POWER/NORMAL CHANGE SWITCH SPECIFICATION

Power / Normal change switch Normal position Power position
Continuity No continuity Continuity

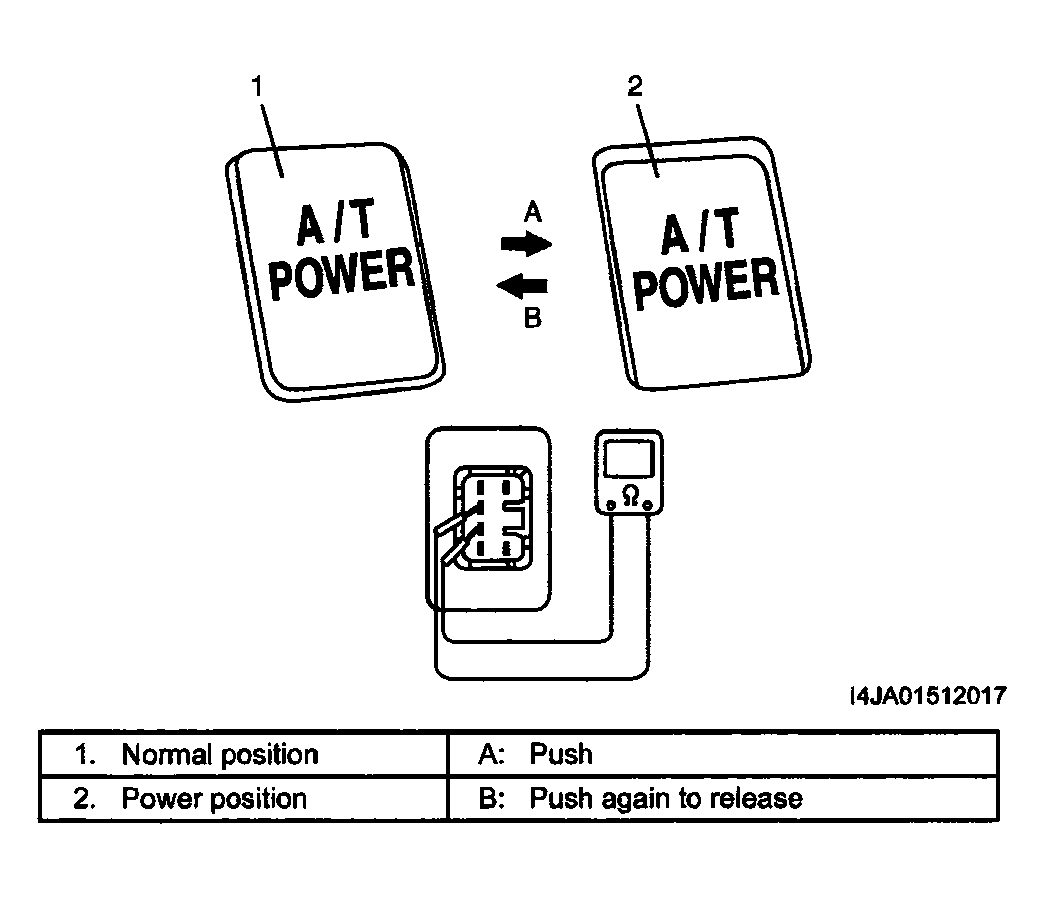

Fig 1: Checking Continuity Between Power/Normal Change Switch Terminals
G04099860Courtesy of SUZUKI OF AMERICA CORP.
