Oil Pump Disassembly and Assembly: Disassembly

  1. Remove oil pump oil seal (1) by using special tool.
    CAUTION: Be careful not to damage bushing and oil pump body.

    Special tool

    (A): 09913-50121

    Fig 1: Removing Oil Pump Oil Seal
    G04099977Courtesy of SUZUKI OF AMERICA CORP.
  2. Remove 3 clutch drum oil seal rings (1).
    NOTE: Be careful not to open seal ring more than necessary.

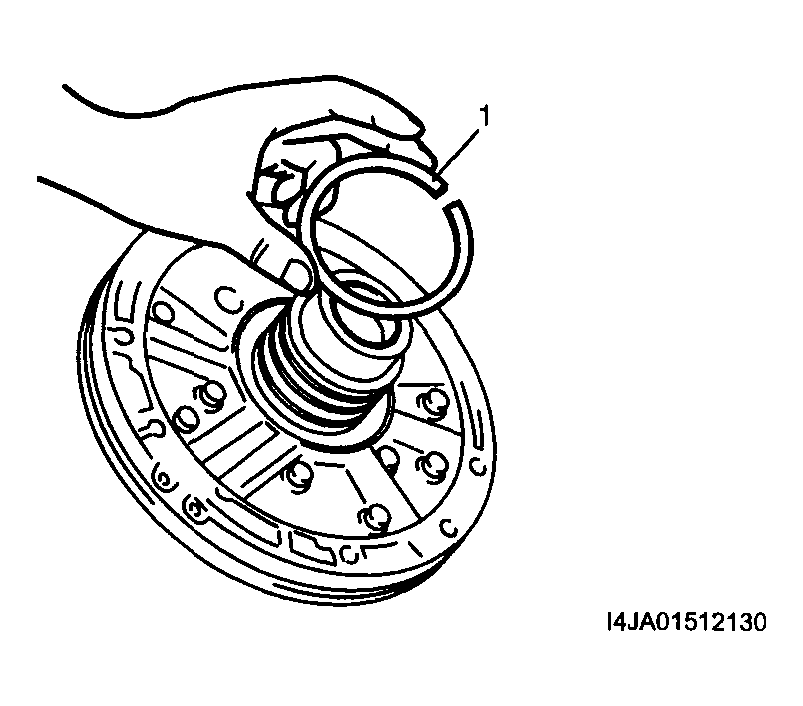

    Fig 2: Removing Clutch Drum Oil Seal Rings
    G04099978Courtesy of SUZUKI OF AMERICA CORP.
  3. Remove stator shaft assembly (1) from oil pump body by removing 14 bolts.

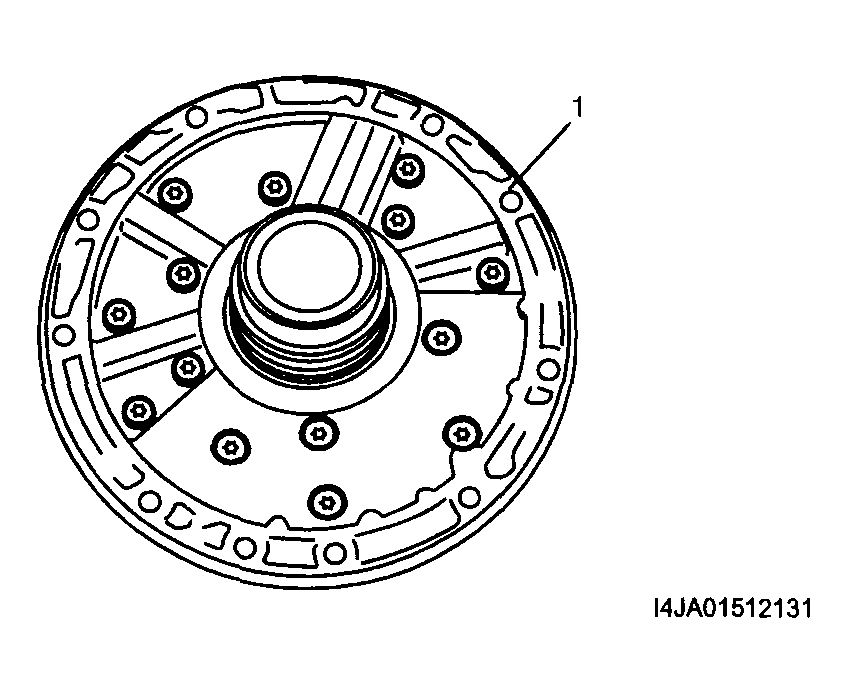

    Fig 3: Removing Stator Shaft Assembly
    G04099979Courtesy of SUZUKI OF AMERICA CORP.
  4. Give marks (1) on drive gear (2) and driven gear (3) by using water-proof paint.
  5. Remove drive gear (2) and driven gear (3) from oil pump body.

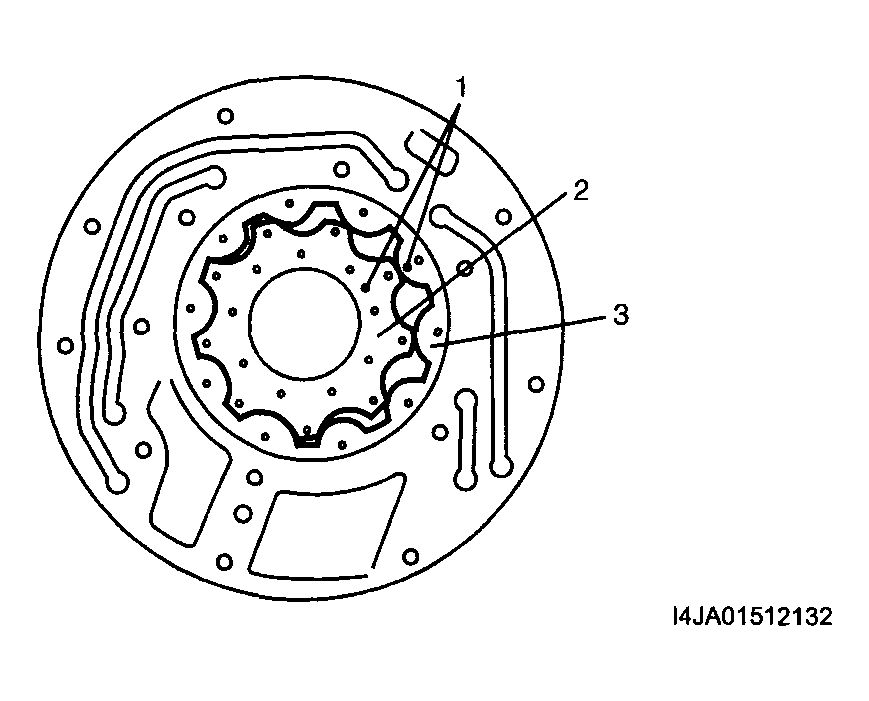

Fig 4: Removing Drive Gear And Driven Gear From Oil Pump Body
G04099980Courtesy of SUZUKI OF AMERICA CORP.
