Electronic Shift Control System Wiring Diagram: Notes

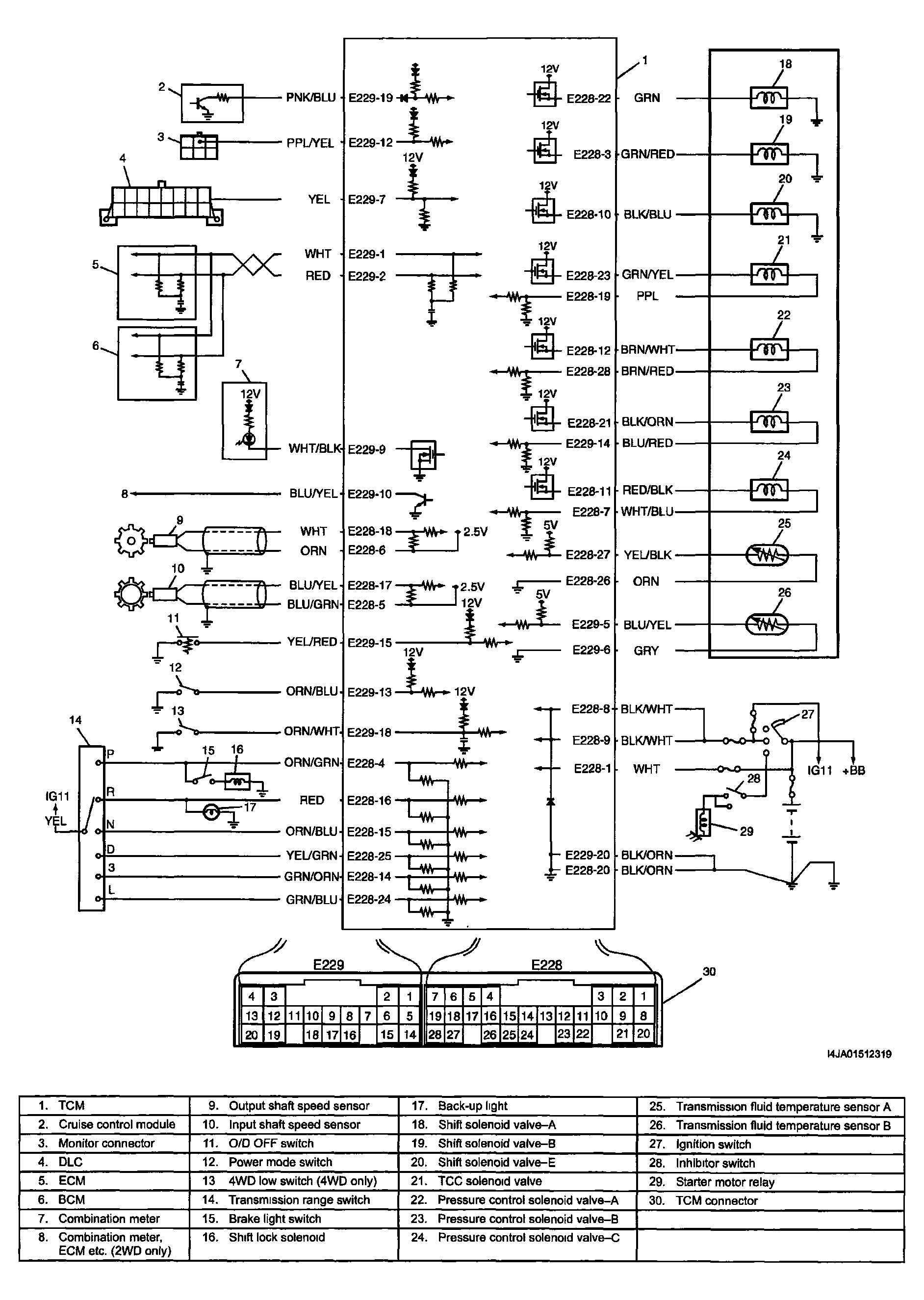

Fig 1: Electronic Shift Control System - Wiring Diagram
G04099784Courtesy of SUZUKI OF AMERICA CORP.
