Electronic Shift Control System Description

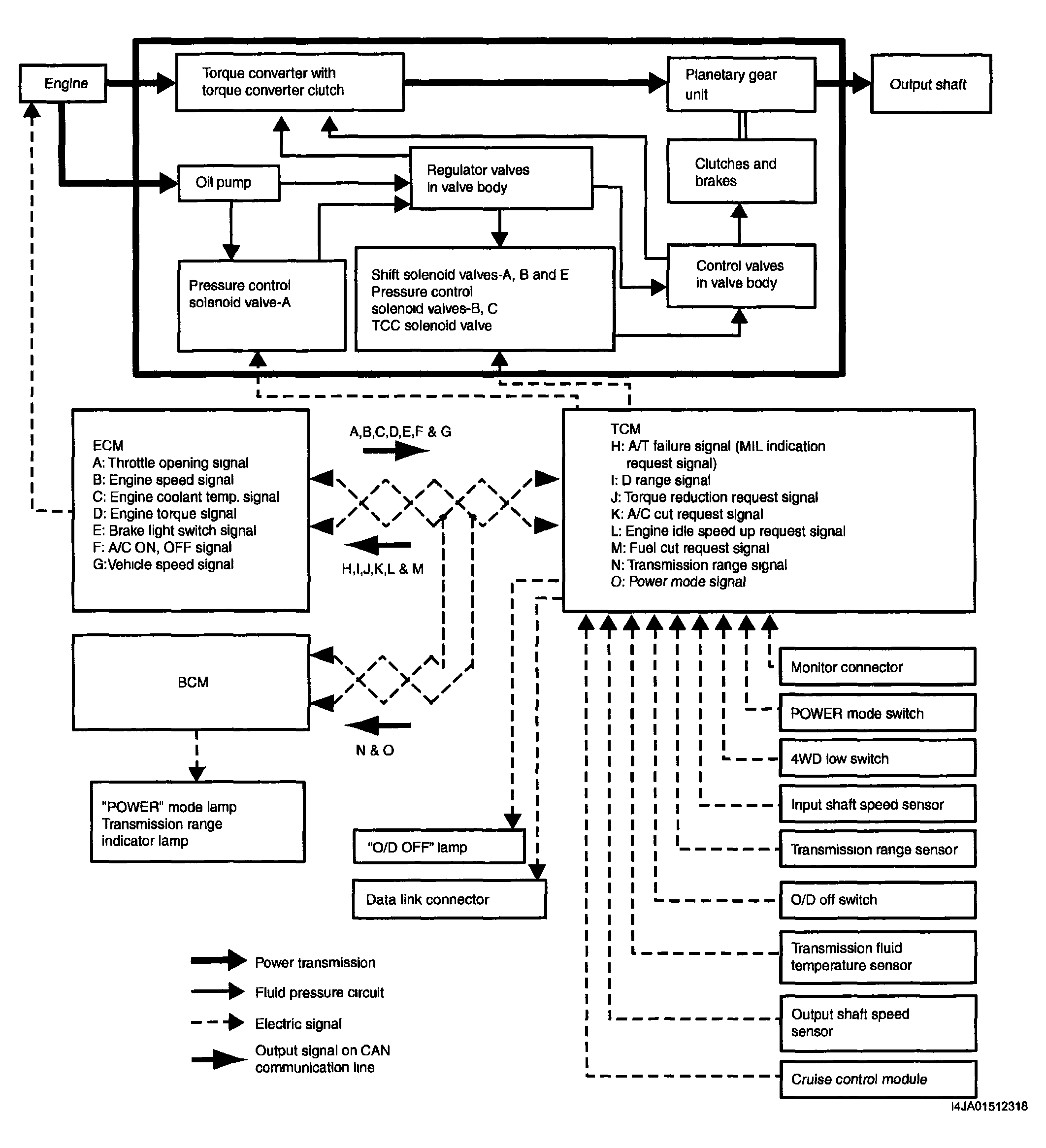

Fig 1: Electronic Shift Control System Description Chart
G04099783Courtesy of SUZUKI OF AMERICA CORP.
